Dell Precision 7560 User Manual

● Phillips screwdriver #0
● Phillips screwdriver #1
● Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and
then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.

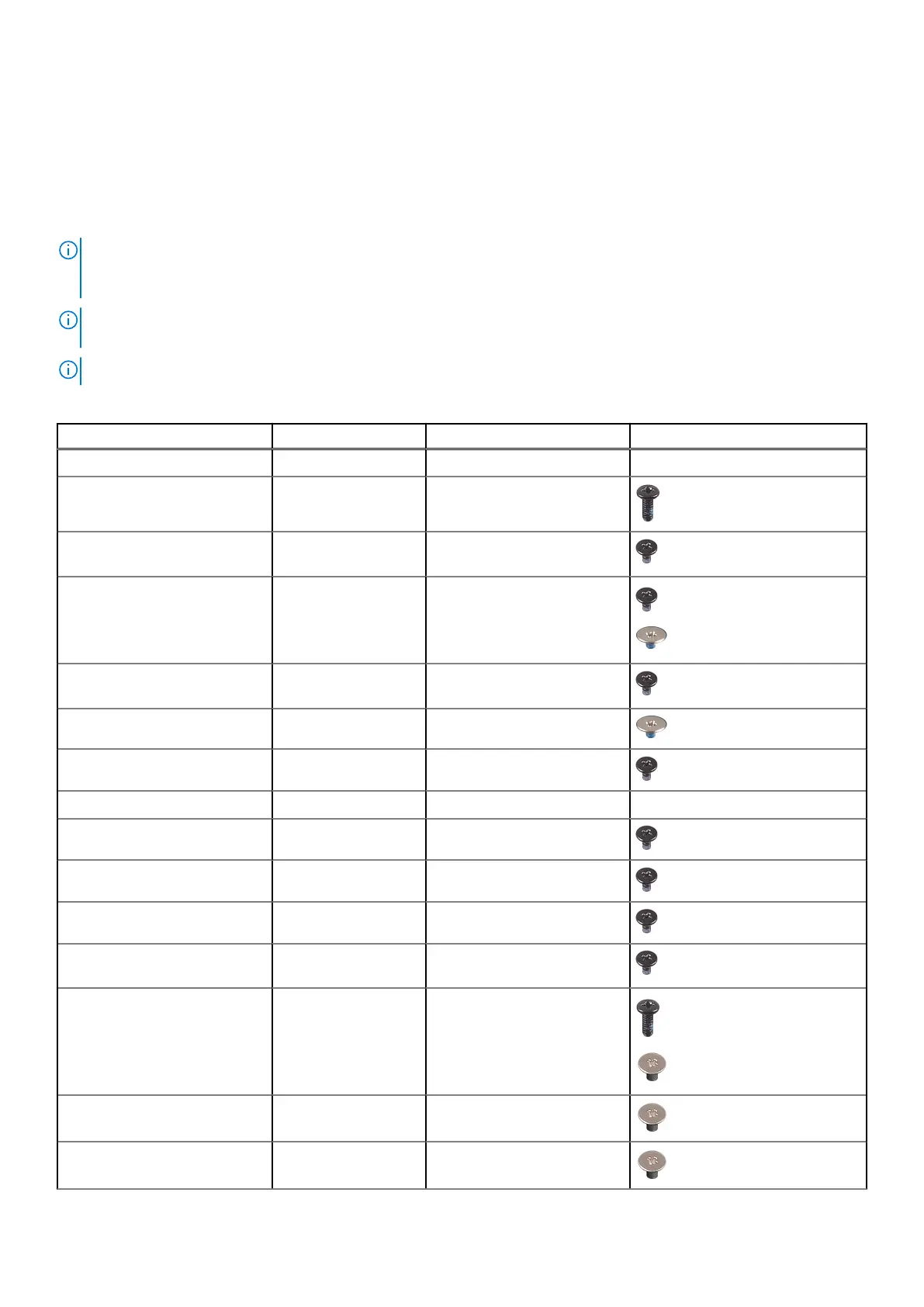

Table 1. Screw list
Component Screw type Quantity Screw image
Base cover Captive screws 8
Battery M2x5 3
M.2 2280 secondary Solid-state
drive (slot 4)
M2x3 2
M.2 2230 primary Solid-state
drive (slot 3 and slot 5)
M2x3
M2x2
2
1
M.2 2280 primary Solid-state
drive (slot 3 and slot 5)
M2x3 2
Keyboard M2x2 7
WWAN M2x3 1
WLAN Captive screw 1
Memory shield M2x3 1
Power-adapter cable bracket M2x3 1
Power button board M2x3 1
Power button assembly with
fingerprint reader cable bracket
M2x3 1
Inner frame
M2x5
M2x2.5
8
9
Smart card reader M2x2.5 2
Touchpad buttons M2x2.5 2
12 Removing and installing components

Dell Precision 7560 Specifications

General

Processor	Up to 11th Gen Intel Core i9-11950H
Graphics	NVIDIA RTX A5000, A4000, A3000, A2000
Display	15.6" FHD (1920x1080) or UHD (3840x2160)
Memory	Up to 128GB DDR4 3200MHz
Storage	Up to 8TB (2x 4TB) NVMe SSD
Ports	2x Thunderbolt 4, HDMI 2.1, SD card reader
Battery	6-cell 95Whr
Operating System	Windows 10 Pro, Ubuntu
Weight	Starting at 2.45 kg (5.4 lbs)
Wireless	Bluetooth 5.2
Camera	720p HD
