About this task

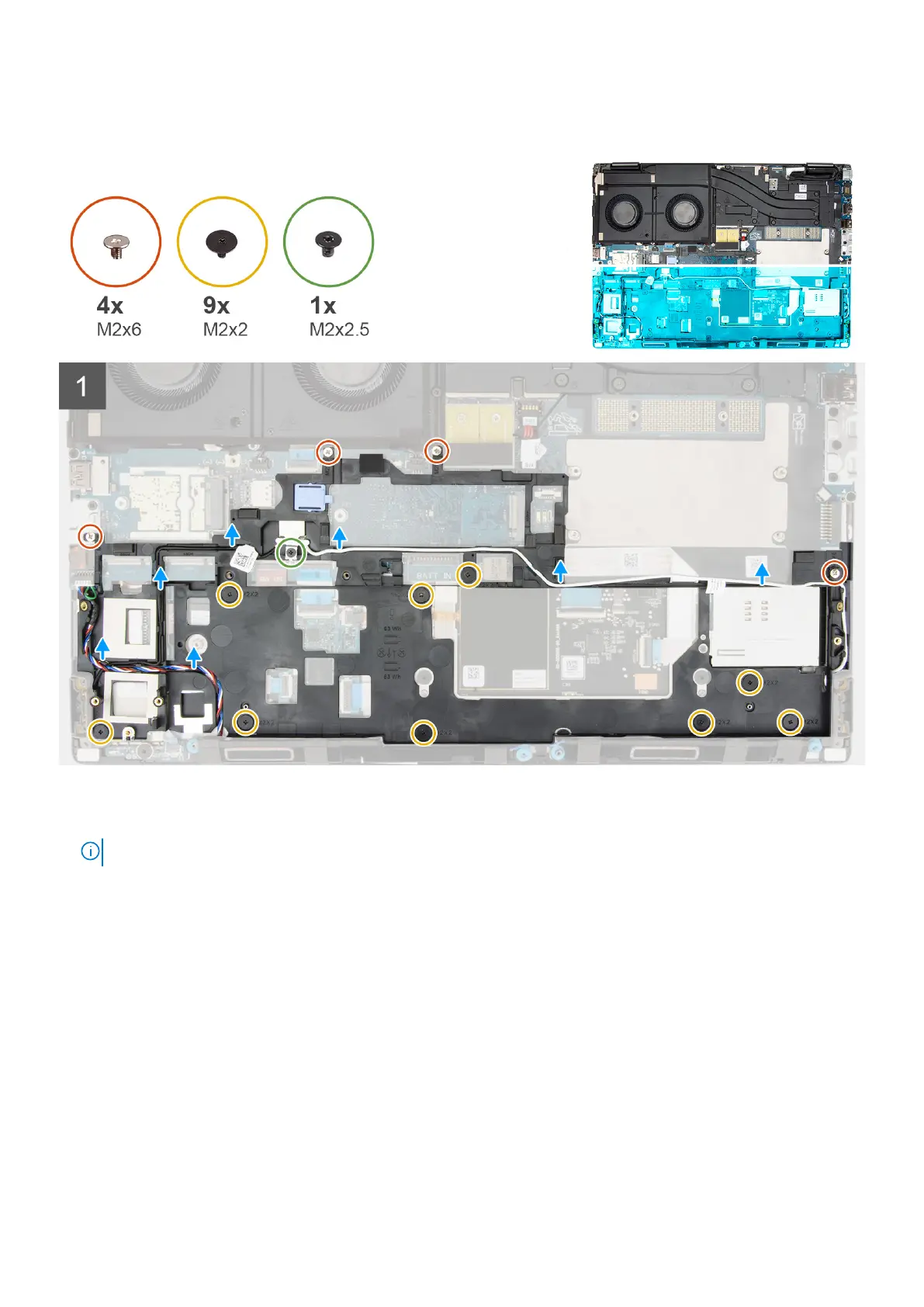

The figure indicates the location of the inner frame and provides a visual representation of the removal procedure.
Steps
1. Remove the (M2x2.5) screw that secures the WLAN bracket in place.
NOTE: For configs with 93 Wh battery, the SSD frame must be first removed before the inner frame
