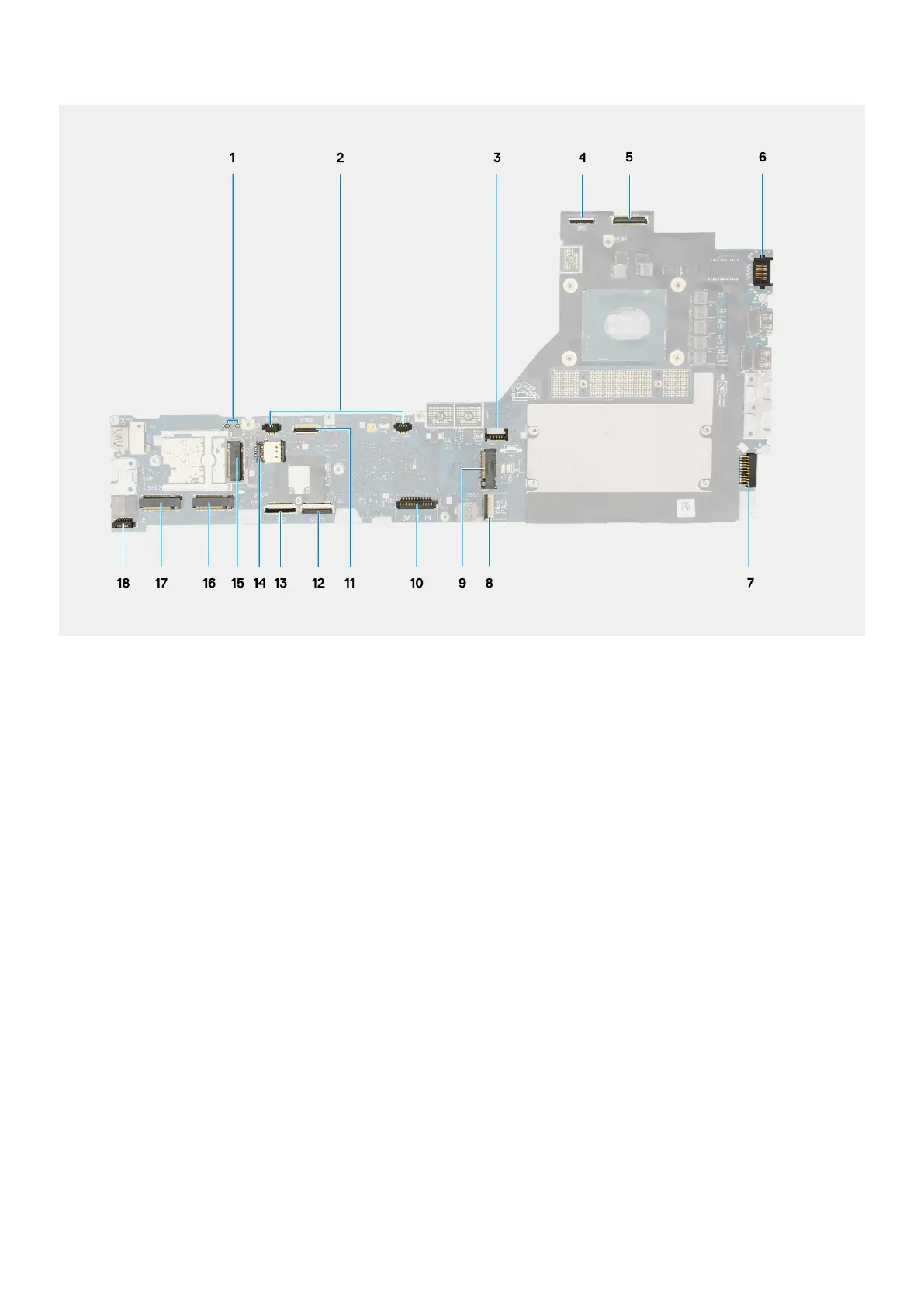

1. WWAN (Darwin) antenna connectors
2. Fan cable connectors
3. GPU card cable connector
4. IR camera cable connector
5. Display cable connector
6. LAN port
7. Power adapter cable connector
8. Touchpad cable connector
9. M.2 SSD slot 3 connector
10. Battery cable connector
11. Power button board FFC connector
12. USH board cable connector
13. SD card reader FPC cable connector
14. SIM card slot
15. WWAN card connector
16. M.2 SSD slot 4 connector
17. M.2 SSD slot 2 connector
18. Speaker cable connector
