Chassis
This chapter illustrates the multiple chassis views along with the ports and connectors and also explains the FN hot key combinations.
Topics:
• Front open view
• Left view
• Right view
• Palmrest view
• Back view
• Bottom view
• Hot key definition

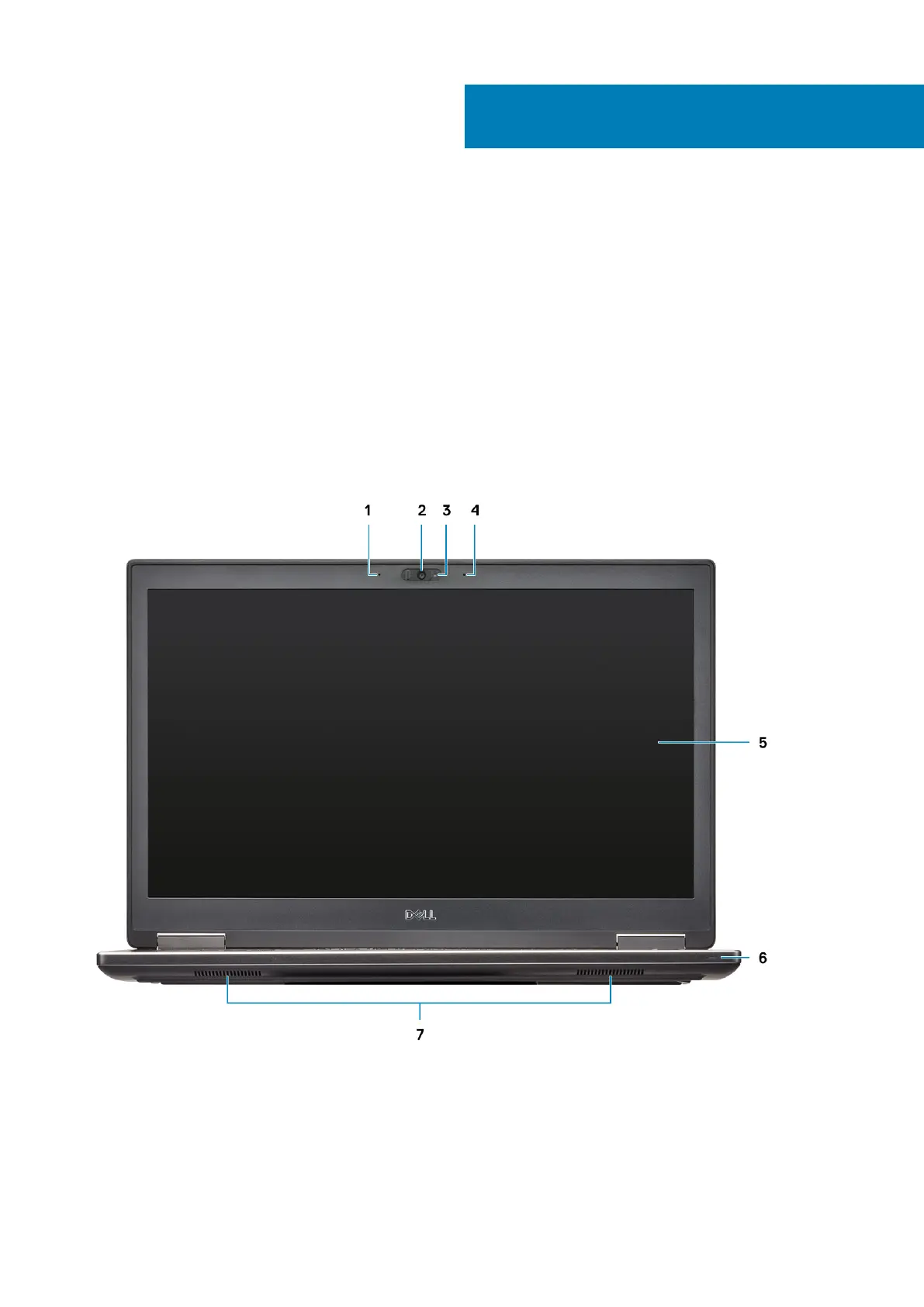

Front open view
1. Microphone (Optional)
2. Camera-with shutter (Optional)
3. Camera-status light (Optional)
4. Microphone (Optional)
5. Display
6. Battery status light
2
