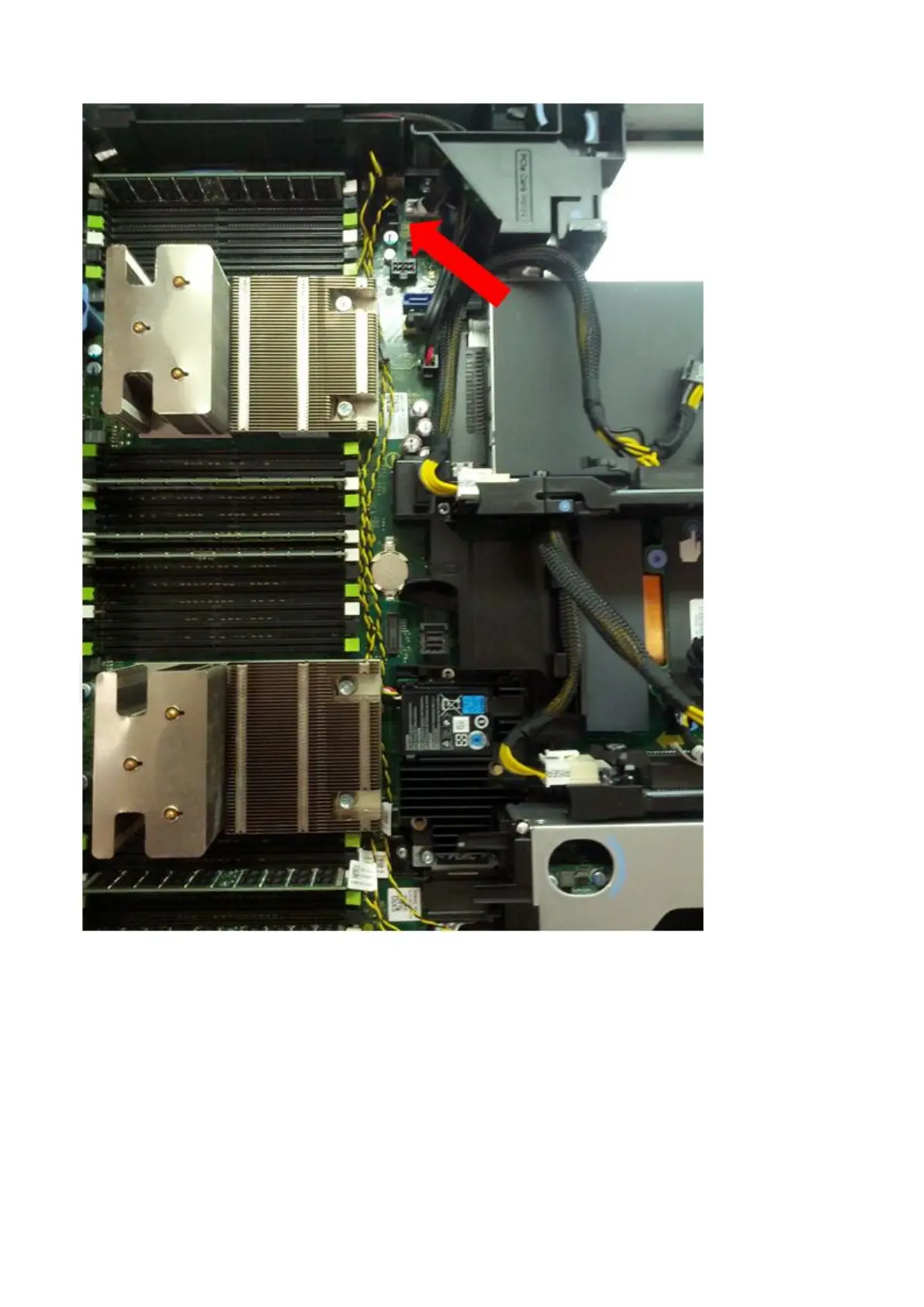

11. Daisy-chain the remaining connectors by connecting the 2-pin female connector on the additional cables to the male
connector on the previous cable.
12. Reinstall the air baffle over the CPU heat sinks
NVIDIA Quadro K4200 Graphics Cards Installation
This section describes the installation of NVIDIA graphics cards into the system.
The host cards should have the low-profile PCI card brackets installed to fit into riser 1 on the Dell Precision Rack 7910.
Disassembly and reassembly
81
