Dell Precision Mobile Workstation M4700 - Removing the Expresscard Module

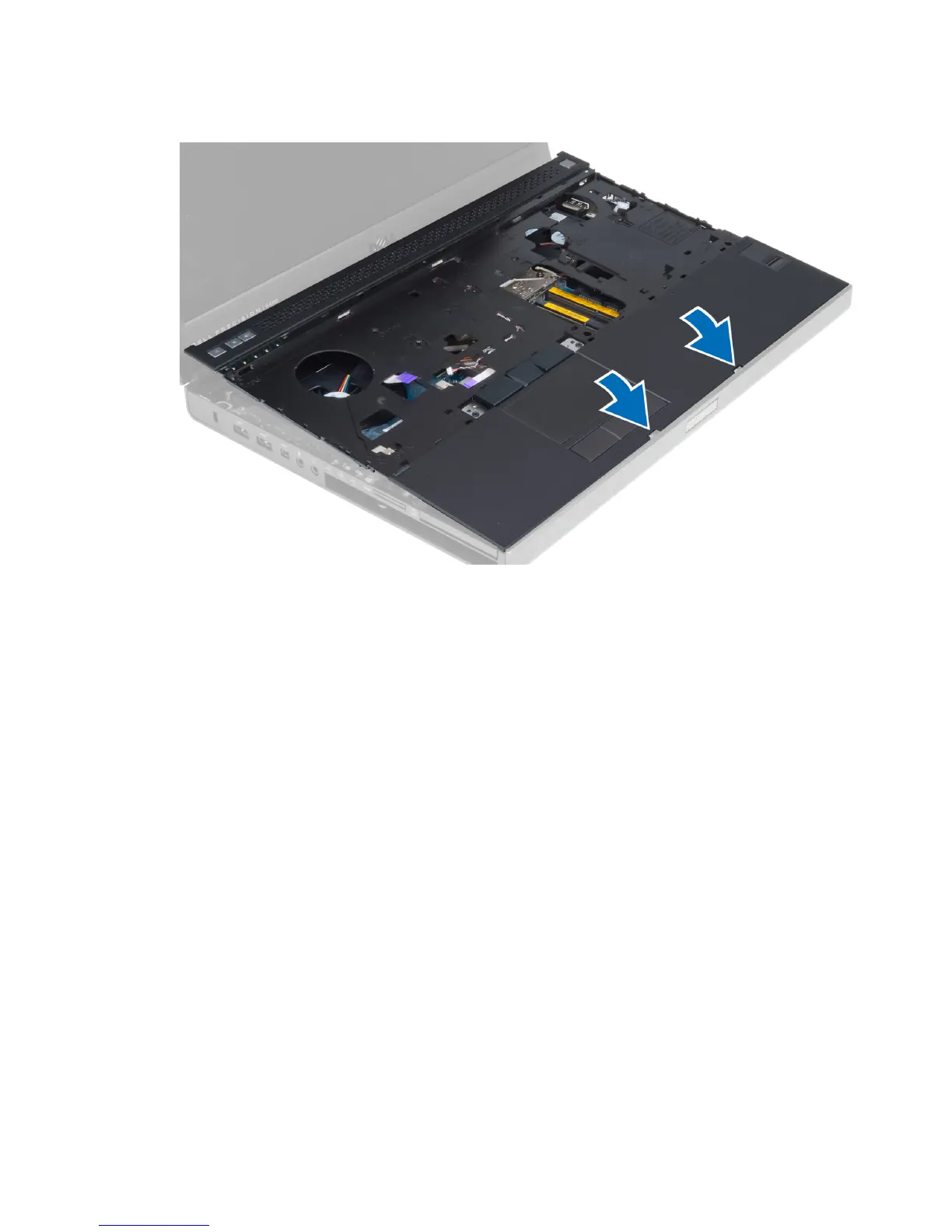

2. Press on the positions indicated until it snaps in place.
3. Connect the following cables to the system board:
a) power button
b) touchpad
c) speaker
d) media board
e) fingerprint
f) RFID
4. Tighten the screws to secure the palmrest to the front of the computer.
5. Tighten the screws to secure the palmrest to the base of the computer.
6. Install the:
a) hard drive
b) optical drive
c) keyboard
d) keyboard trim
e) base cover
f) battery
7. Follow the procedures in After Working Inside Your Computer .
Removing the ExpressCard Module
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) ExpressCard
b) battery
33
