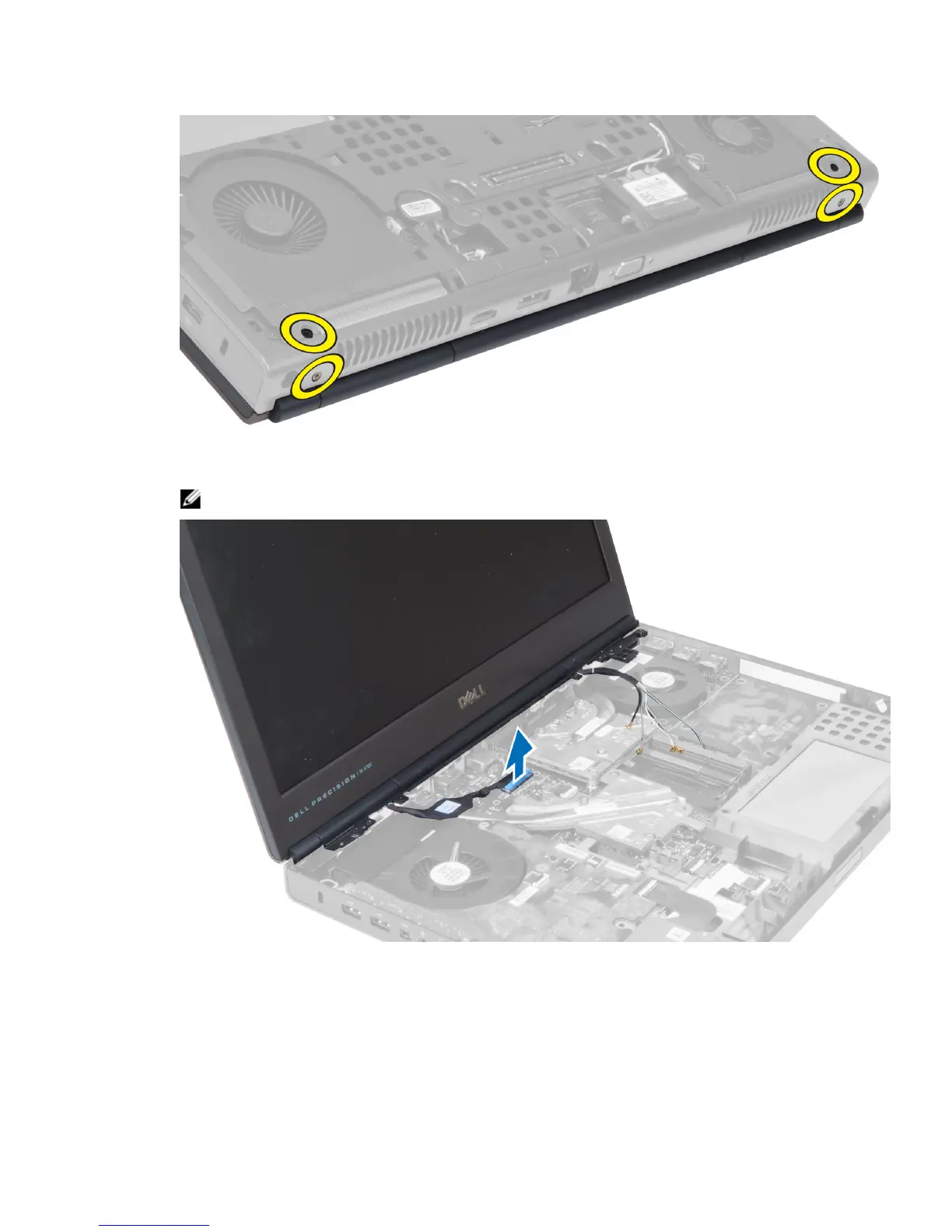

6. Remove the screws that secure the low-voltage differential signalling (LVDS) cable bracket. Remove the LVDS
cable bracket and disconnect the LVDS cable and camera cable from the system board.
NOTE: LVDS cable is available in M4700 without the bracket. LVDS cable bracket is available only in M6700.
7. Remove the screws that secure the display assembly to the computer. Remove the display assembly from the
computer.
