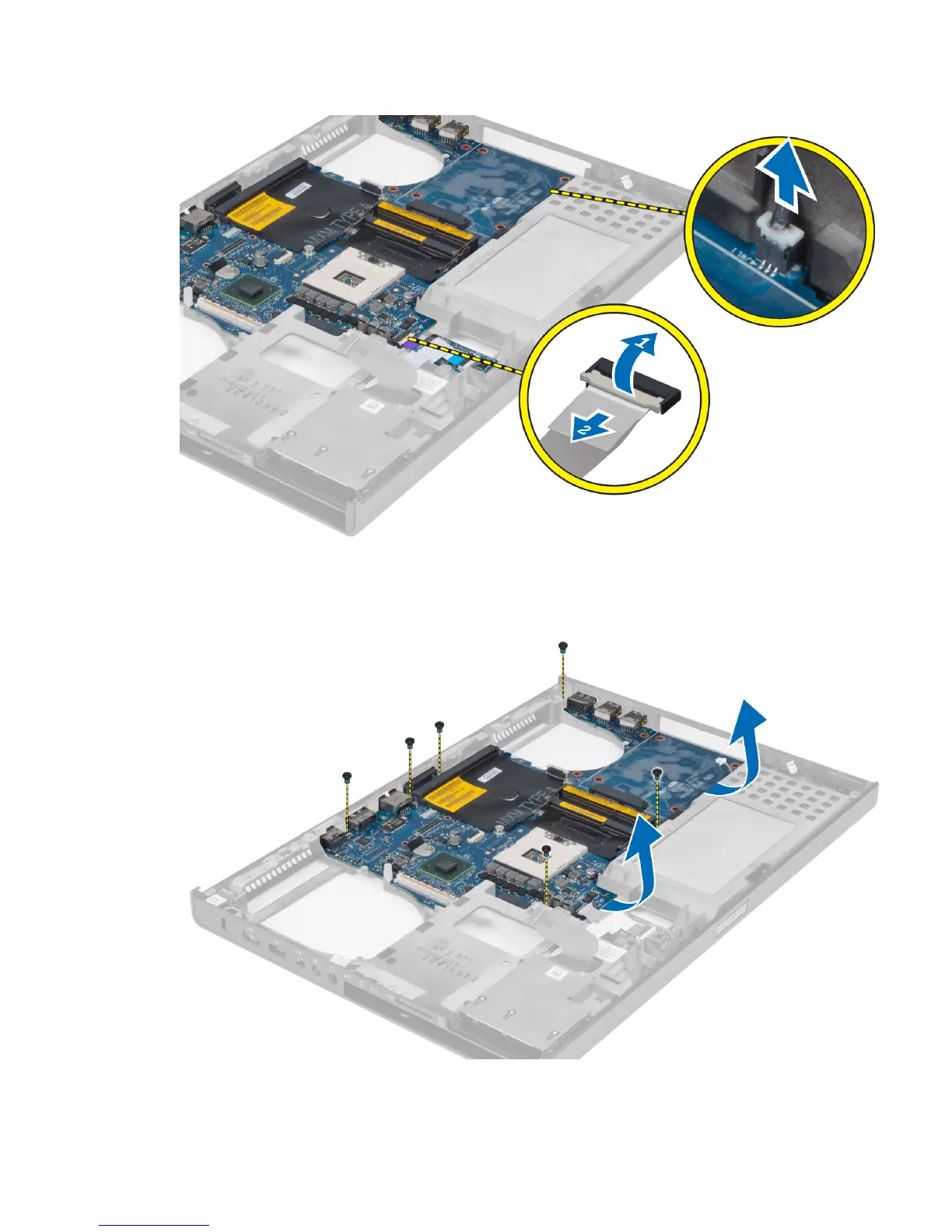

6. Disconnect the USH cable.
7. Disconnect the wireless cable.
8. Remove all mini-cards (if available).
9. Remove the screws that secure the system board in place and lift the top edge of the system board to a 20° angle.
