3. Expand the failed storage system entry.
4. In the Hardware Alerts area, find the hardware alert that identifies the enclosure with the failed
power supply.

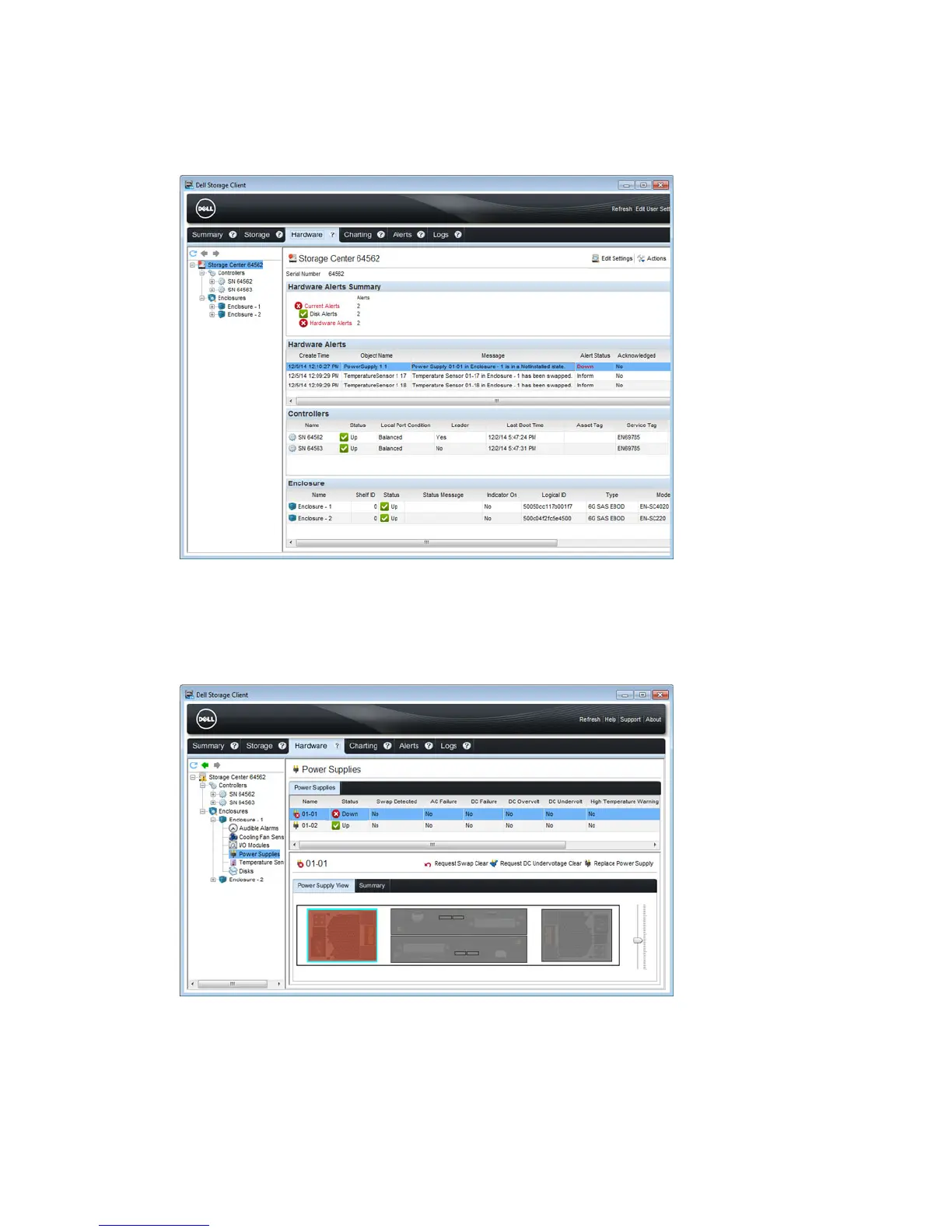

Figure 10. Hardware Alert Identifying the Enclosure with the Failed Power Supply
5. In the Hardware tab navigation pane, expand the enclosure identified in the previous step and select
Power Supplies. The status of each power supply is displayed in the Power Supplies tab.
6. Select the failed power supply. The location of the failed power supply is displayed in the Power
Supply View tab.
Figure 11. Rear View of the Enclosure Showing the Failed Power Supply
Replacing SCv2000/SCv2020 Components
21
