Item Name Icon Description
6 Power switch (2) — Controls power for the storage system. Each power supply has
one switch.
SCv2080 Storage System Storage Controller Features and Indicators
The SCv2080 storage system includes two storage controllers in two interface slots.
SCv2080 Storage System Storage Controller with Fibre Channel Front-End Ports
The following figures show the features and indicators on a storage controller with Fibre Channel front-
end ports.

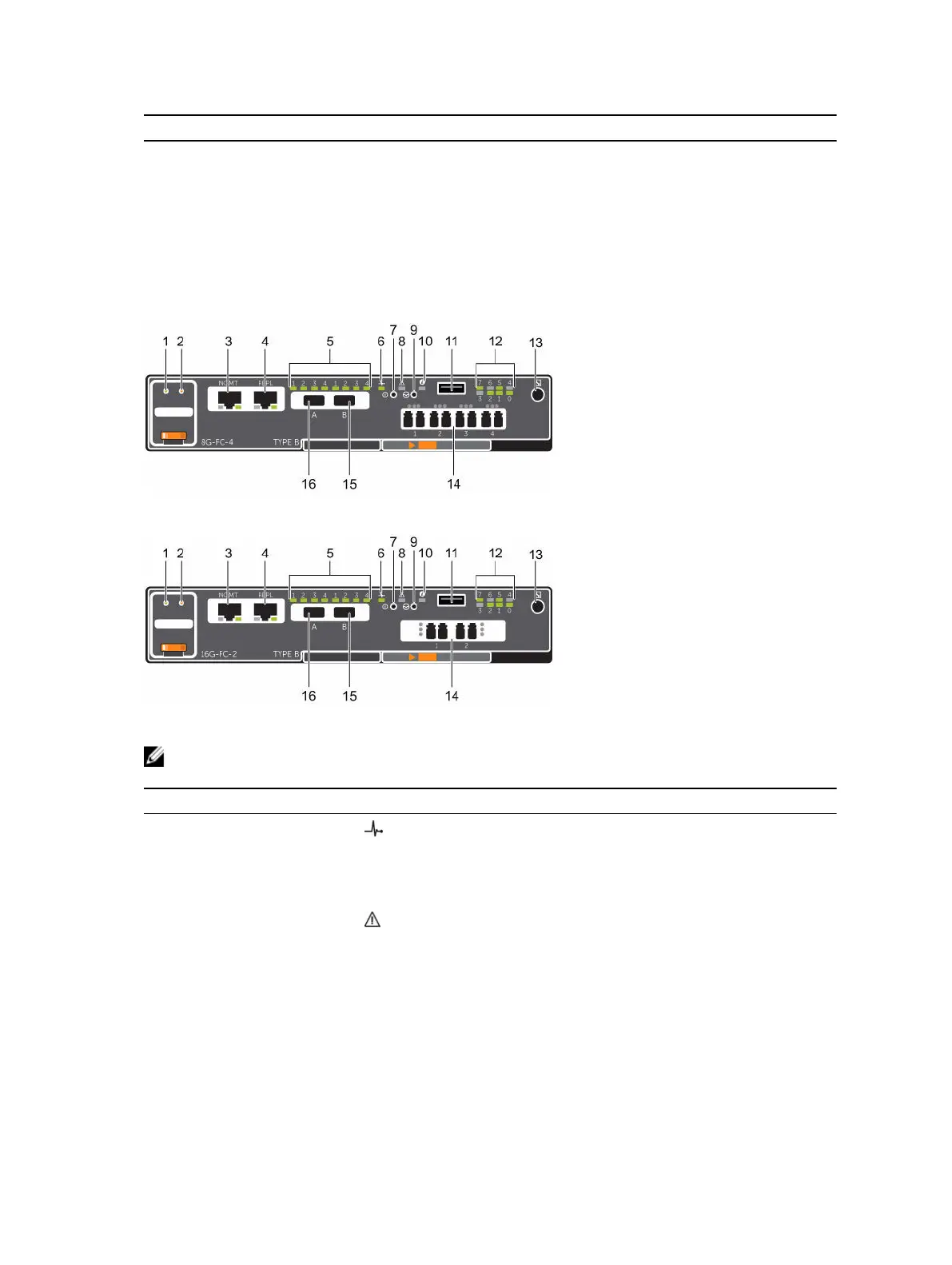

Figure 3. SCv2080 Storage System Storage Controller with Four 8 Gb Fibre Channel Front-End Ports
Figure 4. SCv2080 Storage System Storage Controller with Two 16 Gb Fibre Channel Front-End Ports
NOTE: Storage Center 6.7.3 or later is required for SCv2080 storage systems with 16 Gb Fibre
Channel front-end ports.
Item Control/Feature Icon Description
1 Battery status indicator
• Blinking green (on 0.5 sec. / off 1.5 sec.): Battery heartbeat
• Fast blinking green (on 0.5 sec. / off 0.5 sec.): Battery is
charging
• Steady green: Battery is ready
2 Battery fault indicator
• Off: No faults
• Blinking amber: Correctable fault detected
• Steady amber: Uncorrectable fault detected; replace battery
3 MGMT port (Slot 3/Port
1)
— Ethernet/iSCSI port that is typically used for storage system
management and access to the BMC
About the SCv2080 Storage System
11
