Item Control/Feature Icon Description
• All off: No power
• All on: Booting up
• Blinking amber: 4 Gbps activity
• Blinking green: 8 Gbps activity
• Blinking yellow: 16 Gbps activity
• Blinking amber and yellow: Beacon
• All blinking (simultaneous): Firmware initialized
• All blinking (alternating): Firmware fault
15 Mini-SAS port B (Slot 2/
Port 2)
Back-end expansion port B
16 Mini-SAS port A (Slot 2/
Port 1)
Back-end expansion port A
SCv2080 Storage System Storage Controller with iSCSI Front-End Ports

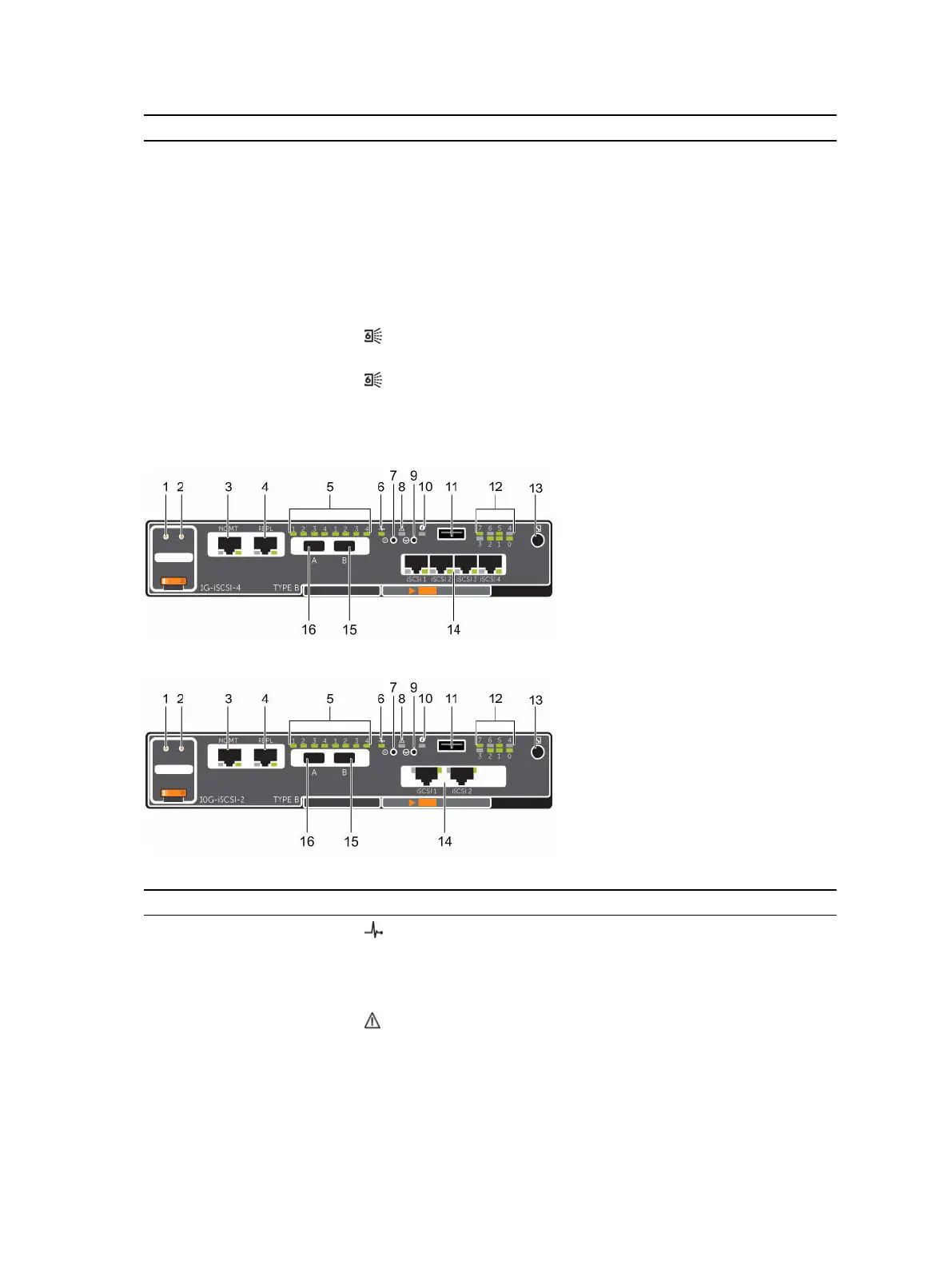

The following figures show the features and indicators on a storage controller with iSCSI front-end ports.
Figure 5. SCv2080 Storage System Storage Controller with Four 1 GbE iSCSI Front-End Ports
Figure 6. SCv2080 Storage System Storage Controller with Two 10 GbE iSCSI Front-End Ports
Item Control/Feature Icon Description
1 Battery status indicator
• Blinking green (on 0.5 sec. / off 1.5 sec.): Battery heartbeat
• Fast blinking green (on 0.5 sec. / off 0.5 sec.): Battery is
charging
• Steady green: Battery is ready
2 Battery fault indicator
• Off: No faults
• Blinking amber: Correctable fault detected
• Steady amber: Uncorrectable fault detected; replace battery
About the SCv2080 Storage System
13
