Item Control/Feature Icon Description
7 Recessed power off
button
Not currently used
8 Storage controller
module fault
Off: No faults
Steady amber: Firmware has detected an error
Blinking amber: Storage controller is performing POST
9 Recessed reset button Not currently used
10 Identification LED
Off: Identification disabled
Blinking blue (for 15 sec.): Identification is enabled
Blinking blue (continuously): Storage controller shut down
to the Advanced Configuration and Power Interface (ACPI)
S5 state
11 USB port One USB 3.0 connector
12 Diagnostic LEDs (8)
Green LEDs 0–3: Low byte hex POST code
Green LEDs 4–7: High byte hex POST code
13 Serial port (3.5 mm mini
jack)
Not for customer use
14 Four Mini-SAS High
Density (HD) ports (Slot
1/Port 1, Slot 1/Port 2,
Slot 1/Port 3, and Slot 1/
Port 4)
Front-end connectivity ports
NOTE: The mini-SAS HD ports are for front-end
connectivity only and cannot be used for back-end
expansion.
15 Mini-SAS port B (Slot 2/
Port 2)
Back-end expansion port B
16 Mini-SAS port A (Slot 2/
Port 1)
Back-end expansion port A
SCv2080 Storage System Cooling Fan Module Features and Indicators
SCv2080 Storage Systems include five cooling fan modules in five interface slots.

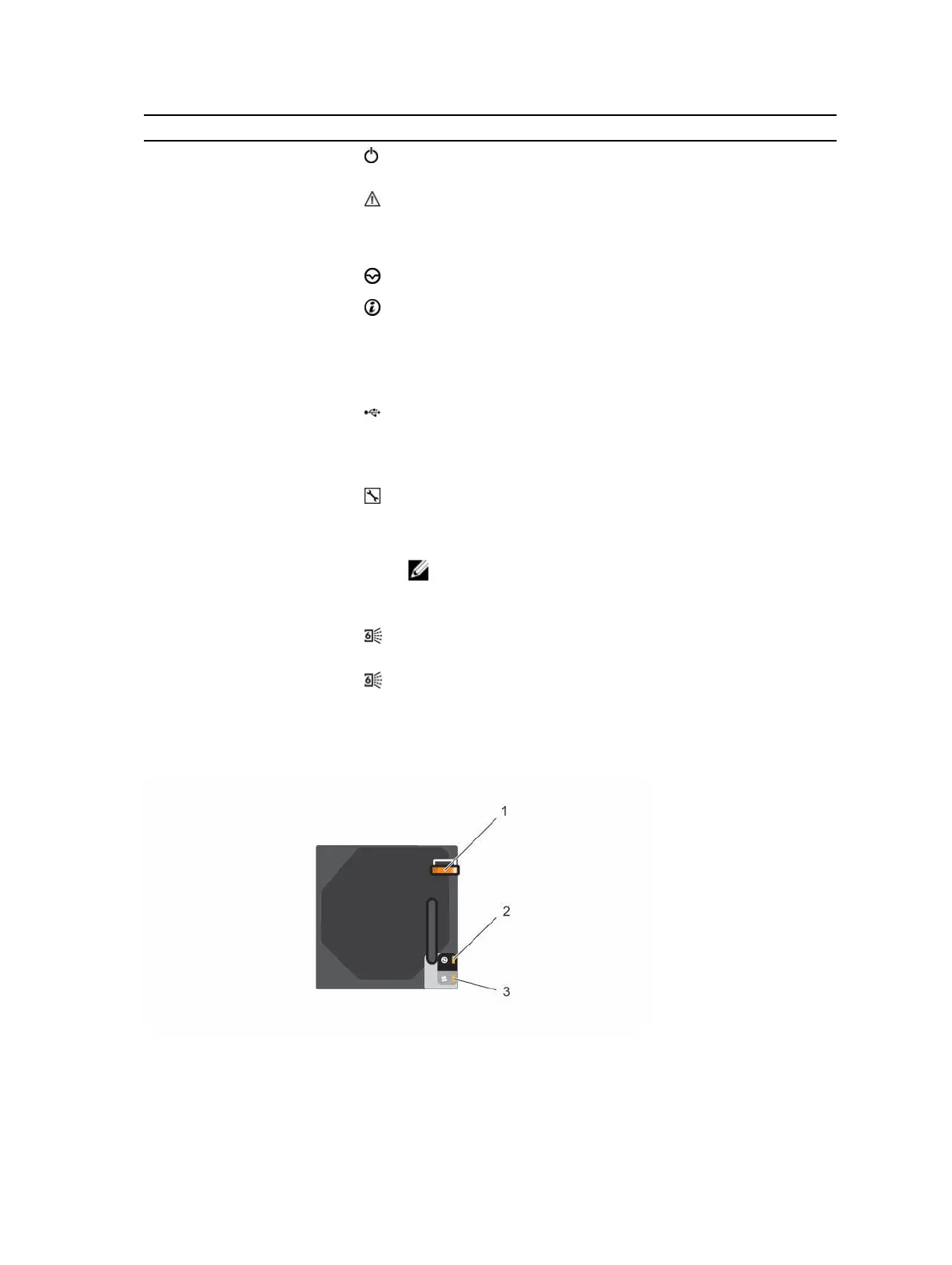

Figure 8. SCv2080 Storage System Cooling Fan Module Features and Indicators
16
About the SCv2080 Storage System
