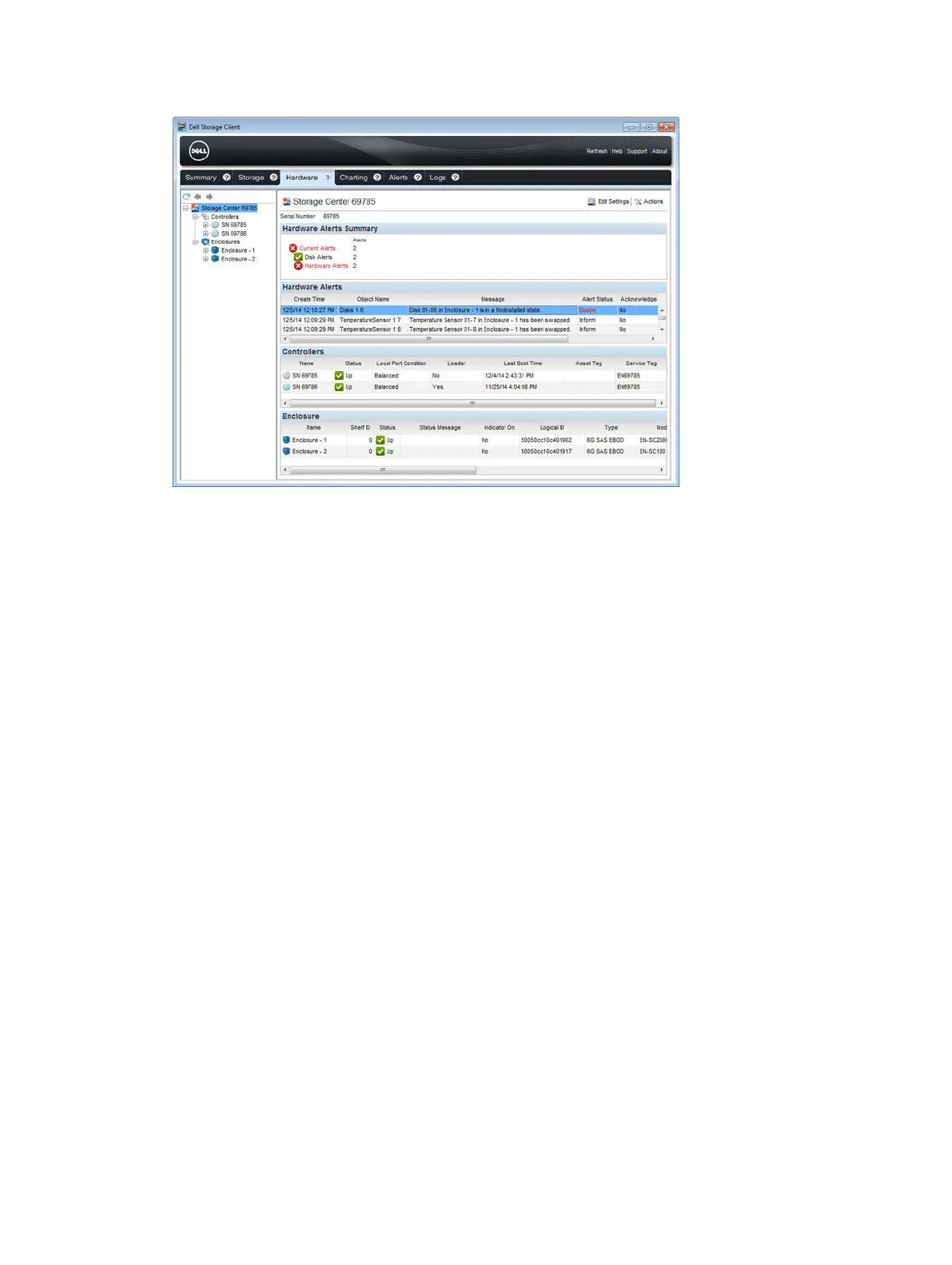

Figure 19. Hardware Alert Identifying the Enclosure with the Failed Hard Drive
4. In the Hardware tab navigation pane, expand the enclosure identified in the previous step.
5. Select Disks. The status of each disk drawer is displayed in the Disks tab.
6. Expand the drawer with the failed hard drive and then select the failed hard drive. The location of the
failed hard drive is displayed in the Disk View tab.
30
Replacing SCv2080 Storage System Components
