Dell SE198WFP - General Monitor Specifications; Flat Panel Specifications

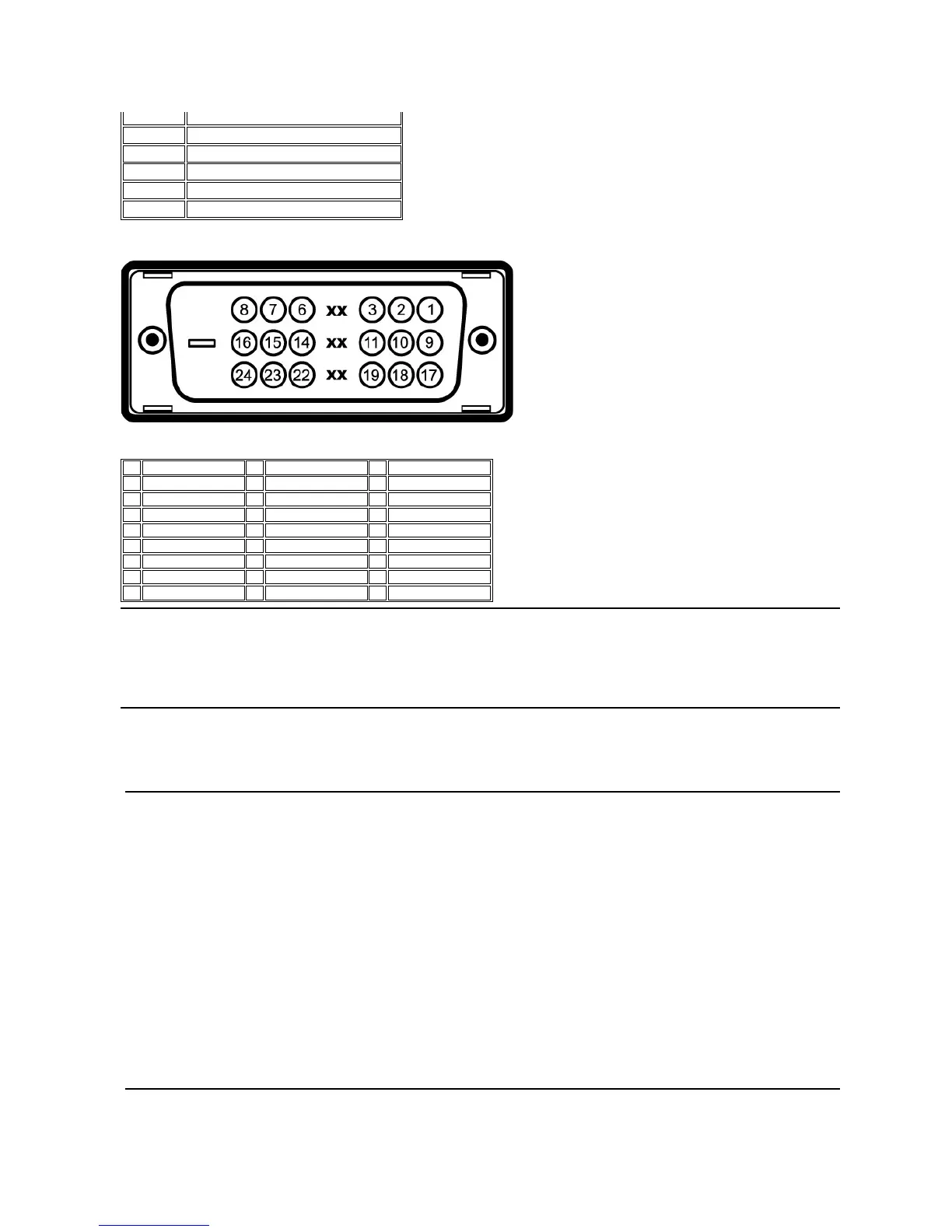

24-pin Digital-only DVI Connector
Note: Pin 1 is at the top right.
Plug and Play Capability
You can install the monitor in any Plug and Play-
compatible system. The monitor automatically provides the computer with its Extended Display Identification Data (EDID)
using Display Data Channel (DDC) protocols so that the system can configure itself and optimize the monitor settings. Most monitor installations are automatic. You can
select different settings if required.
10
GND-sync
11
GND
12
DDC data
13
H-sync
14
V-sync
15
DDC clock
Pin
Signal Assignment
Pin
Signal Assignment
Pin
Signal Assignment
1
T.M.D.S. Data 2-
9
T.M.D.S. Data 1-
17
T.M.D.S. Data 0-
2
T.M.D.S. Data 2+
10
T.M.D.S. Data 1+
18
T.M.D.S. Data 0+
3
T.M.D.S. Data 2 Shield
11
T.M.D.S. Data 1 Shield
19
T.M.D.S. Data 0 Shield
4
No Pin
12
No Pin
20
No Pin
5
No Pin
13
No Pin
21
No Pin
6
DDC Clock
14
+5V Power
22
T.M.D.S. Clock Shield
7
DDC Data
15
Ground (for +5V)
23
T.M.D.S. Clock +
8
No Connect
16
Hot Plug Detect
24
T.M.D.S. Clock -
General

Model number
SE198WFP
Flat Panel

Screen type
Active matrix - TFT LCD
Screen dimensions
19 inches wide(19-inch wide viewable image size)
Preset display area:

Horizontal
408mm / 16.1inches (minimum)
Vertical
255mm / 10.0 inches (minimum)
Pixel pitch
~ 0.2850mm
Viewing angle
160°(vertical)typ,160°(horizontal)typ
Luminance output
300 CD/m ²(typ)
Contrast ratio
1000 to 1 (typ)
Faceplate coating
Antiglare with hard-coating 3H
Backlight
CCFL (4) edgelight system
Response Time
5ms typical

