Dell SP2208W FP - Page 6

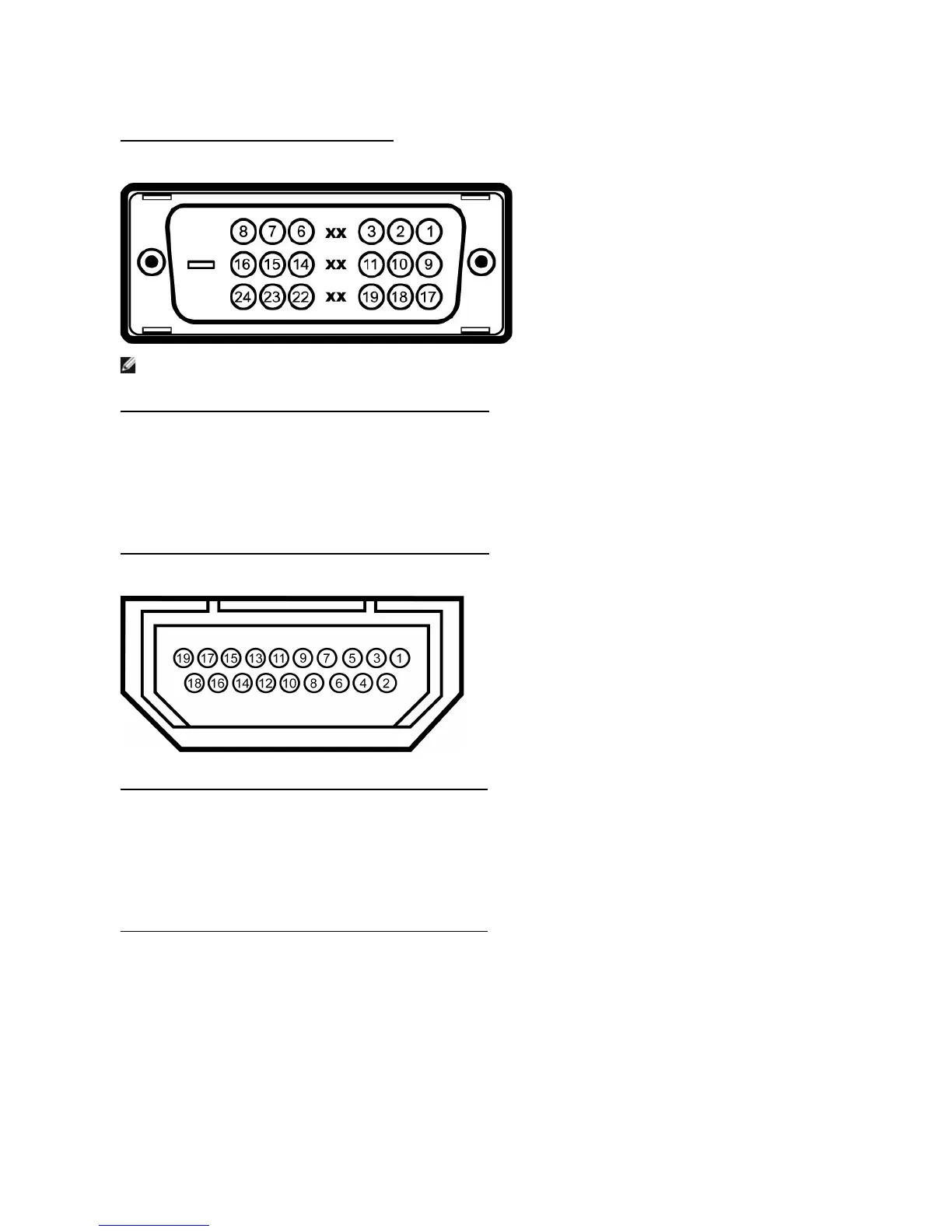

24-pin Digital-only DVI Connector
NOTE: Pin 1 is at the top right.
The following table shows pin assignments in the DVI connector:
19-pinHDMIConnector
The following table shows pin assignments in the HDMI connector:

14
V-sync
15
DDC clock
Pin
Signal Assignment
Pin
Signal Assignment
Pin
Signal Assignment
1
T.M.D.S. Data 2-
9
T.M.D.S. Data 1-
17
T.M.D.S. Data 0-
2
T.M.D.S. Data 2+
10
T.M.D.S. Data 1+
18
T.M.D.S. Data 0+
3
T.M.D.S. Data 2 Shield
11
T.M.D.S. Data 1 Shield
19
T.M.D.S. Data 0 Shield
4
No Connect
12
No Connect
20
No Connect
5
No Connect
13
No Connect
21
No Connect
6
DDC Clock
14
+5V Power
22
T.M.D.S. Clock Shield
7
DDC Data
15
Self-Test
23
T.M.D.S. Clock +
8
No Connect
16
Hot Plug Detect
24
T.M.D.S. Clock -
Pin
Signal Assignment
Pin
Signal Assignment
Pin
Signal Assignment
1
T.M.D.S. Data 2-
9
T.M.D.S. Data 0-
17
DDC/CEC Ground
2
T.M.D.S. Data 2 Shield
10
T.M.D.S. Clock +
18
+5V Power
3
T.M.D.S. Data 2+
11
T.M.D.S. Clock Shield
19
Hot Plug Detect
4
T.M.D.S. Data 1+
12
T.M.D.S. Clock -


5
T.M.D.S. Data 1 Shield
13
CEC


6
T.M.D.S. Data 1-
14
Reserved(N.C. on device)


7
T.M.D.S. Data 0+
15
SCL


8
T.M.D.S. Data 0 Shield
16
SDA


