b. battery.
c. heat sink.
d. WLAN card.

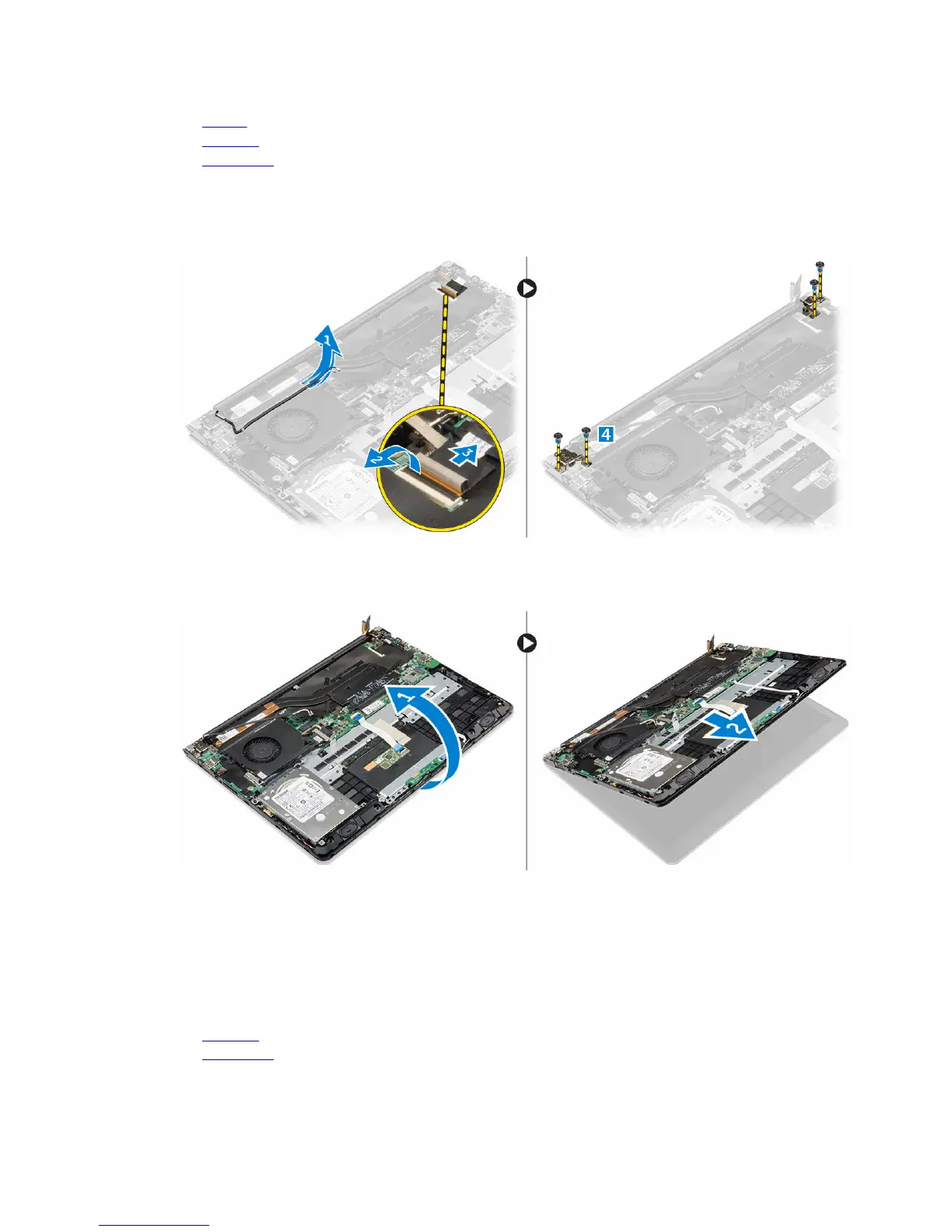

3. To remove the display assembly:
a. Lift the WLAN connector cables from the chassis. [1]
b. Disconnect the display cable from the system board. [2] [3]
c. Remove the screws that secure the display hinges to the computer chassis. [4]
4. To remove the display:
a. Lift the computer chassis.
b. Lift the computer chassis from the display.
Installing the Display Assembly
1. Align the display assembly with the display hinges of the computer chassis.
2. Tighten the screws that secure the display hinges.
3. Connect the display cable to the connector on the system board.
4. Install the:
a. heat sink.
b. WLAN card.
