Dell Vostro 1440 - Removing The Audio Board

Removing The Audio Board 13
1. Follow the procedures in Before Working On Your Computer .
2. Remove the
battery .
3. Remove the keyboard .
4. Remove the palm rest .

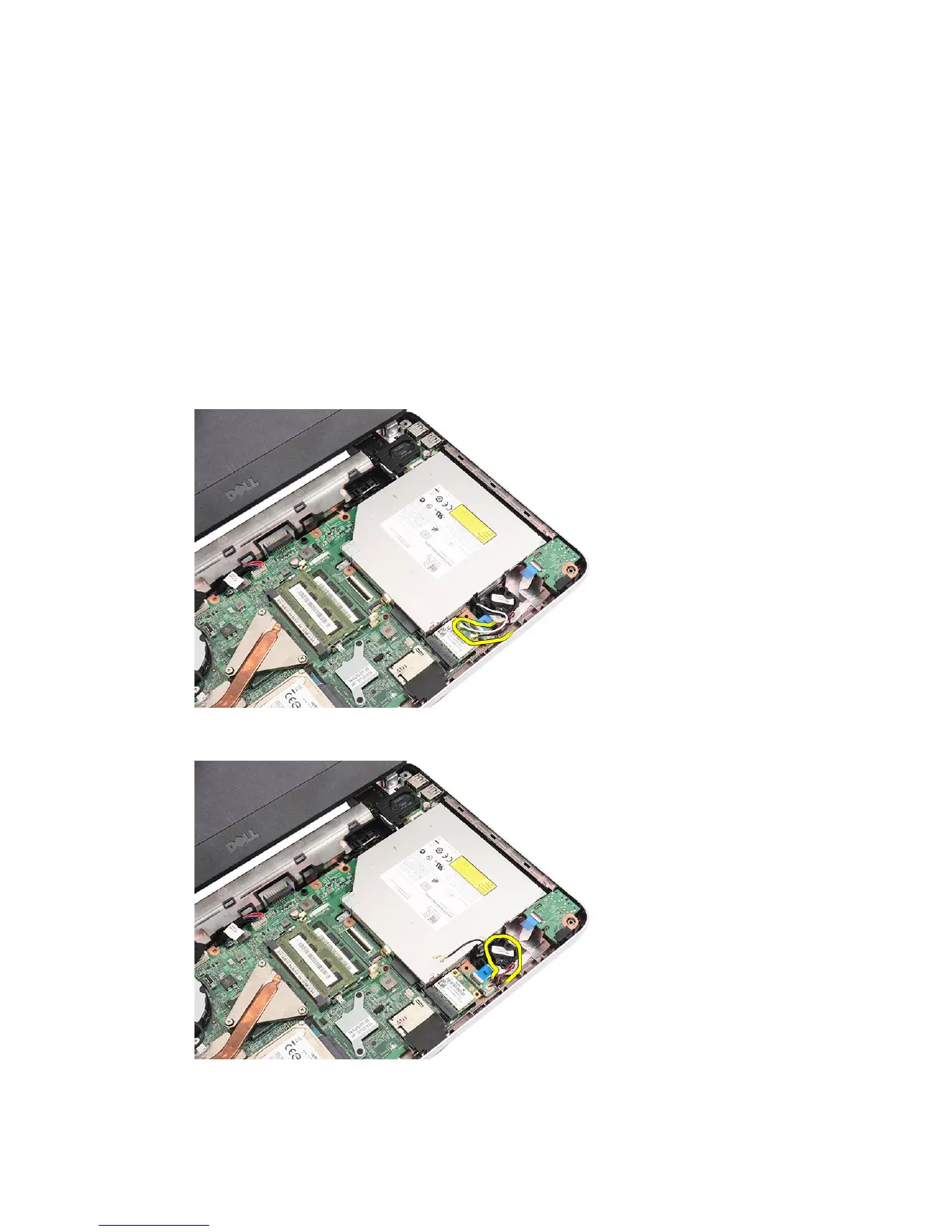

5. Disconnect the WLAN card antennae hindering access to the audio board
cable.
6. Lift up and remove the coin-cell battery from its compartment.
7. Disconnect the audio board cable from the system board.
