Dell Vostro 1440 - Removing The Display Assembly

Removing The Display Assembly 19
1. Follow the procedures in Before Working On Your Computer .
2. Remove the
battery .
3. Remove the hinge cover .
4. Remove the keyboard .
5. Remove the optical drive .
6. Remove the
palm rest .

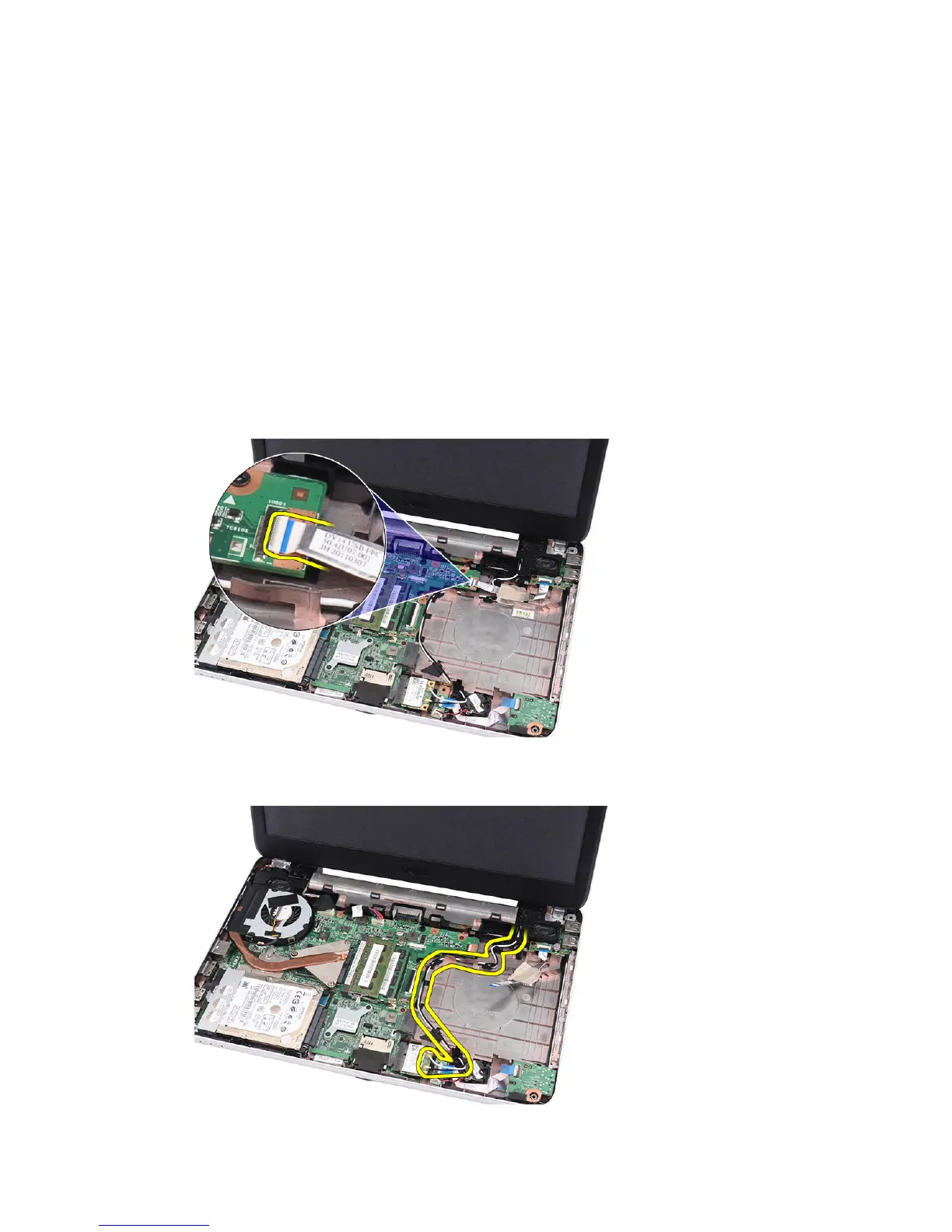

7. Disconnect the USB board cable from the system board to allow access to
the WLAN antennae.
8. Disconnect the WLAN antennae and release it from the routing channel on
the chassis.
53
