Dell Vostro 1440 - Removing The Speakers

Removing The Speakers 18
1. Follow the procedures in Before Working On Your Computer .
2. Remove the battery .
3. Remove the SD memory card .
4. Remove the
keyboard .
5. Remove the
optical drive .
6. Remove the memory module .
7. Remove the palm rest .
8. Remove the
hard drive .
9. Remove the WLAN card .
10. Remove the
USB board .
11. Remove the heatsink and the CPU fan assembly .
12. Remove the
processor .
13. Remove the system board .
14. Remove the hinge cover .
15. Remove the
display assembly .

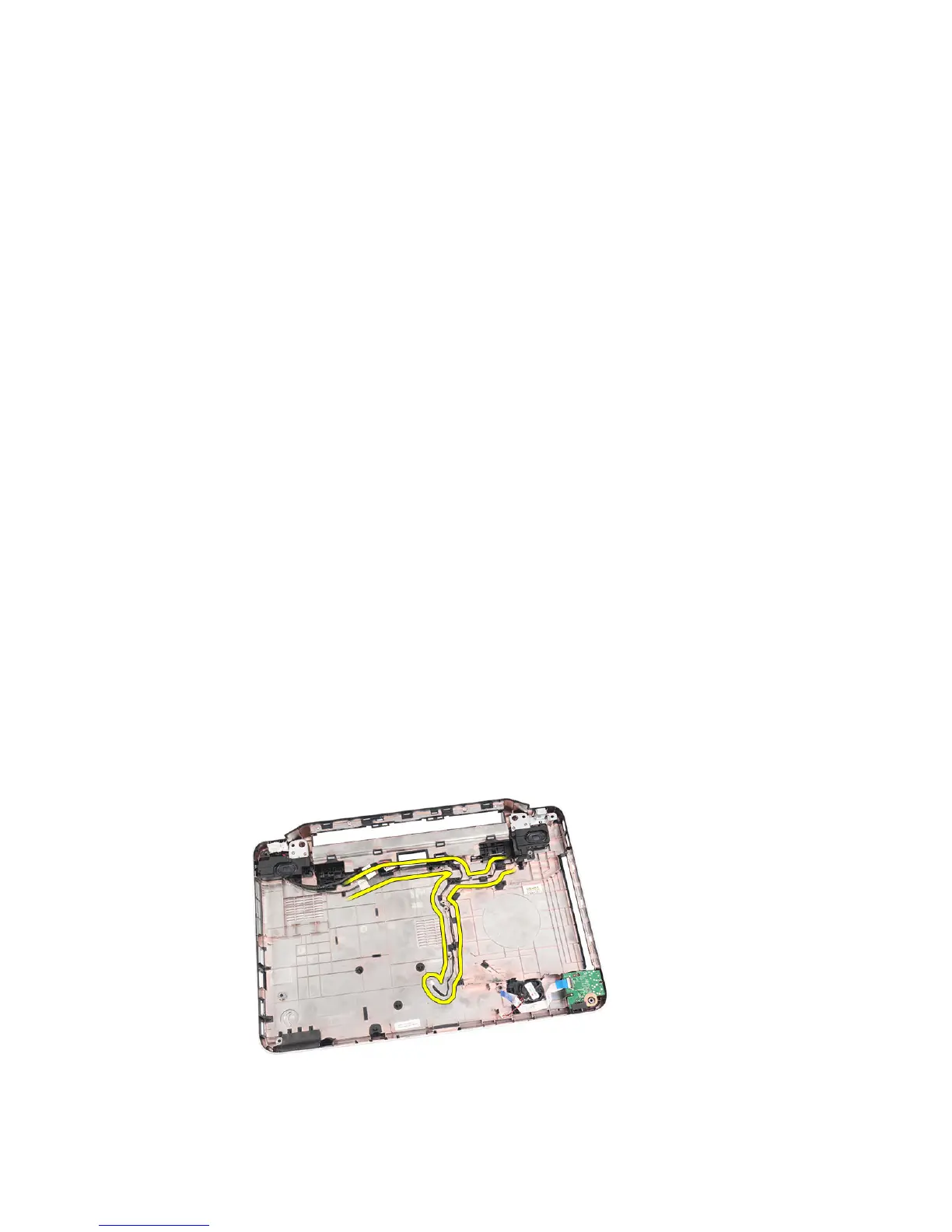

16. Release the speaker cable from the routing channel.
17. Press the securing latches and lift up the left speaker.
49
