Dell Vostro 1440 - Removing The Display Cable

Removing The Display Cable 23
1. Follow the procedures in Before Working On Your Computer .
2. Remove the
battery .
3. Remove the hinge cover .
4. Remove the keyboard .
5. Remove the optical drive .
6. Remove the palm rest .
7. Remove the display assembly .
8. Remove the display bezel .
9. Remove the display panel .

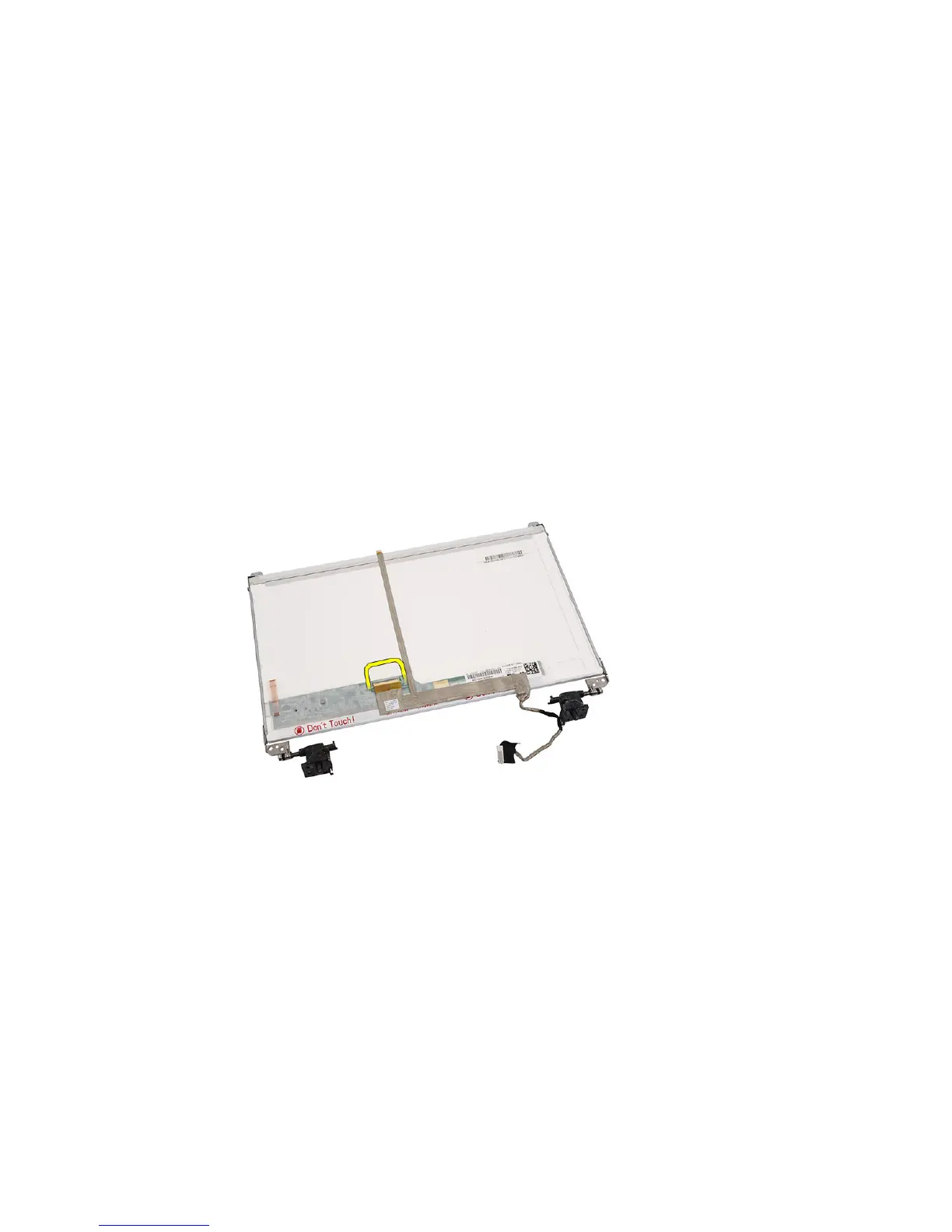

10. Peel off the tape covering the display connection.
11. Disconnect the display cable from the display panel.
