Dell vostro 15-3565 User Manual

Installing the Input/Output board

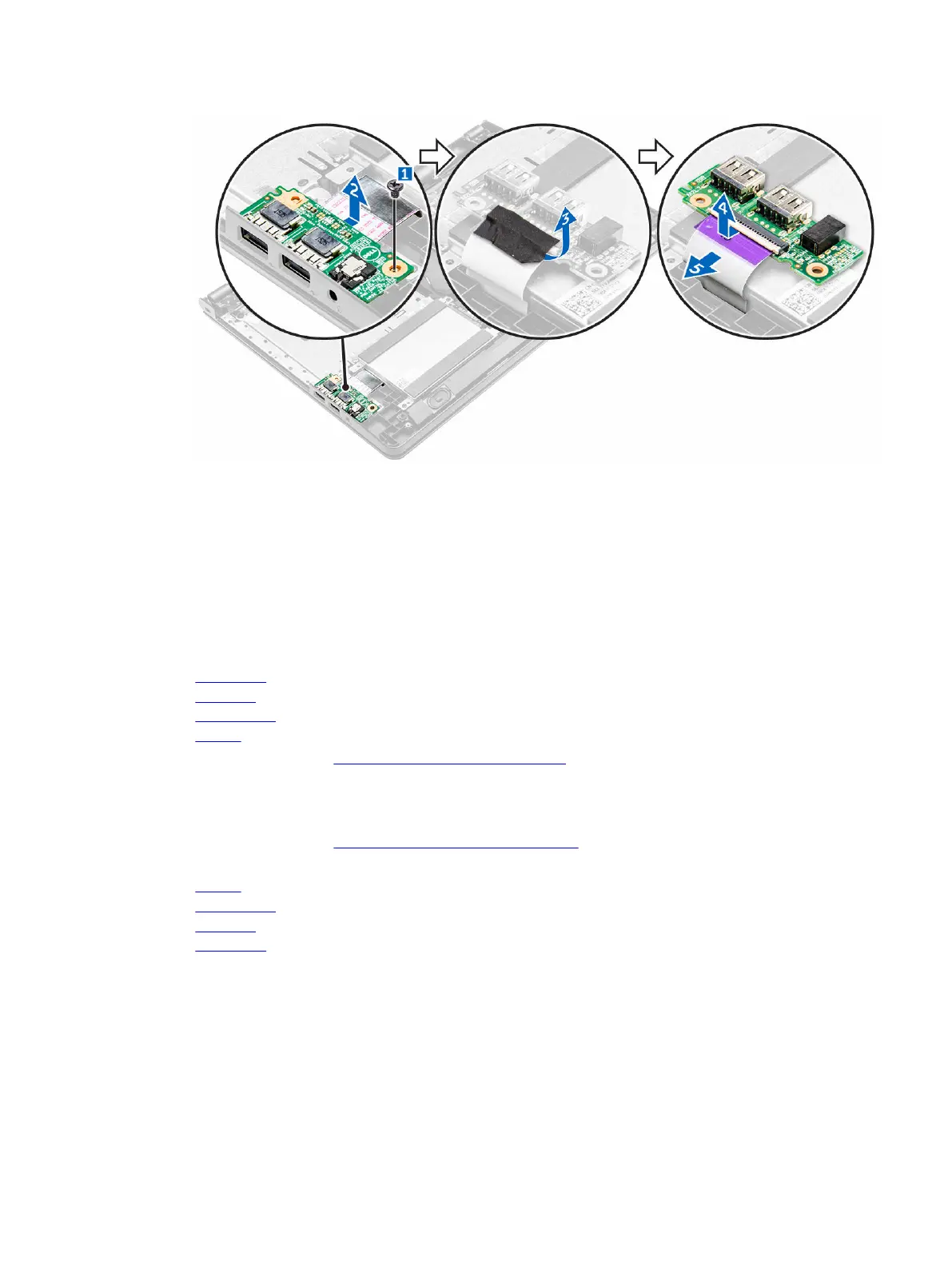

1. Connect the input/output (I/O board) cable to the I/O board.
2. Replace the black adhesive tape to secure the i/o board cable.
3. Turn the I/O board over and align it with the screw holder on the computer.
4. Insert the I/O board into the computer.
5. Tighten the screw to secure the I/O board to the computer.
6. Install the:
a. base cover
b. keyboard
c. optical drive
d. battery
7. Follow the procedure in After working inside your computer.
Removing the speakers
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. battery
b. optical drive
c. keyboard
d. base cover
3. To remove the speakers:
a. Disconnect the speaker cable [1].
b. Unroute the cables and remove the speakers from the computer [2].
24

Dell vostro 15-3565 Specifications

General

RAM	4GB DDR4
Display	15.6-inch HD (1366 x 768)
Operating System	Windows 10 Home
Optical Drive	DVD-RW
Graphics	AMD Radeon R5
Battery	4-cell 40Whr
Weight	2.18 kg
Ports	2 x USB 3.0, 1 x USB 2.0, HDMI, SD card reader
Storage	Up to 1TB 5400 RPM HDD
