Dell vostro 15-3565 User Manual

c. keyboard
d. base cover
e. hard drive assembly
f. optical drive
g. WLAN card
h. I/O board
i. memory module
j. coin cell battery
k. heat sink
l. system board
m. power connector
n. display assembly
o. display bezel
p. camera
q. display panel
3. To remove the hinges:

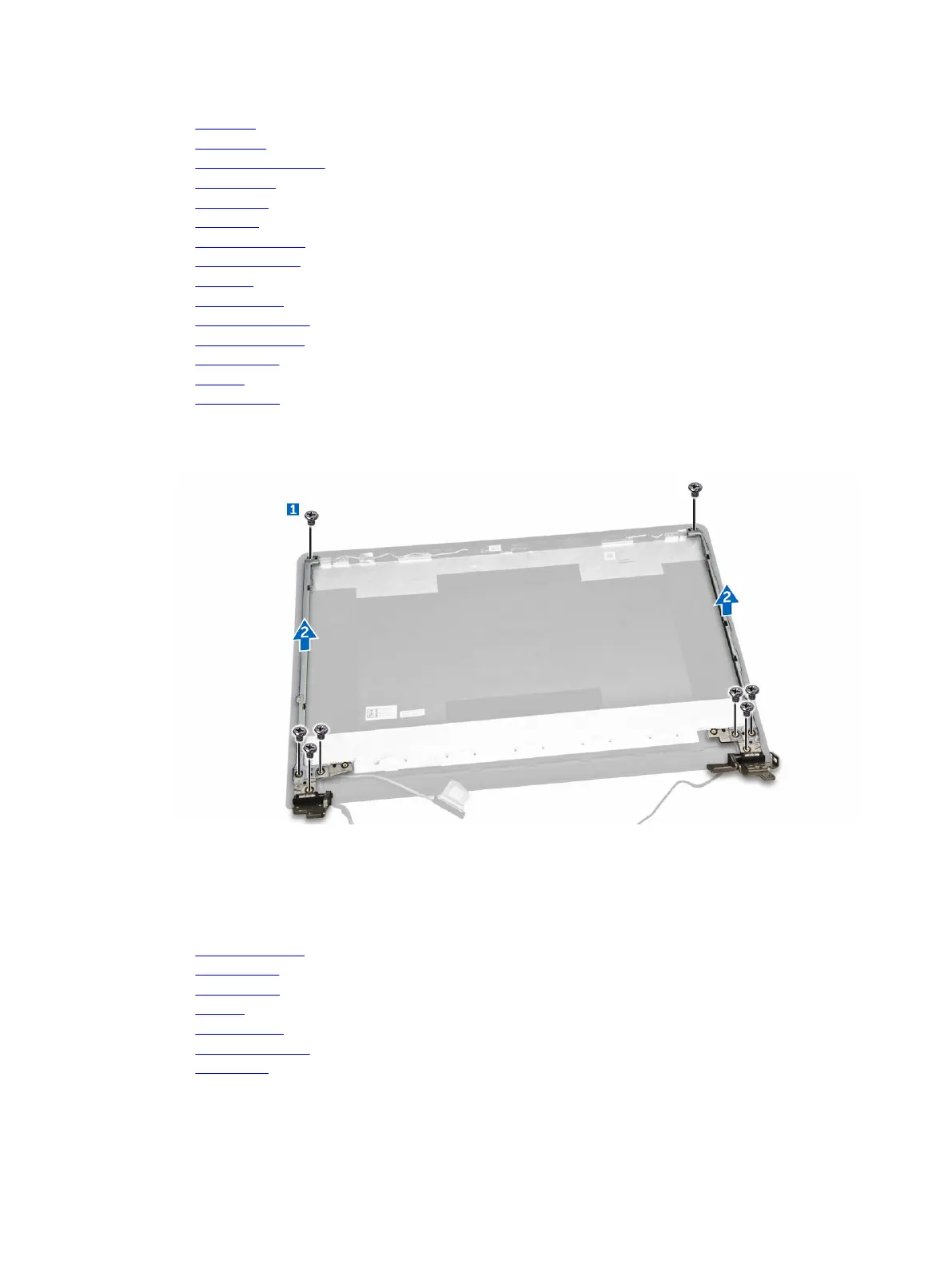

a. Remove the screws that secure the display hinges to the display assembly [1].
b. Remove the display hinges [2].
Installing the display hinges
1. Tighten the screws to secure the display hinges to the display assembly.
2. Install the:
a. display assembly
b. display bezel
c. display panel
d. camera
e. system board
f. power connector
g. WLAN card
37

Dell vostro 15-3565 Specifications

General

RAM	4GB DDR4
Display	15.6-inch HD (1366 x 768)
Operating System	Windows 10 Home
Optical Drive	DVD-RW
Graphics	AMD Radeon R5
Battery	4-cell 40Whr
Weight	2.18 kg
Ports	2 x USB 3.0, 1 x USB 2.0, HDMI, SD card reader
Storage	Up to 1TB 5400 RPM HDD
