About this task
Steps

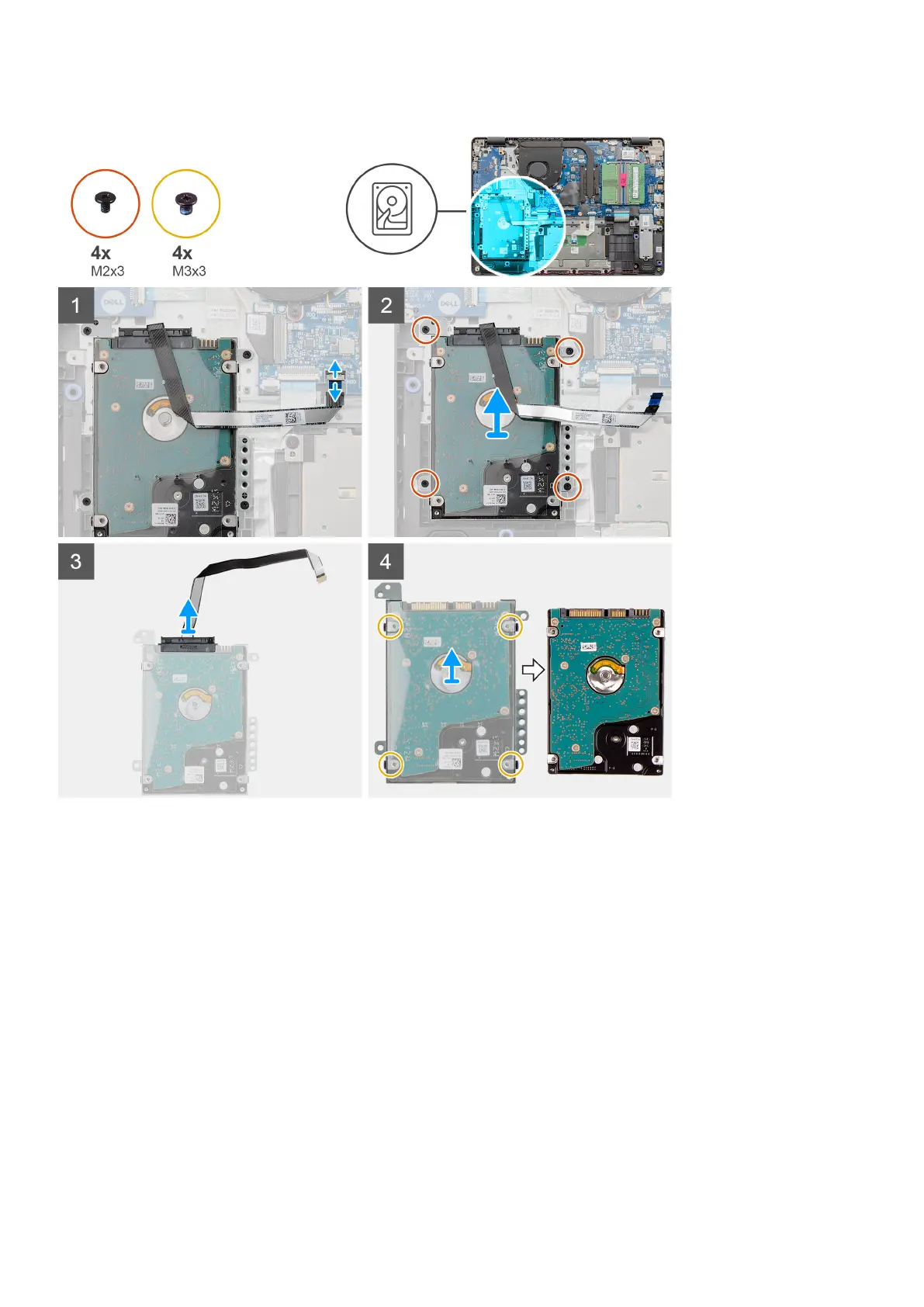

1. Lift the latch and disconnect the hard drive cable from the system board.
2. Remove the four (M2x3) screws that secure the hard drive assembly to the palmrest and lift the hard drive assembly along
with its cable from the system.
3. Disconnect the interposer from the hard drive.
4. Remove the four (M3x3) screws from the hard drive bracket to free the hard drive.
Installing the hard drive assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
