Steps
1. Place the display panel on a flat and clean surface .
2. Connect the display cable to the connector at the back of the display panel and close the latch to secure the cable .
3. Adhere the tape that secures the display cable to the back of the display panel .
4. Turn the display panel over and place it on the display back-cover .
5. Replace the six (M2.5x2.5) screws that secure the display panel to the display back-cover.
Next steps
1. Install the display bezel.
2. Install the display assembly.
3. Install the WLAN.
4. Install the battery.
5. Install the base cover.
6. Install the SD card.
7. Follow the procedure in after working inside your computer.
Camera

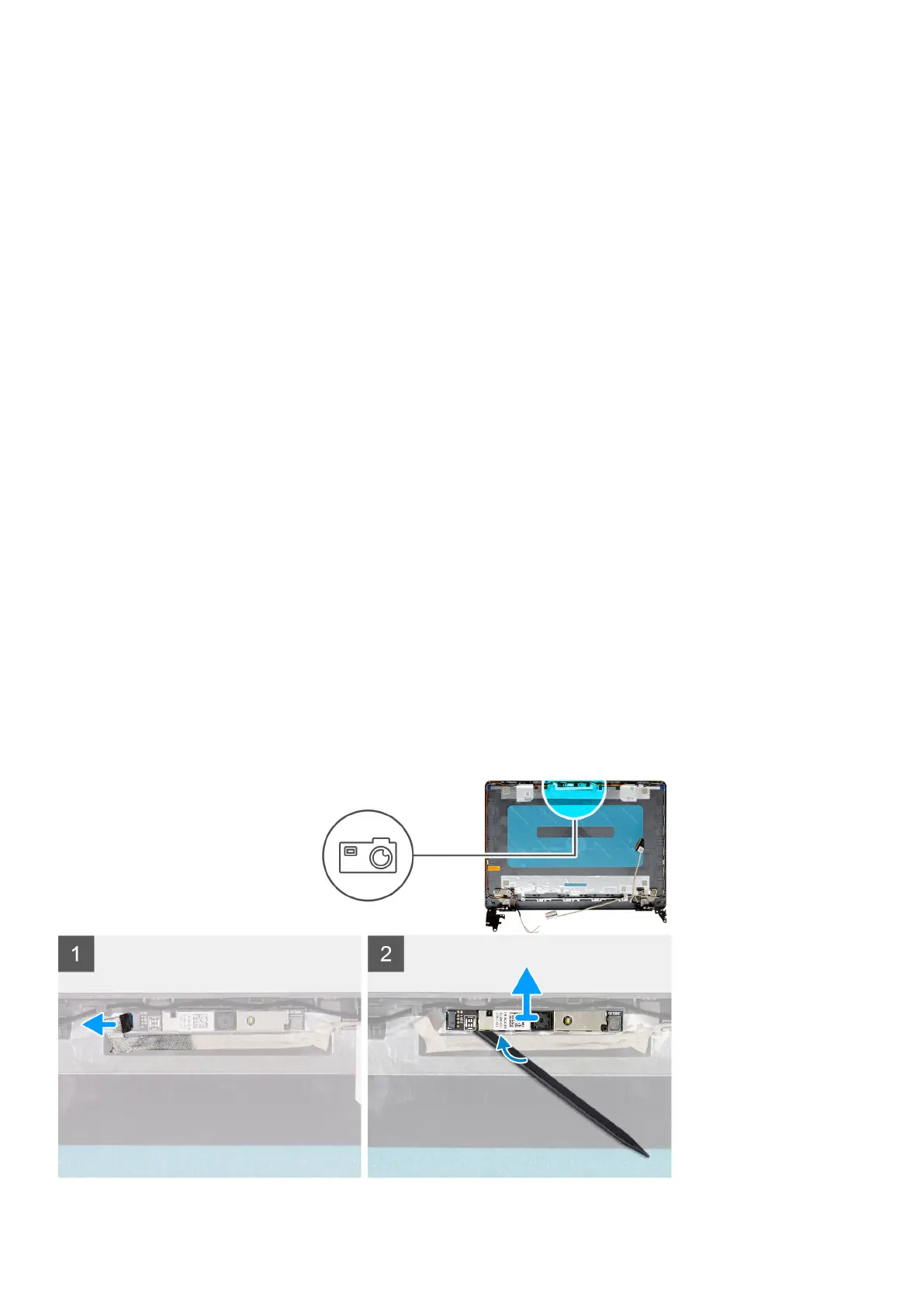

Removing the camera
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Disconnect the battery cable.
5. Remove the WLAN.
6. Remove the display assembly.
7. Remove the display bezel.
8. Remove the display panel.
About this task
64
Disassembly and reassembly
