About this task

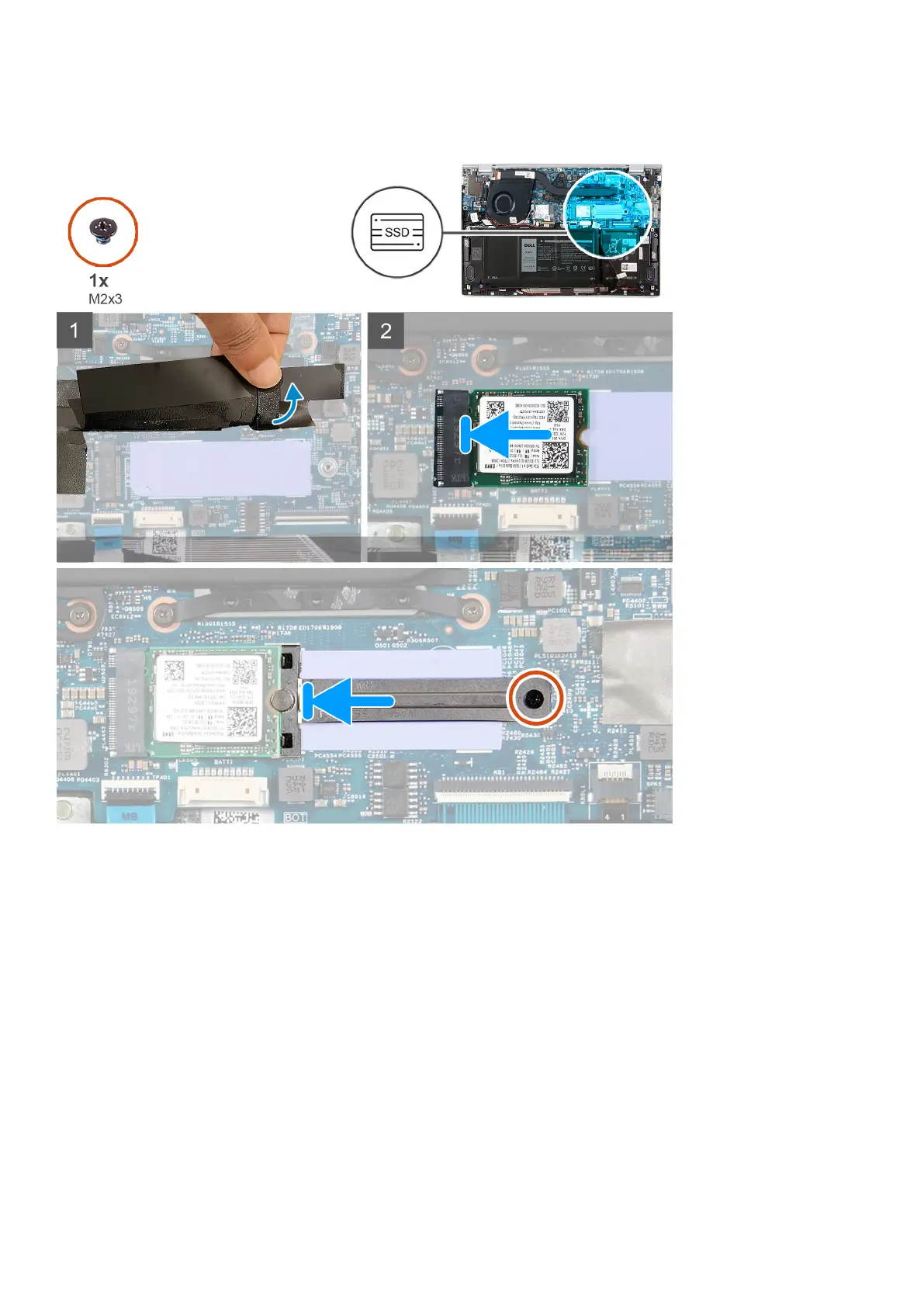

The following image indicates the location of the solid-state drive and provides a visual representation of the installation procedure.
Steps
1. Lift the mylar that covers the solid-state drive slot.
2. Slide the solid-state drive into the solid-state drive slot.
3. Slide the solid-state drive bracket and align the screw hole on the solid-state drive bracket with the screw hole on the system board.
4. Replace the screw (M2x3) that secures the solid-state drive bracket to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
