About this task

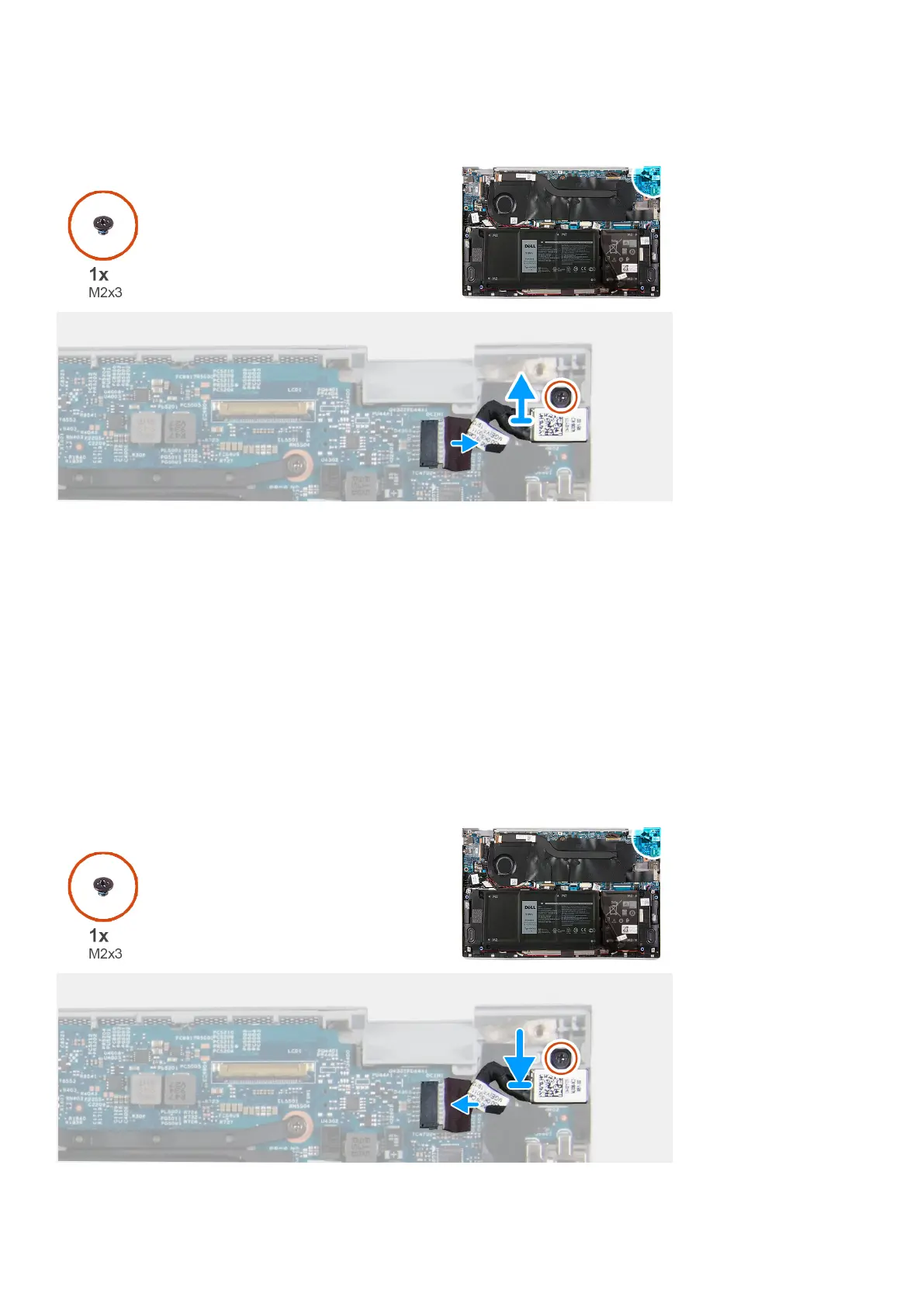

The following image indicates the location of power-adapter port and provides a visual representation of the removal procedure.
Steps
1. Remove the screw (M2x3) that secures the power-adapter port to the system board.
2. Disconnect the power-adapter port cable from the system board.
3. Lift the power-adapter port, along with its cable, off the palm-rest and keyboard assembly.
Installing the power-adapter port
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of power-adapter port and provides a visual representation of the installation procedure.
Removing and installing components
