Speakers
Removing the speakers
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
NOTE: The wireless-card antennas are attached to the speakers as an assembly and cannot be separated for individual
replacement. Services will replace the speakers and the wireless antennas as an assembly part.

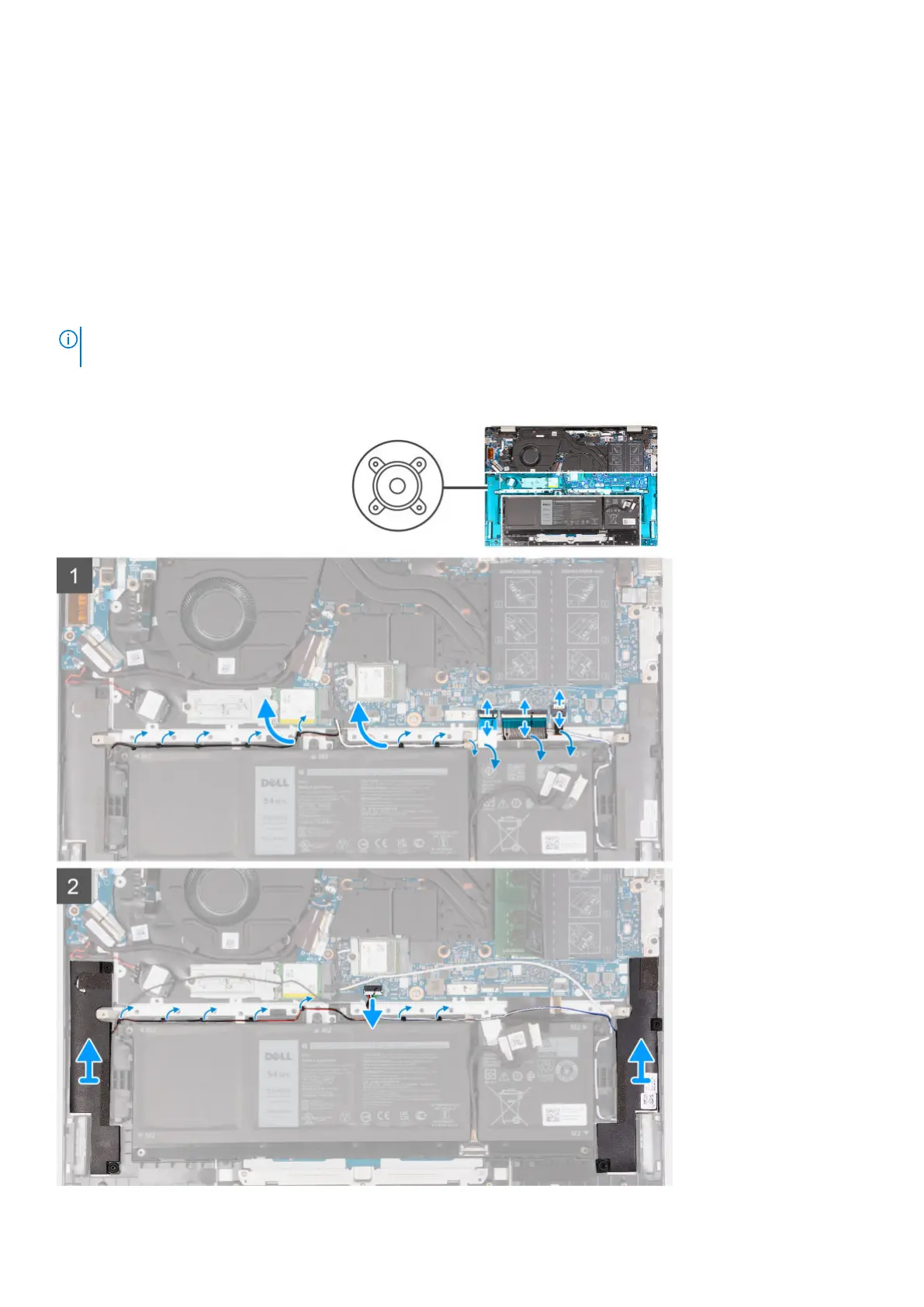

The following image(s) indicate the location of the speakers and provides a visual representation of the removal procedure.
Removing and installing components 45
