Dell Vostro V131 - Removing The LVDS Cable

Removing The LVDS Cable 25
1. Follow the procedures in Before Working On Your Computer .
2. Remove the
battery .
3. Remove the base cover .
4. Remove the keyboard .
5. Remove the hard drive .
6. Remove the palm rest .
7. Remove the display panel .
8. Remove the display assembly .
9. Remove the display hinge .

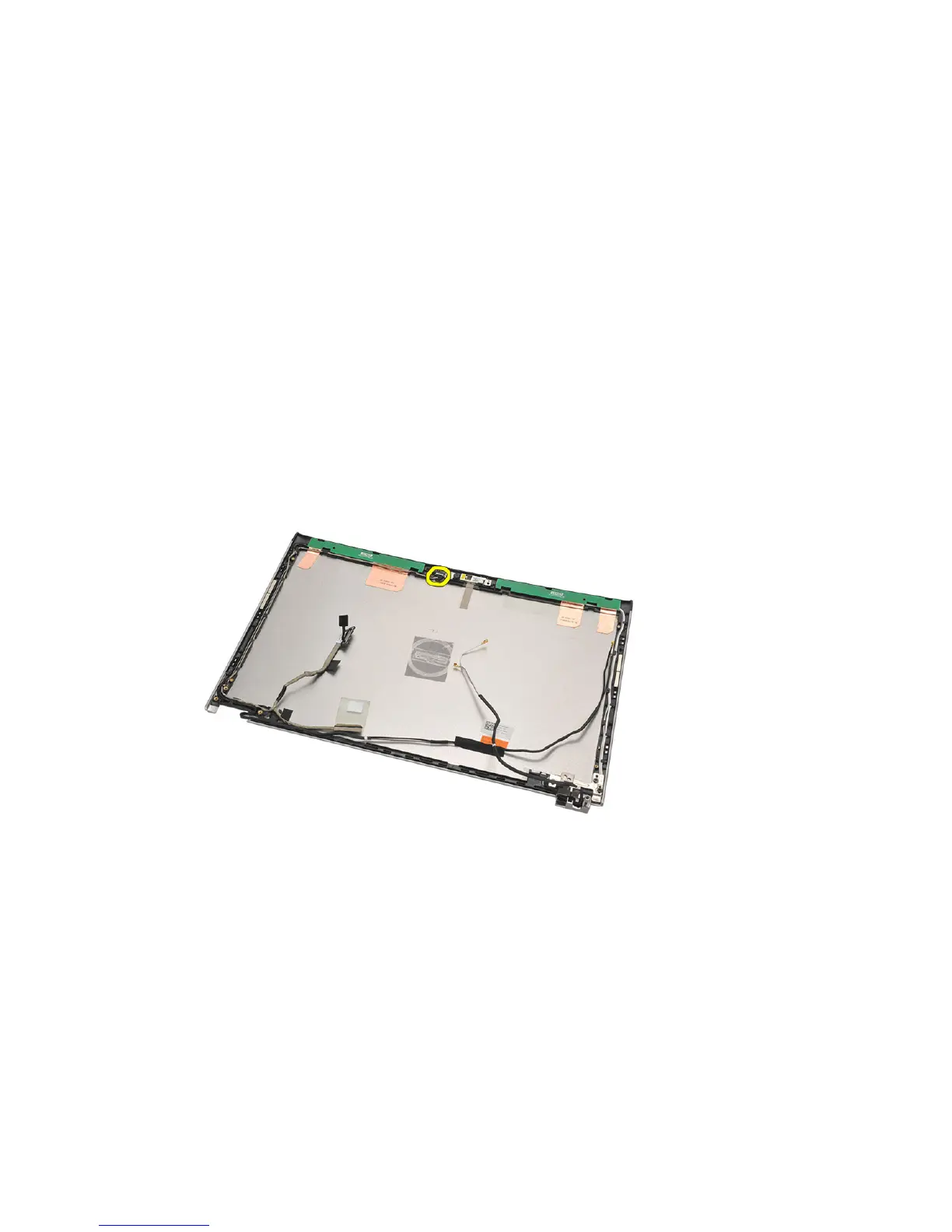

10. Disconnect the Low-Voltage Differential Signalling (LVDS) cable from the
camera module.
11. Unthread the LVDS cable from its holder and remove it from the display top
cover.
71
