Steps
1. Align the notch on the M.2 2280 solid-state drive with the tab on the solid-state drive slot (M.2 PCIe SSD 0).
2. Slide the M.2 2280 solid-state drive into the solid-state drive slot (M.2 PCIe SSD 0) on the system board.
3. Replace the screw (M2x3.5) that secures the M.2 2280 solid-state drive to the system board.
Next steps
1. Install the system-board shield.
2. Install the back cover.
3. Install the stand.
4. Follow the procedure in After working inside your computer.
Location of the screw mount
Prerequisites
To install an M.2 solid-state drive of a different form factor on the M.2 slot, the location of the screw mount has to be changed
in order to install the M.2 solid-state drive of a different form factor.
About this task
NOTE: This procedure only applies to the screw mount located with the M.2 slot.

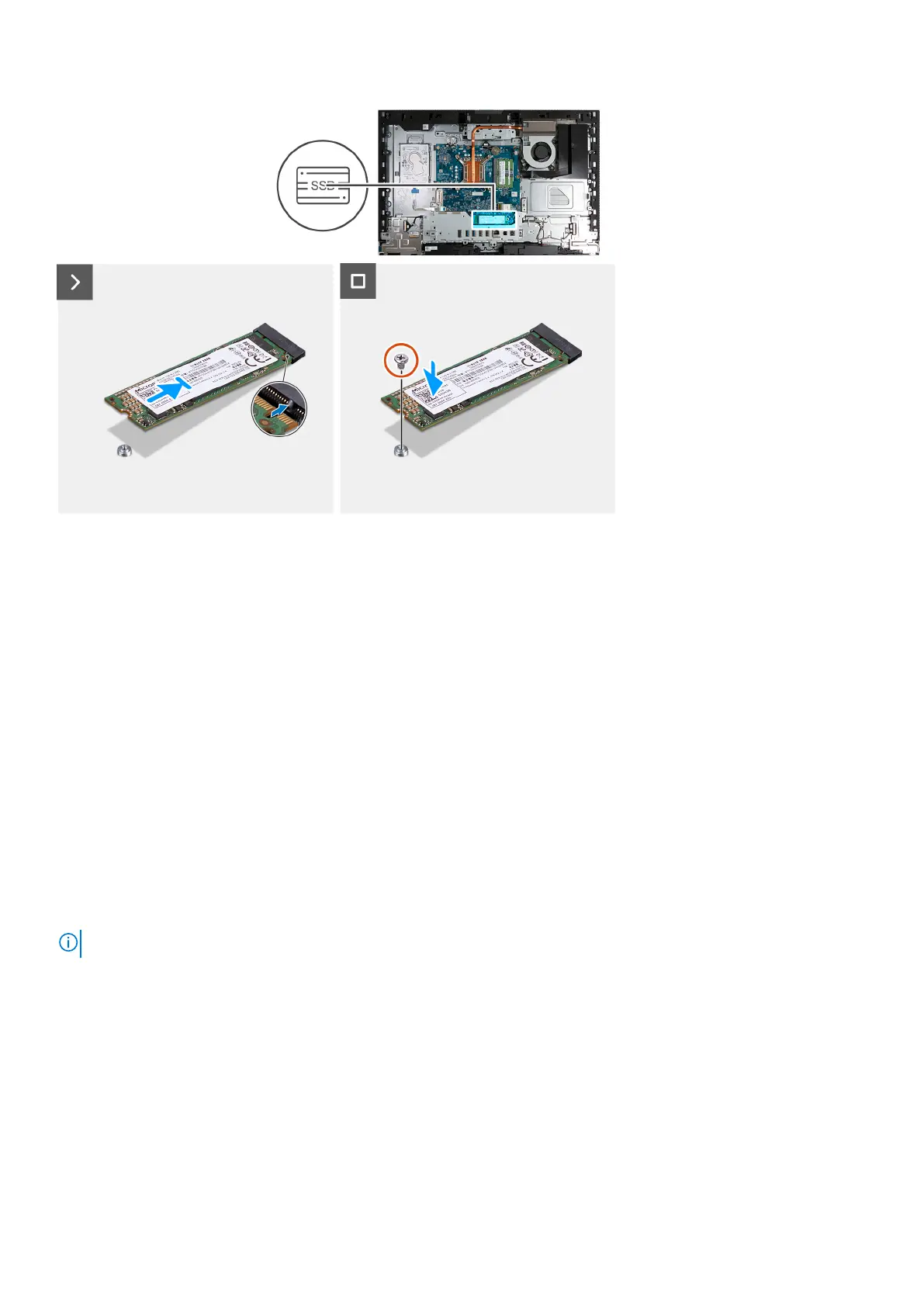

The following image(s) indicate the location of the screw mount on the M.2 slot and provides a visual representation of the
procedure to change the position of the screw mount.
