Steps
1. Remove the two screws (M3x5) that secure the camera-assembly bracket to the display-assembly base.
2. Life the camera-assembly bracket off the display-assembly base.
3. Using the pull tab, disconnect the camera cable (WEBCAM) from the system board.
4. Remove the two screws (M3x5) that secure the retractable-camera assembly to the display-assembly base.
5. Lift and slide the retractable-camera assembly from its slot and under the heat sink and remove the retractable-camera
assembly from the display-assembly base.
Installing the retractable-camera assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

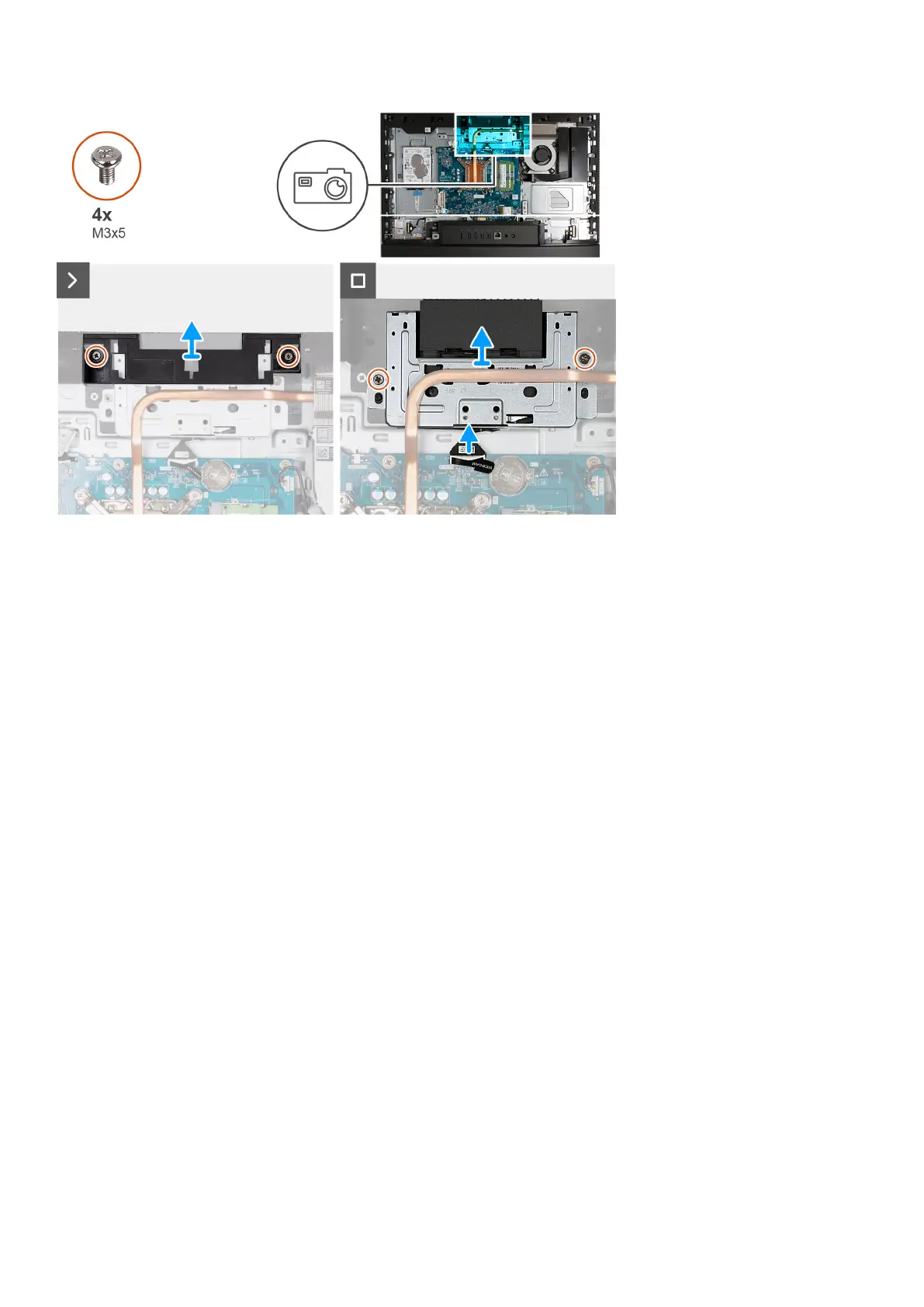

The following image(s) indicate the location of the retractable-camera assembly and provides a visual representation of the
installation procedure.
