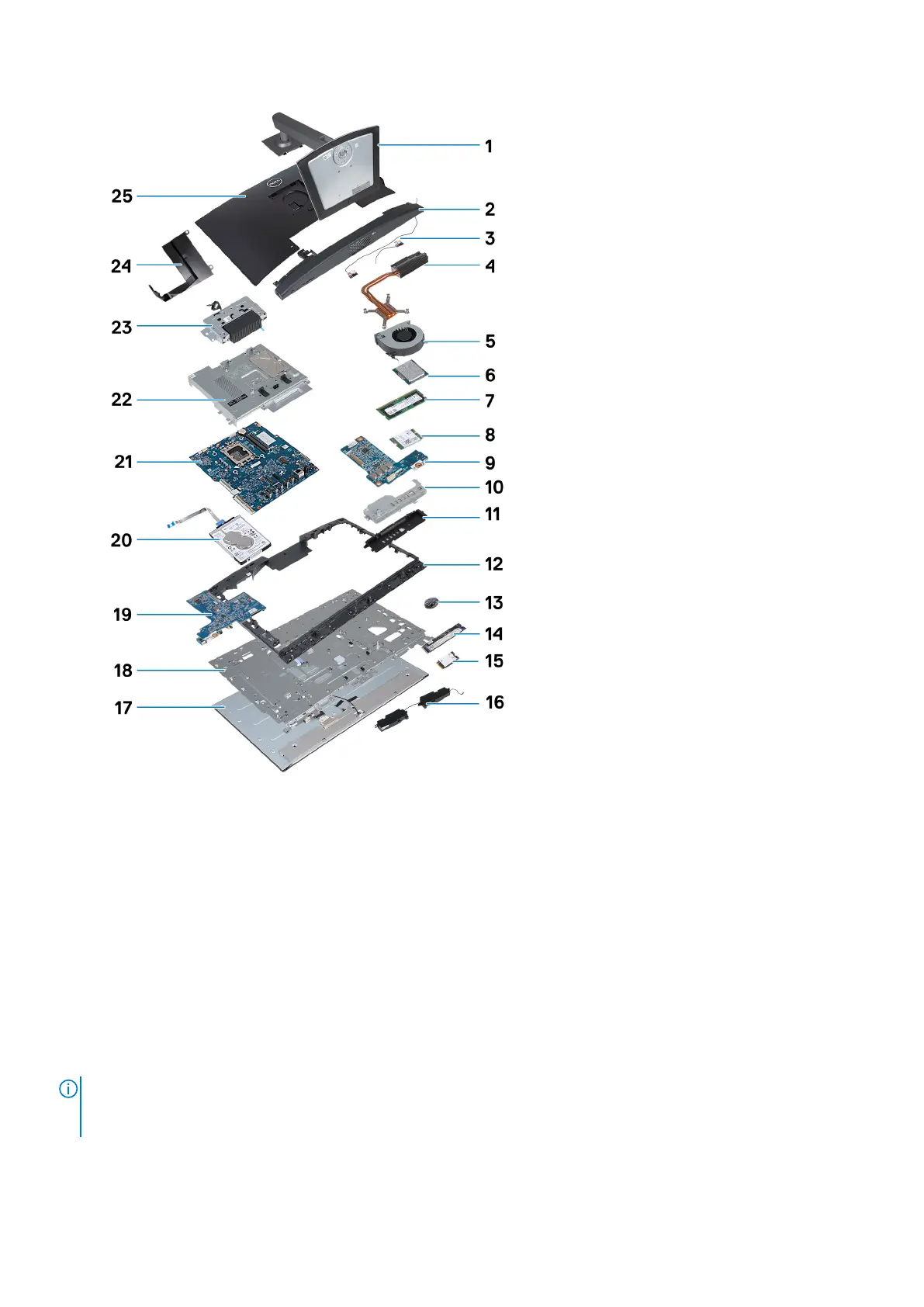

1. Stand 2. Bottom cover
3. Antenna modules 4. Heat sink
5. Fan 6. Processor
7. Memory module 8. Wireless card
9. Audio board 10. I/O bracket
11. I/O cover 12. Middle frame
13. Coin-cell battery 14. M.2 2280 solid-state drive
15. M.2 2230 solid-state drive 16. Speakers
17. Display panel 18. Display base
19. Power-button and I/O board 20. Hard drive
21. System board 22. System-board shield
23. Retractable-camera assembly 24. Fan shroud
25. Back cover
NOTE: Dell provides a list of components and their part numbers for the original system configuration purchased. These
parts are available according to warranty coverages purchased by the customer. Contact your Dell sales representative for
purchase options.
40 Working inside your computer
