About Your TV 7
FILE LOCATION: C:\Documents and Settings\solinak\Ƈ¦±\OM update\ch1e.fm
DELL CONFIDENTIAL – PRELIMINARY 10/8/04 – FOR PROOF ONLY
www.dell.com | support.dell.com

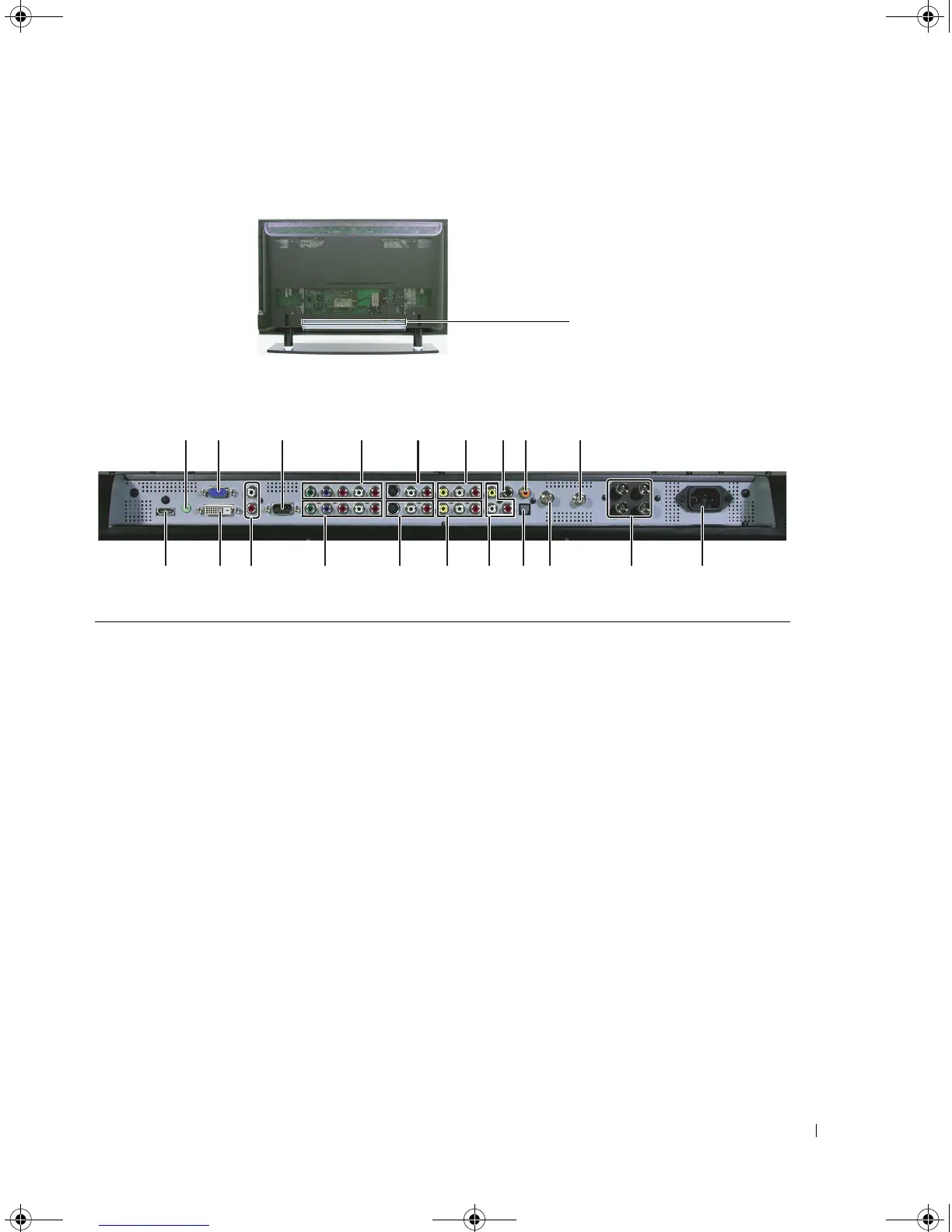

Bottom View
1 HDMI connector Connect devices such as a DVD player or set-top box
2 Audio connector for VGA Connect the audio cable from your computer to the TV
3 DVI connector Connect devices such as a DVD player, set-top box, or your computer
4 VGA connector Connect to the VGA cable from your computer to the TV
5 DVI audio connectors (R/L) Connect to the DVI audio connectors if you have connected a device
such as a DVD player or set-top box to the DVI connector
6 RS232 For factory use only
7 Component audio and
video connectors (AV2)
Connect devices such as a DVD player, set-top box, or cable TV box
8 Component audio and
video connectors (AV1)
Connect devices such as a DVD player, set-top box, or cable TV box
9 S-Video connectors (AV4) Connect devices such as a video game system or a DVD player
10 S-Video connectors (AV3) Connect devices such as a video game system or a DVD player
11 Composite video and audio
connectors (AV6)
Connect devices such as a VCR or DVD player
12 Composite video and audio
connectors (AV5)
Connect a device such as a VCR or DVD player
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19 20
Connectors are here
