11. EDID Content
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15
0: 00 FF FF FF FF FF FF 00 10 AC 0B A0 33 32 31 30
16: 0A 0E 01 03 68 22 1B 78 EE CA F6 A3 57 47 9E 23
32: 11 4F 54 A5 4B 00 71 4F 81 80 01 01 01 01 01 01
48: 01 01 01 01 01 01 30 2A 00 98 51 00 2A 40 30 70
64: 13 00 52 0E 11 00 00 1E 00 00 00 FF 00 36 34 31
80: 38 30 33 39 43 30 31 32 33 0A 00 00 00 FC 00 44
96: 45 4C 4C 20 45 31 37 33 46 50 0A 20 00 00 00 FD
112: 00 38 4B 1F 50 0E 00 0A 20 20 20 20 20 20 00 6B
12. ISP (In System Program) User Manual
12.1 Connect ISP Writer preparation action

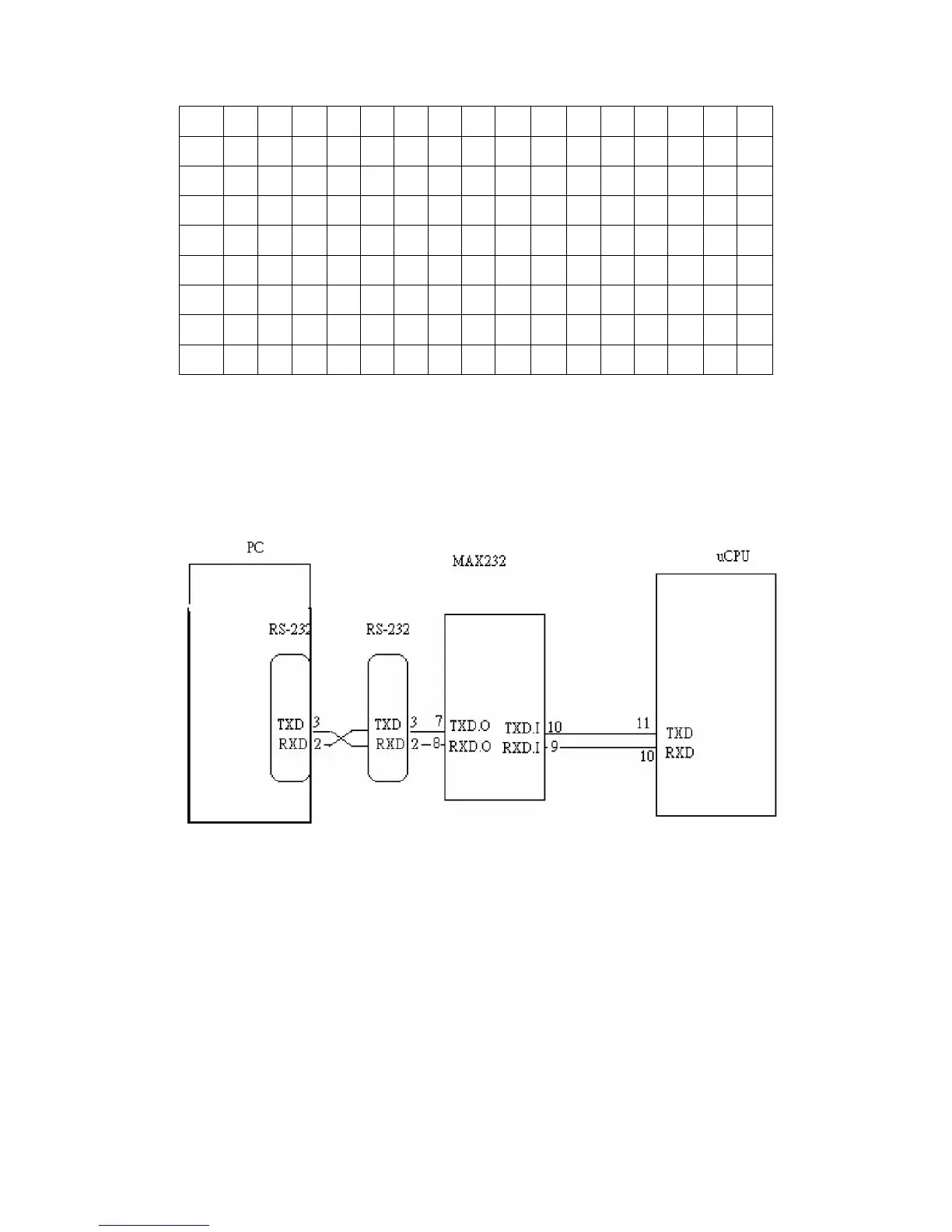

Connect RXD and TXD of PC to RXD (P3.0) and TXD (P3.1) of CPU through RS-232.
There are two ways to entering Reboot Mode. The settings for Reboot Mode is as follow
z Both P2.6 P2.7 are LOW and RESET pin is HIGHT.
z P4.3 is LOW and RESET pin is HIGHT.
