Removing and Installing Parts 73
10
Close the card retention door by snapping it into place.
NOTICE: Do not route card cables over or behind the cards. Cables routed over the cards can prevent the
computer cover from closing properly or cause damage to the equipment.
11
Connect any cables that should be attached to the card.
See the documentation that came with the card for information about the card’s cable connections.
NOTICE: To connect a network cable, first plug the cable into the network device and then plug it into the computer.
12
Replace the computer cover (see "Replacing the Computer Cover" on page 96), reconnect the
computer and devices to electrical outlets, and then turn them on.
13
Install any drivers required for the card as described in the card documentation.

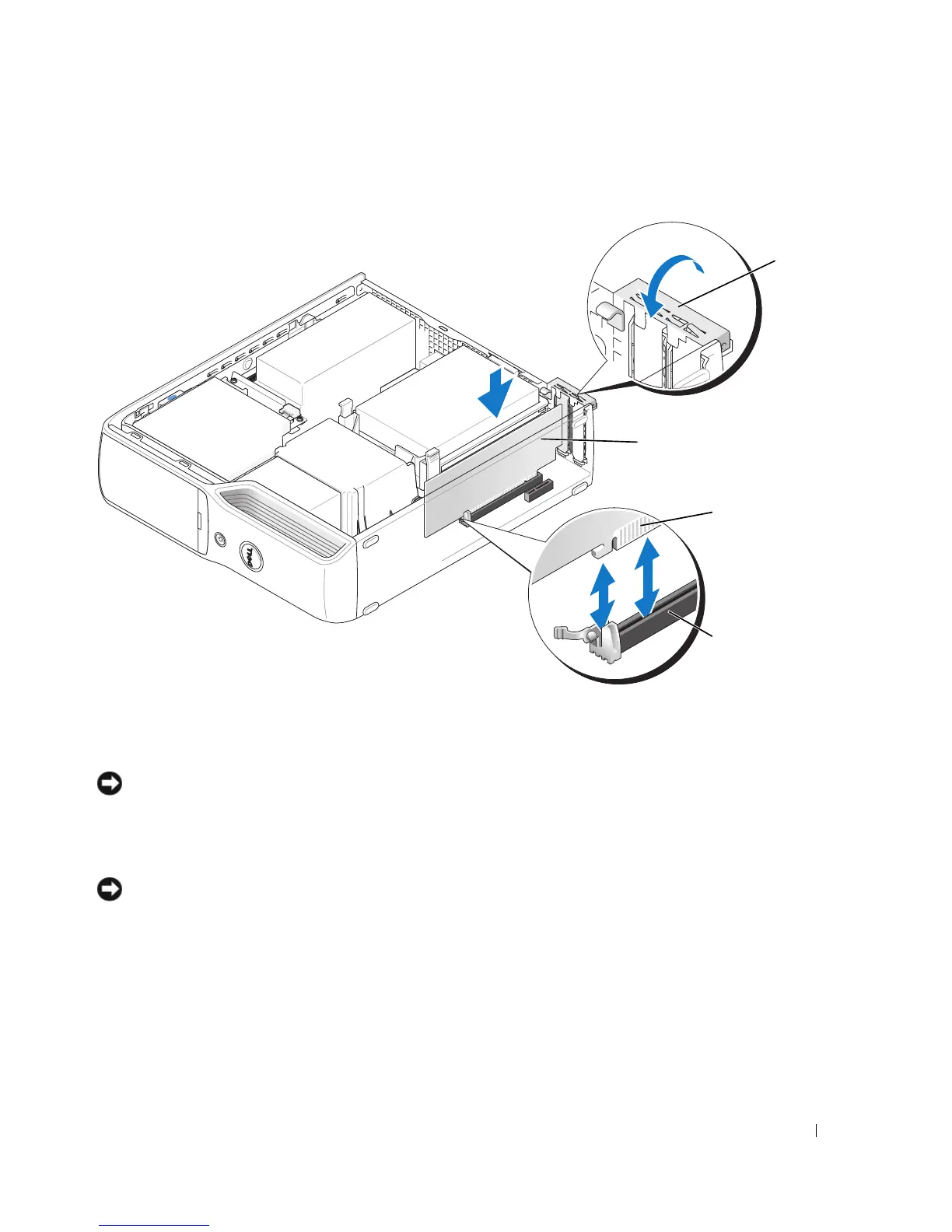

1 retention arm 2 PCI Express card
3 edge connector 4 card connector
3
4
2
1
