56 Using Multimedia
1
Turn off the computer and the TV and/or audio device that you want to
connect.
2
Connect the composite video adapter to the S-video TV-out connector on
the computer.
3
Plug one end of the composite video cable into the composite video-input
connector on the composite video adapter.
4
Plug the other end of the composite video cable into the composite
video-input connector on the TV.
5
Plug one end of the S/PDIF digital audio cable in to the S/PDIF audio
connector on the composite video adapter.

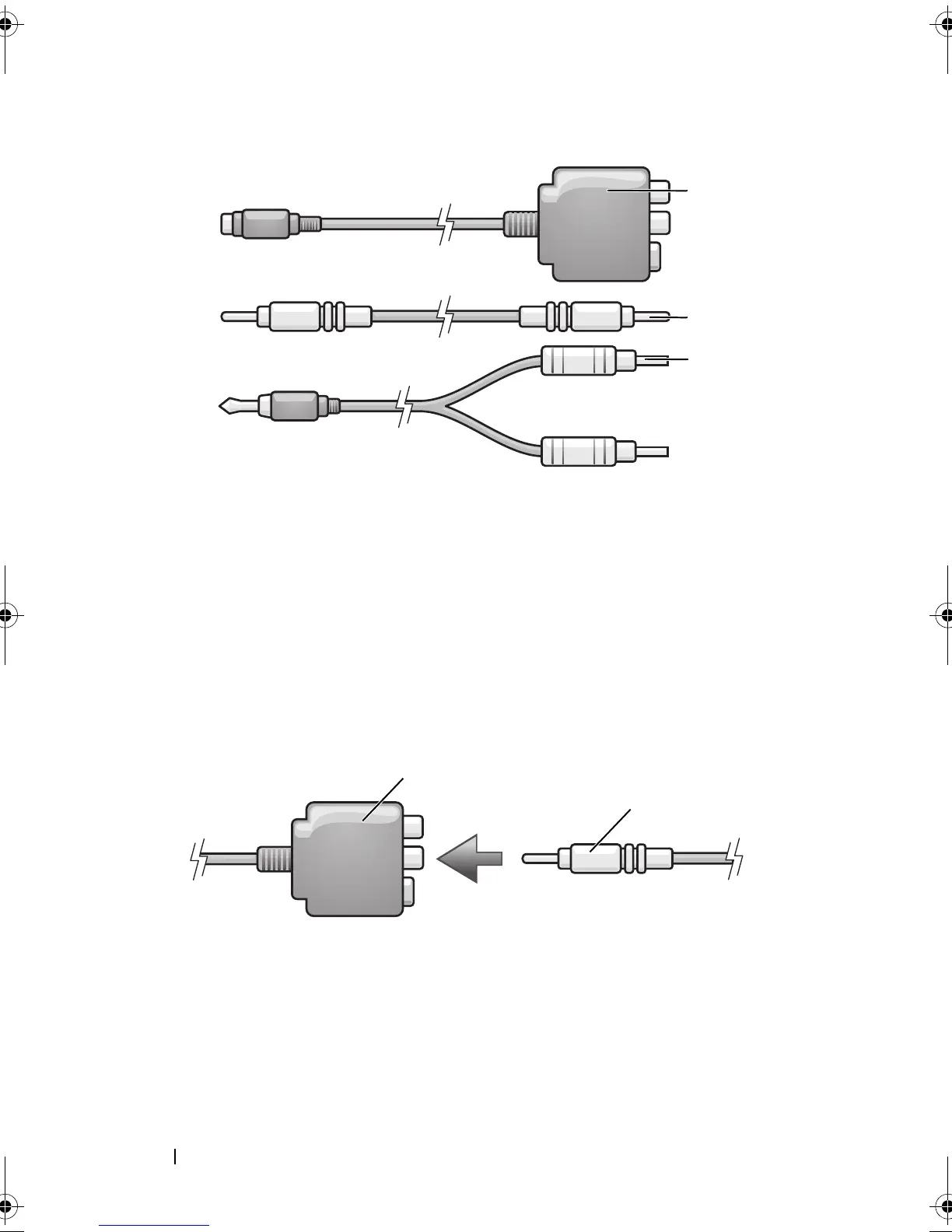

1 composite video adapter 2 composite video cable
3 standard audio cable
1 composite video adapter 2 composite video cable
1
2
3
2
1
book.book Page 56 Friday, April 25, 2008 3:58 PM
