60 Using Multimedia
1
Turn off the computer and the TV and/or audio device that you want to
connect.
2
Connect the component video adapter to the S-video TV-out connector on
the computer.
3
Plug all three ends of the component video cable into the component
video-output connectors on the component video adapter. Make sure that
the red, green, and blue colors of the cable match the corresponding
adapter ports.

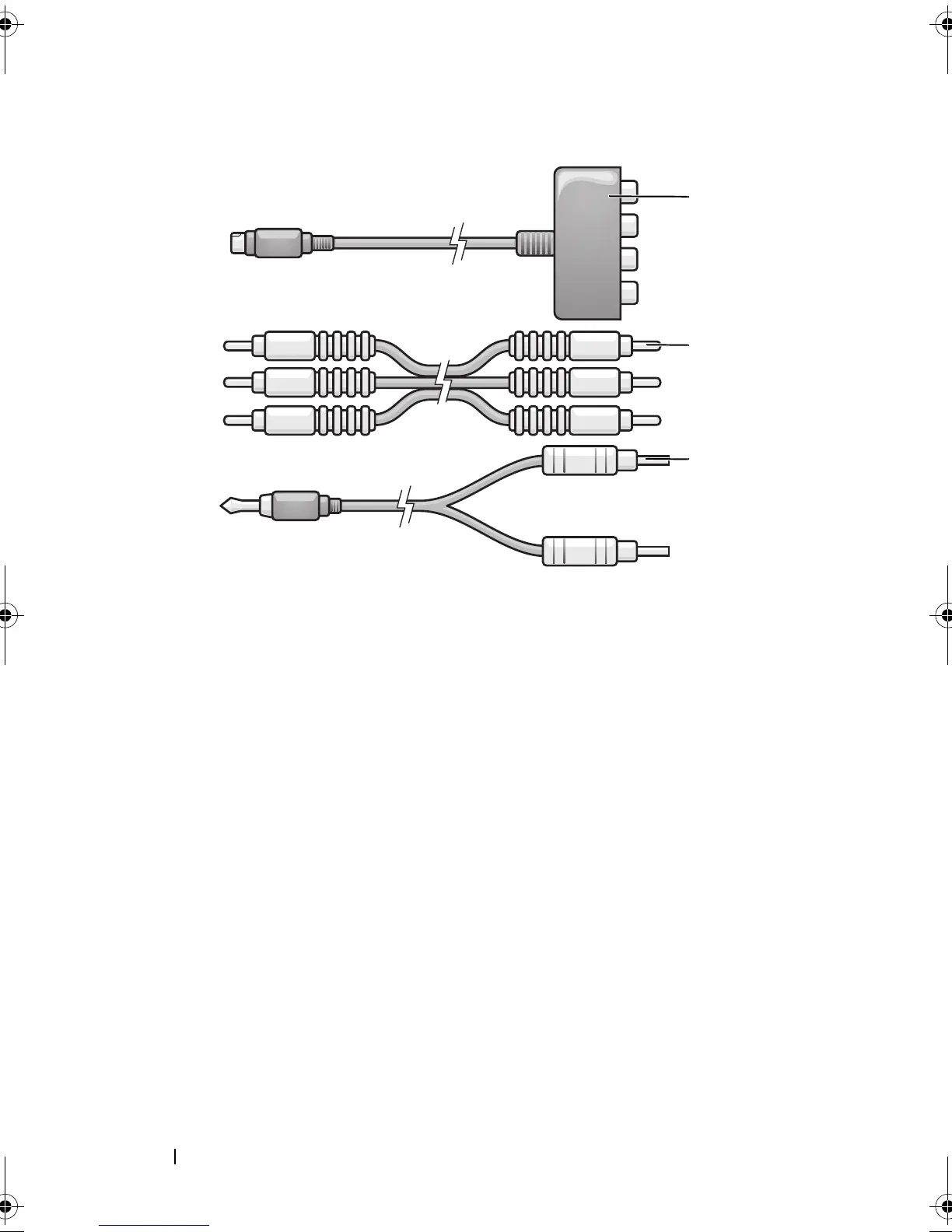

1 component video adapter 2 component video cable
3 standard audio cable
1
2
3
book.book Page 60 Friday, April 25, 2008 3:58 PM
