DeLonghi DE 60 E - Wiring Diagram

40
ELECTRIC DIAGRAM KEY
F1 Oven switch
F2/3/5 Radiant hotplate energy regulators
F4 Double radiant hotplate energy regulator
s
PR Oven programmer
LF Oven lamp
TM Oven thermostat
TMS Safety thermostat
TL Thermal overload
C Top element
G Grill element
S Bottom element
V Fan
CIR Circular element
CR Residual heat lamp
CF Cooling fan
S1 Thermostat pilot lamp
S2 Radiant hotplate pilot lamp
P1/2/4 Radiant hotplates
P3 Double radiant hotplate
M Terminal block
T Earth connection

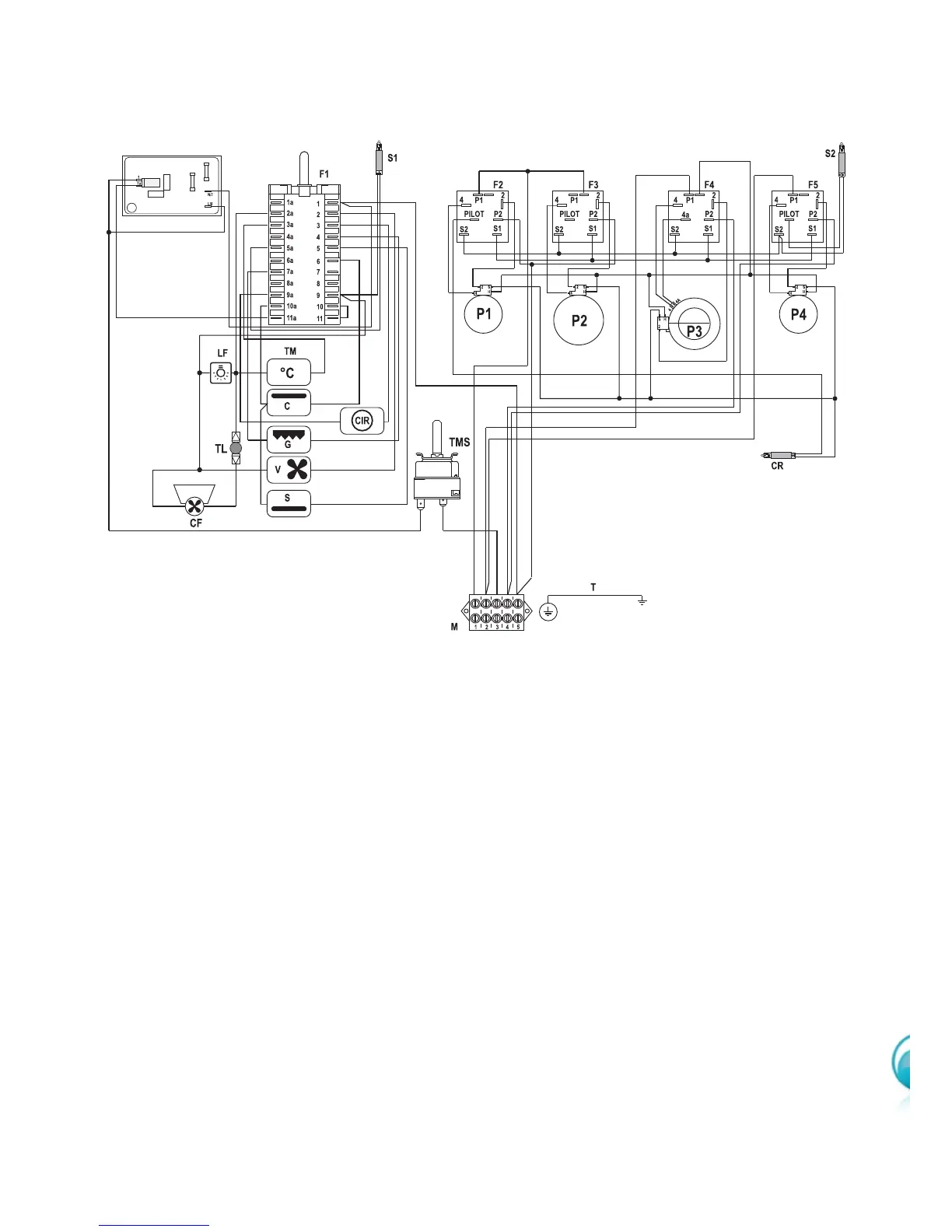

WIRING DIAGRAM
