DeLonghi DFS 905 - Oven Interior Assembly; Side Rack Assembly and Removal; Correct Oven Tray Placement; Oven Floor Cleaning and Replacement

23

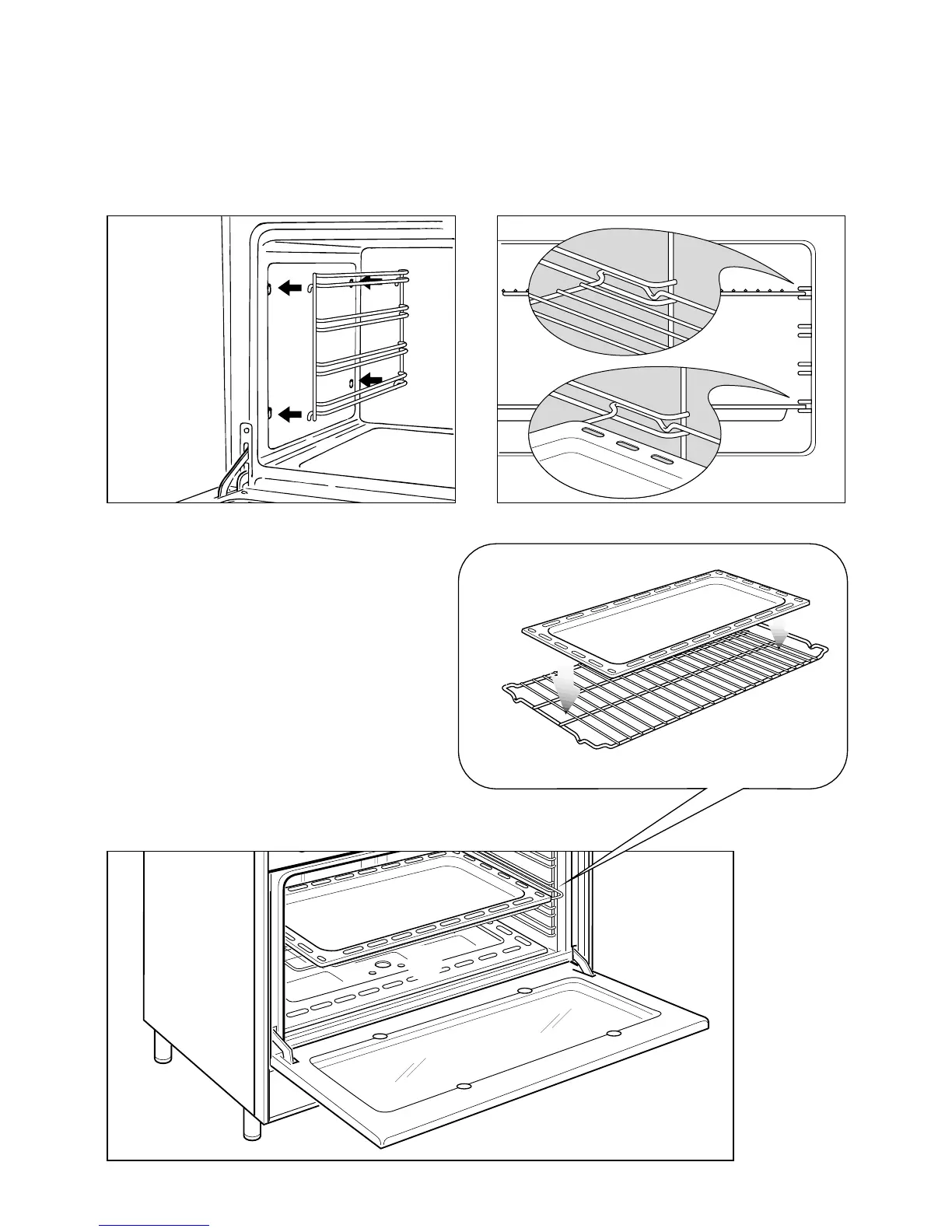

Assembling and removing the side racks
Hang up the wires racks on the oven walls (fig. 6.7)
Slide the required grid or tray into the guides (fig. 6.8).
Fig. 6.7
Fig. 6.8
Oven tray
The oven tray must be correctly
placed on the wire shelf (fig. 6.10)
then inserted into the side runners
(fig. 6.8).
Oven floor
The oven floor “F” (fig. 6.9) can be
easily removed to facilitate cleaning.
Remember to replace the floor cor-
rectly afterwards.
Be careful not to confuse the tray
“L” with the oven floor “F”.
Fig. 6.9
Fig. 6.10
L
F
