Conversion to LPG
Injectors replacement of
top burners
Every cooker is provided with a set of
injectors for the various types of gas.
Injectors not supplied can be obtained
from the After-Sales Service.
Select the injectors to be replaced
according to the table at page 32.
The nozzle diameters, expressed in
hundredths of a millimetre, are marked
on the body of each injector.
To replace the injectors proceed as fol-
lows:
– Remove the grids and extract the
burner bodies.
– Using a wrench, substitute the nozzle
injectors “J” (Fig. 8.3a - 8.3b) with those
most suitable for the kind of gas for
which it is to be used (see “Table for
the choice of the injectors”).
The burners are conceived in such a
way so as not to require the regulation
of the primary air.

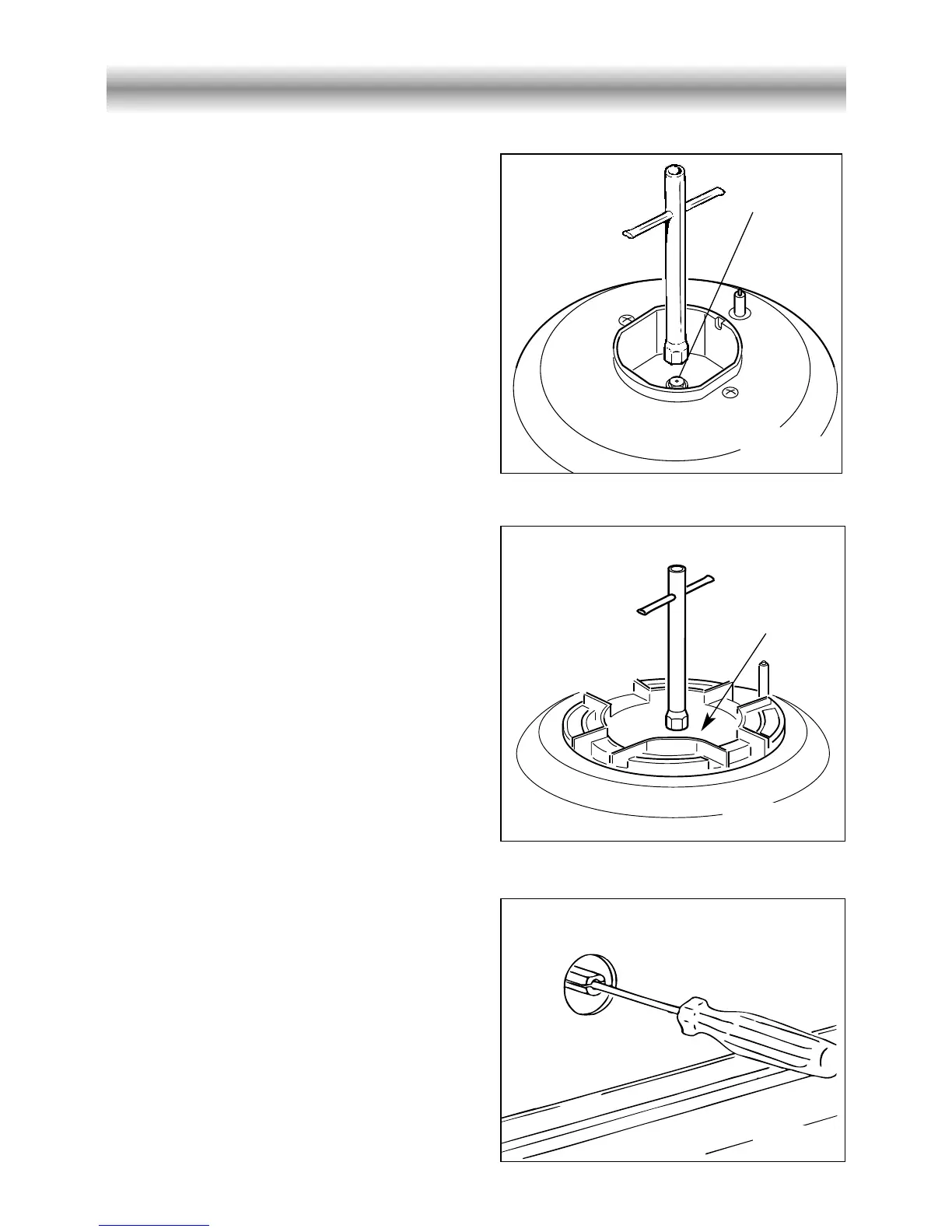

Fig. 8.3a
J
J
Fig. 8.3b
Adjusting of the minimum
of the top burners
Considering that in the minimum position
the flame must have a length of about 4
mm and must remain lit even with a quick
turn from the maximum position to that of
minimum.
The flame adjustment is done in the
following way:
– Turn on the burner
– Tum the tap to the MINIMUM position
– Take off the knob
– With a small flat screwdriver turn the
screw inside the tap rod to the correct
regulation (fig. 8.4).
Normally for LPG, tighten up the
regulation screw.
Fig. 8.4
