33
Fig. 9.3
Fig. 9.2

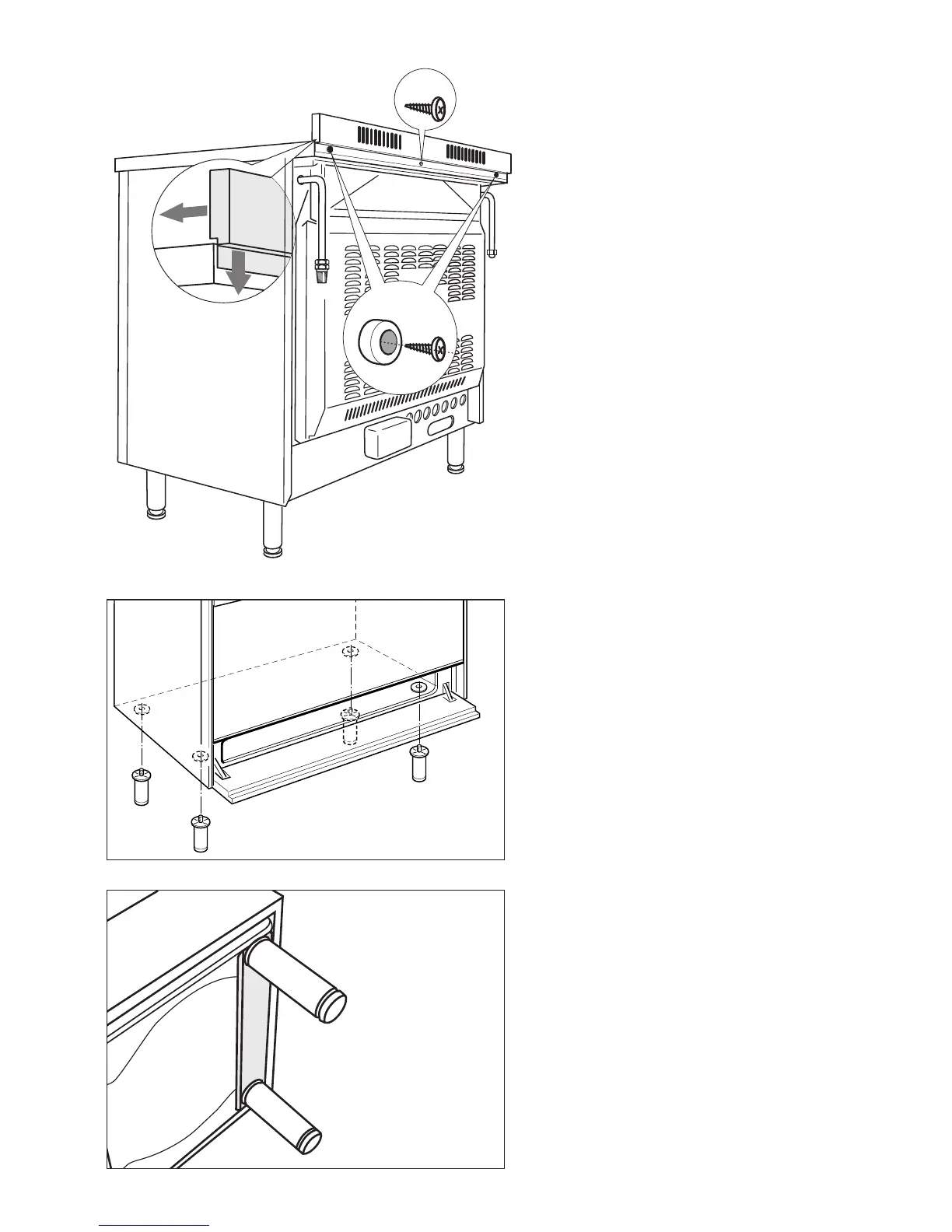

FITTING THE
ADJUSTABLE FEET
The adjustable feet must be fitted
to the base of the cooker before
use.
Rest the rear of the cooker on a
piece of the polystyrene packaging
exposing the base for the fitting of
the feet.
Fit the 4 legs by screwing them
tight into the support base as
shown in picture 9.4.
Fig. 9.4
ASSEMBLING THE
BACKGUARD
■ Remove the two spacers “A” and
the screw “B” from the rear of the
cooktop.
■ Assemble the backguard as
shown in figure 1 and fix it by
screwing the central screw “B”
and the spacers “A”.
