CONTROL PANEL - Controls description
1. Electronic programmer (main left oven only)
2. Multifunction main oven thermostat knob
3. Multifunction main oven switch knob
4. Front left burner control knob
5. Rear left burner control knob
6. Central burner control knob
7. Rear right burner control knob
8. Front right burner control knob
9. Conventional oven switch knob
10. Conventional oven thermostat knob
Pilot lamps:
11. Main oven thermostat indicator light
12. Conventional oven thermostat indicator light
3
11 12

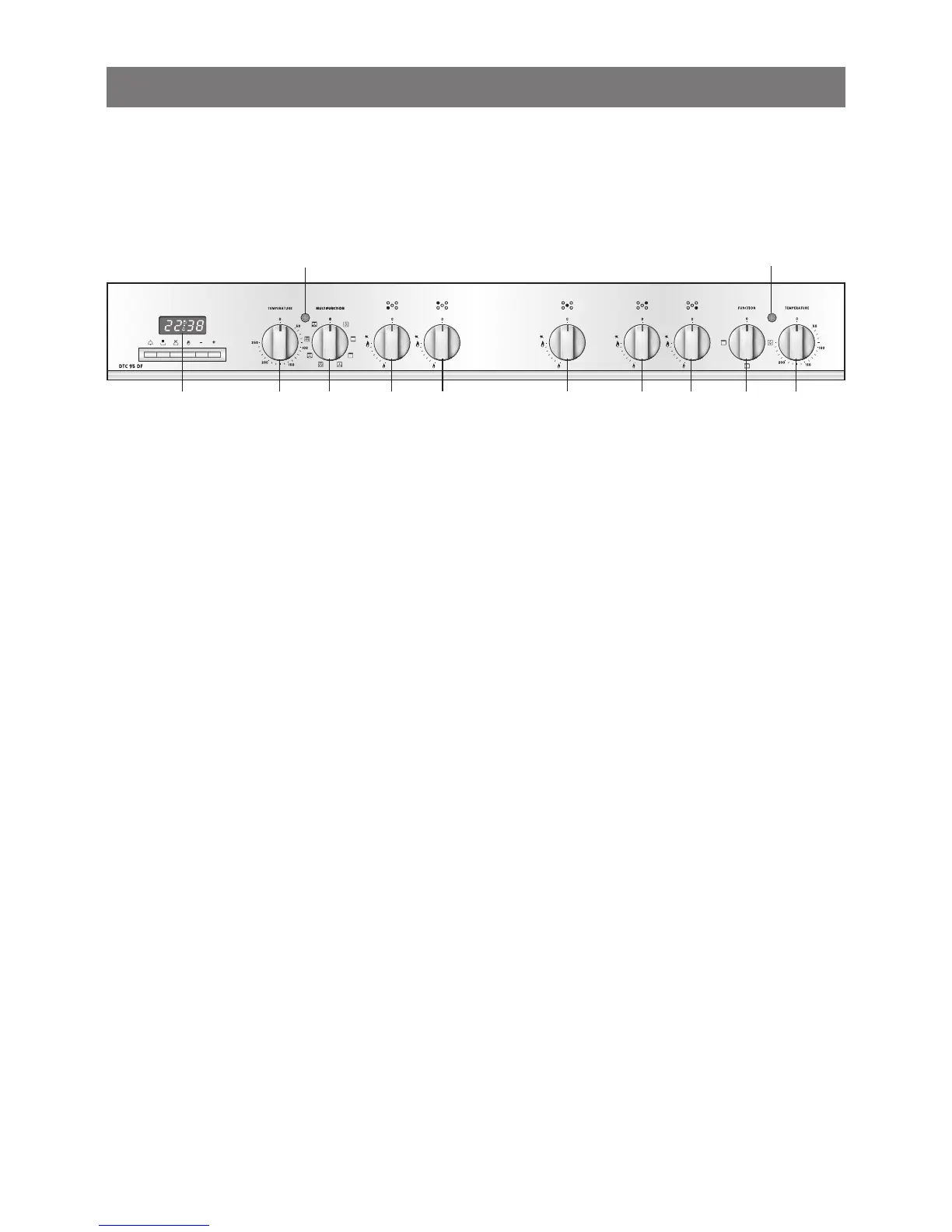

Fig. 2.1
6
Control panel
2
2
Please note: This appliance incorporates a safety cooling fan which you will hear
operating whenever the oven or grill are in use. This fan is to reduce the external
temperature of the appliance and cool the internal components.
