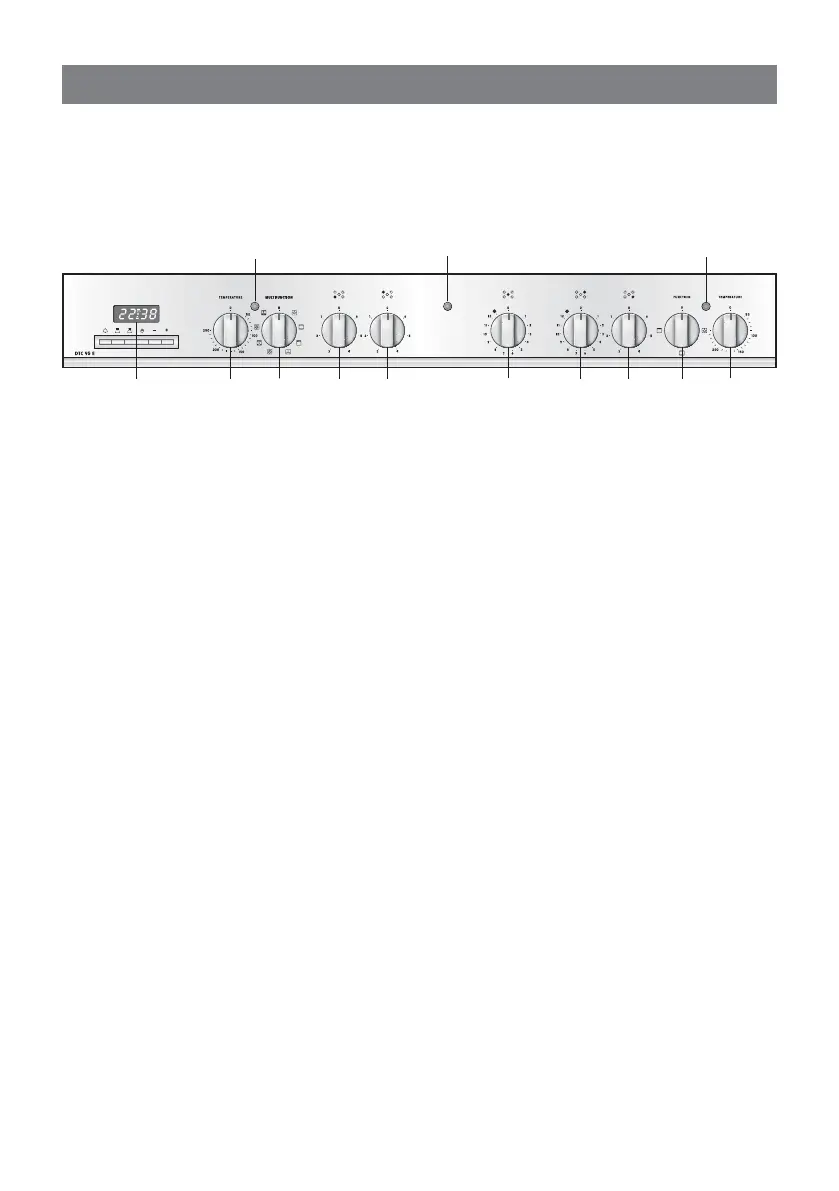

CONTROL PANEL - Controls description
1. Electronic programmer (main left oven only)
2. Multifunction main oven thermostat knob
3. Multifunction main oven switch knob
4. Front left cooking zone control knob
5. Rear left cooking zone control knob
6. Central cooking zone control knob
7. Rear right cooking zone control knob
8. Front right cooking zone control knob
9. Conventional oven switch knob
10. Conventional oven thermostat knob
Pilot lamps:
11. Main oven thermostat indicator light
12. Conventional oven thermostat indicator light
13. Ceramic hob ON indicator light
Control panel
2
2
Please note: This appliance incorporates a safety cooling fan which you will hear
operating whenever the oven or grill are in use. This fan is to reduce the external
temperature of the appliance and cool the internal components.
A
U
T
O
P
1
2
4
5
7
8
9
10
3
11 12
Fig. 2.1
6
13
