ELECTRONIC WIRESINSTRUMENTS

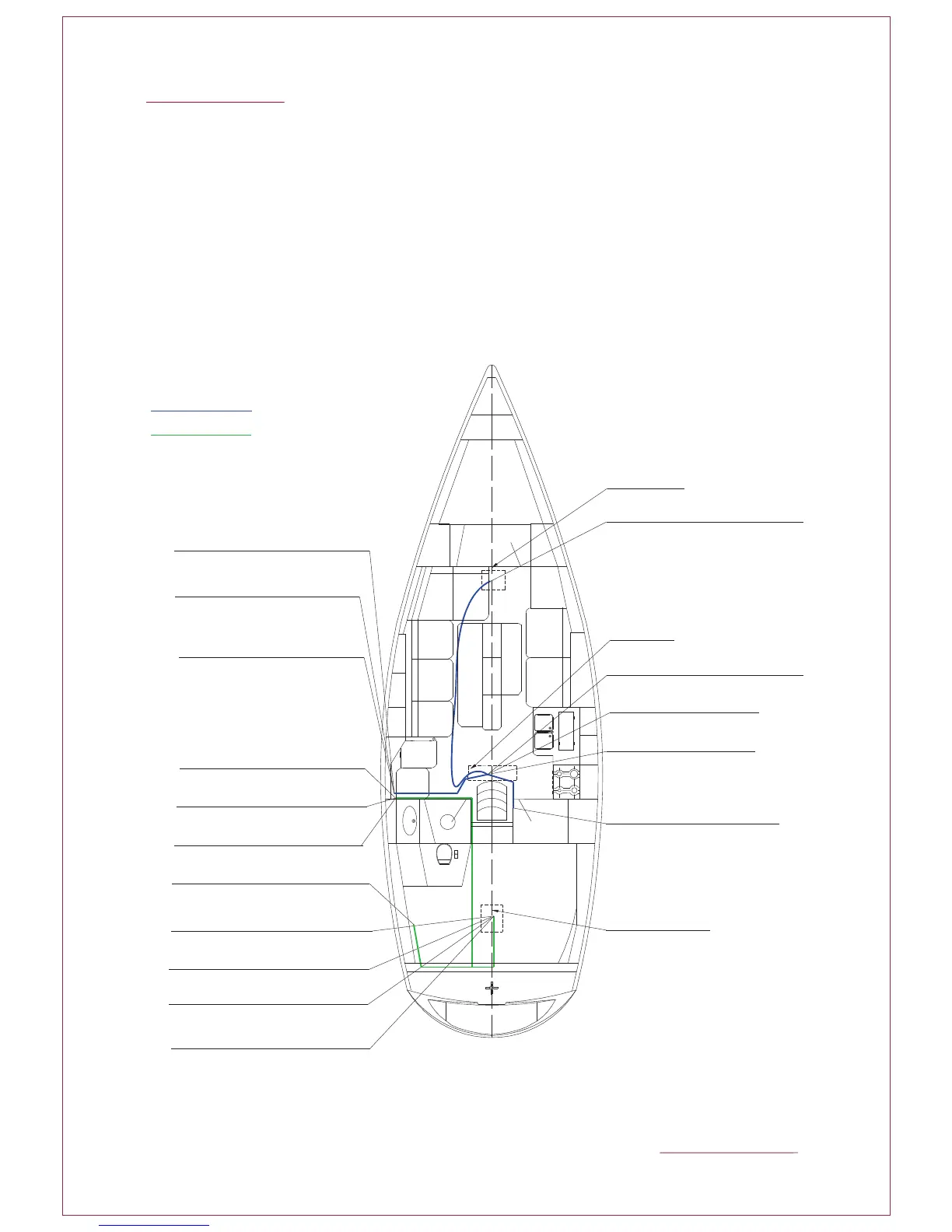

The schemes below prsesent the distibution of optional electronic appliances
wires.Theappliancesare notinstalled ontheboat instandardversion.Thewiresmake
it possible to add the electronic appliances prsesented on the schemes to the boat
equipment.
86/99
Baseofthemast
Greywire5x1
(St60Wind<->windmeter)
2
Companionway
Greywire5x1 “instruments2”
(St60Tridata<->switchboard)
2
Greywire5x1 “instruments3”
(ST60Tridata<->switchboard)
2
Greywire5x1
(ST60Wind<->windmeter)
2
Greywire2x0.7 “NMEA”
(VHF<->switchboard)
2
Steerningpedestal
wiresinthedeck
wiresinthehull
wire -option
Greywire5x1 “instruments2”
(ST60tridata<->switchboard)
2
Greywire5x1 “instruments3”
(ST60tridata<->switchboard)
2
Greywire2x07 “NMEA”
(VHF<->switchboard)
2
Greywire5x1 “instruments1”
(C70<->switchboard)
2
Greywire2x07
“NMEA” (VHF<->switchboard)
2
Greywire3x1
“seatalk”(C70<->switchboard)
2
Greywire3x1 “seatalk”
(C70<->smartpilot)
2
Greywire5x1instruments1
(C70<->switchboard)
2
Greywire2x0.7 “NMEA”
(VHF<->switchboard)
2
Greywire3x1 “seatalk”
(C70<->smartpilot)
2
switchboard
Greywire2x0.7 “NMEA”
(VHF<->switchboard)
2
