P/N XG0511
Page 5
Hotshot Gas Fireplace Insert
Installation
Installing the Face Plate, Trim
and Louvres

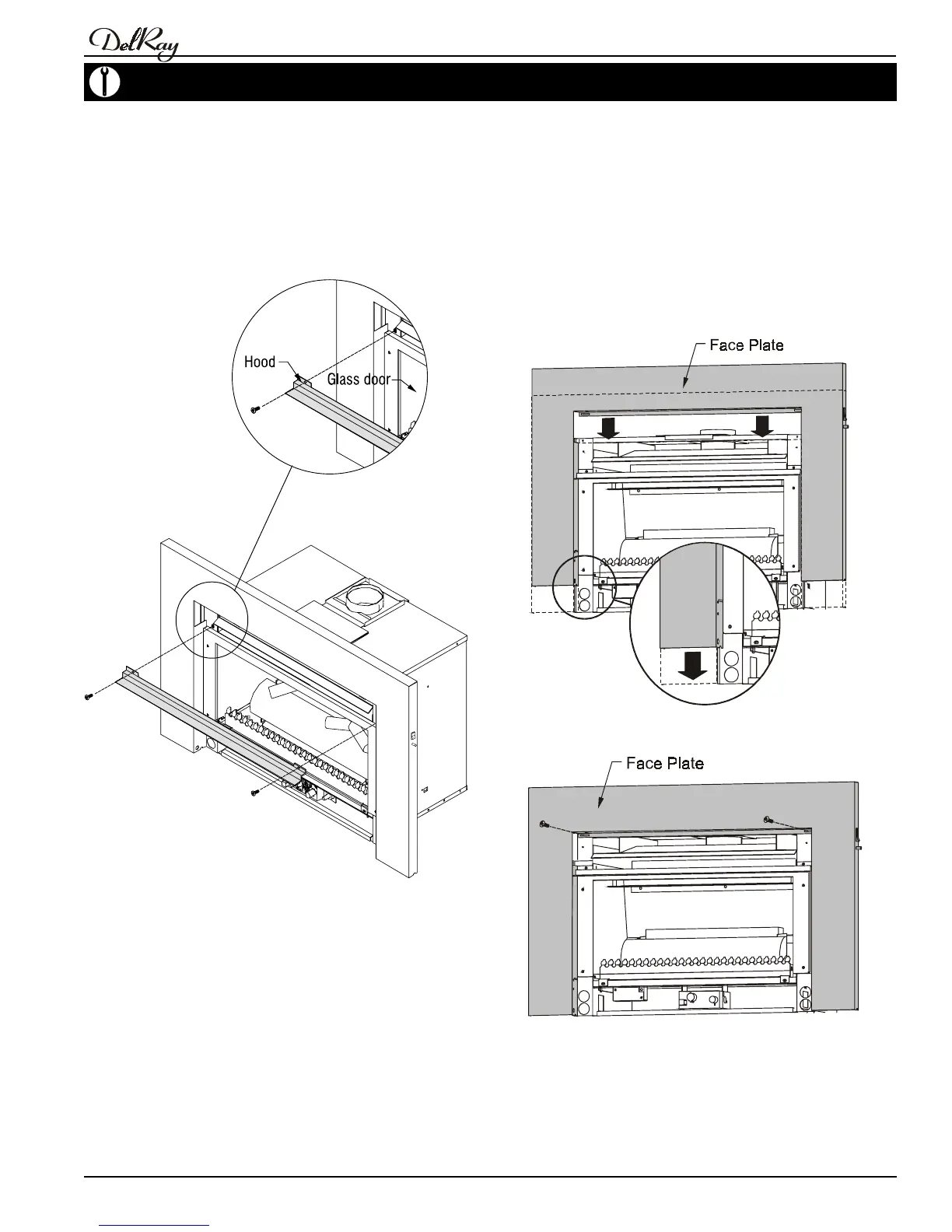

Step 1. Install the Face Plate
n Slide the face plate down from the top of the fireplace. Ensure
that the face plate is inside of fireplace side rail as shown in
figure 6a.
n Attach the face plate by installing two screws into the top pilot
holes as shown in figure 6b.
n Do not install screws at bottom of face plate until face plate trim
is installed.
Figure 6b. Fixing the face plate in position.
Installing the Hood
For proper operation of your fireplace, this hood must be
installed.
n Line the hood up against the two threaded holes located just
above the top of the glass door.
n Attach the hood using the screws provided.
Figure 5. Installing the fireplace hood.
Figure 6a. Installing the Hotshot's one-piece face plate.
