Page 8
Hotshot Gas Fireplace Insert
P/N XG0511
Installation
2. Unpack the logs. Be sure to handle the logs carefully, as they
are very fragile.
3. Place the Back log onto the back log rest as shown below in
figure 12. The log has lip on the bottom which fits into the slot
on the log rest.
4. Place the Front log onto the front log rest as shown in figure
12. Center the log from side to side, and push it against the
back of the log rest. Carefully push the log onto the metal
spikes on the log rest.
5. Place the top logs in position as shown in figures 13 and 14.
5. Start the fireplace. If the flame appears satisfactory, replace
the glass door and door cover.

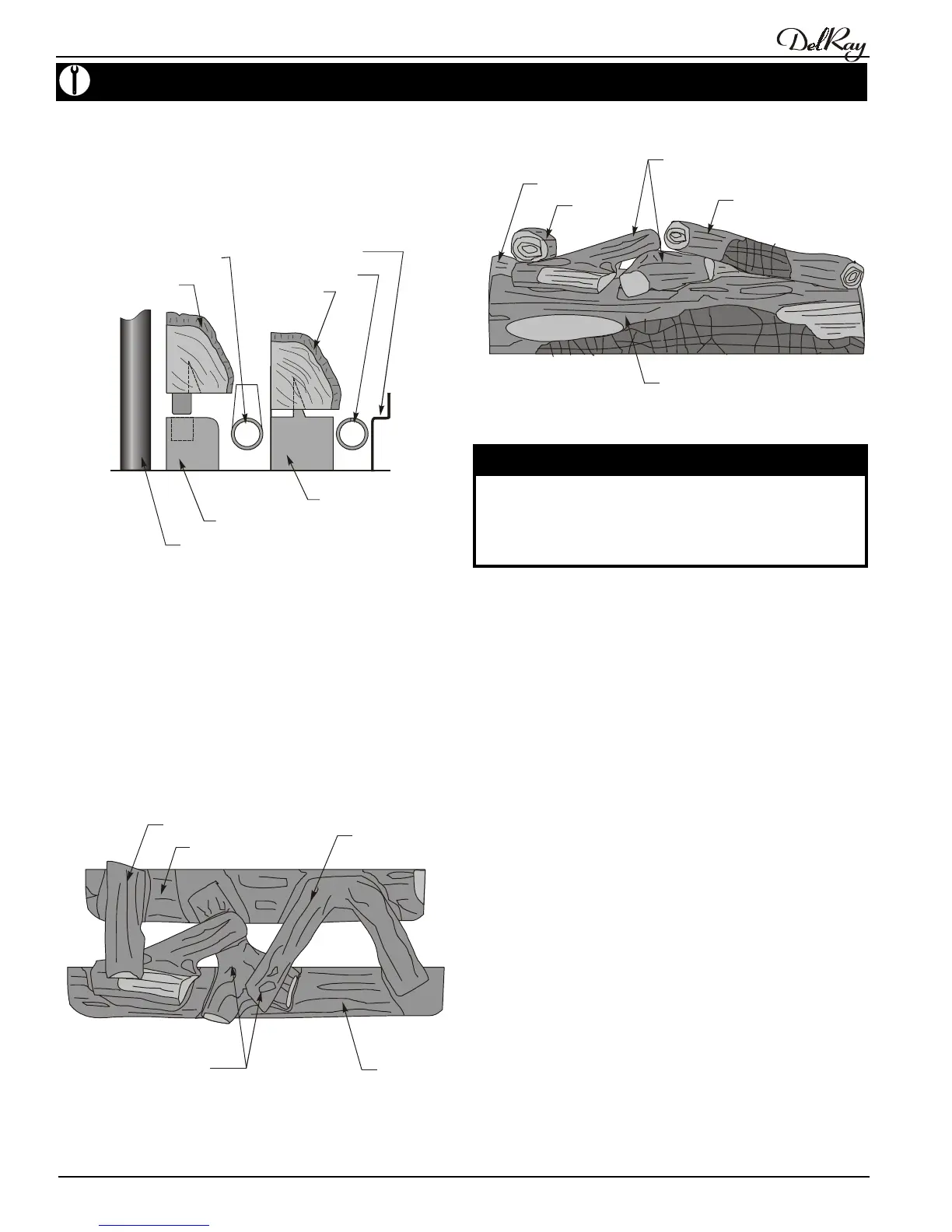

Figure 12. Positioning for the top logs ('C' and 'D' ).
Installing the Log Set
Installing the Logs:
The double burner Hotshot is supplied with a six (6) piece fibre
log set. Unpack the logs and handle them very carefully.
1. Remove the door cover and the glass door.
Back log
Left log
Right log
Front log
Center logs
Figure 14. Log placement as seen from the front of the stove.
NOTES:
n
If the logs are not placed properly, excessive sooting will result.
n The surface of the logs will crack due to the heat from the
flames. This is a normal occurance.
Back log
Left log
Right log
Front log
Center logs
Figure 13. Proper placement (top view).
Back log
Front log rest
Back log rest
Heat exchanger tubes
Front log
Front burner tube
Back burner tube
Ember tray
