Chapter 3 Connections and Wiring
3-60 Revision January 2011

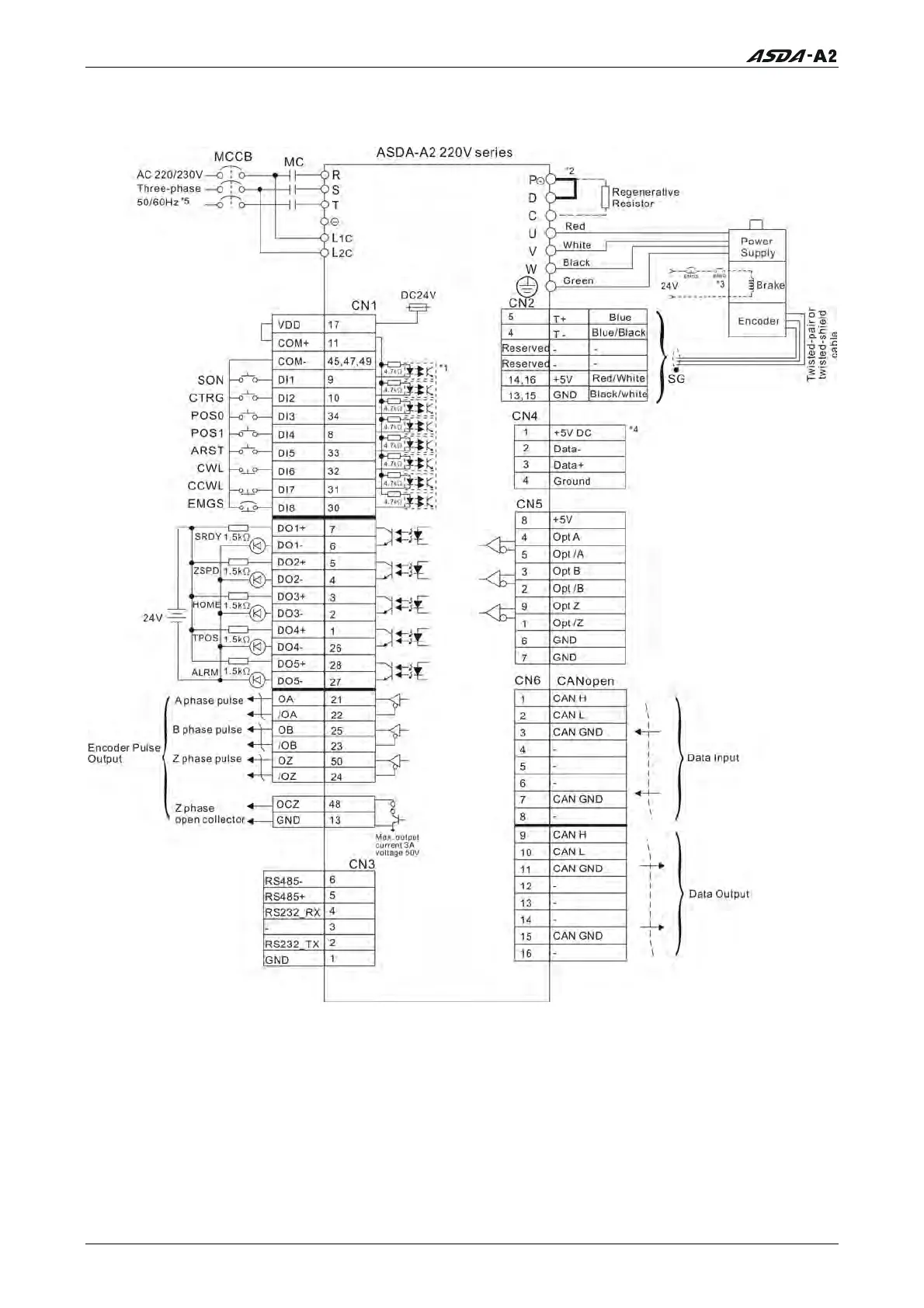

3.11.5 CANopen Communication Mode
Please note:
*1 Please refer to C9 ~ C12 wiring diagrams (SINK / SOURCE mode) in section 3.4.4.
*2 400W and below drives do not provide built-in regenerative resistor.
*3 The coil of brake has no polarity.
*4 For USB connection. It is used to connect to personal computer or notebook.
*5 Single -phase connections are for servo drives 1.5kW and below only.
