Chapter 6 Control Modes of Operation
P1 - 03
AOUT Pulse Output Polarity Setting Address: 0106H, 0107H
Default: 0 Related Section:
Applicable Control Mode: ALL Section 3.3.3
Unit: N/A
Range: 0 ~ 13
Data Size: 16-bit
Display Format: Hexadecimal

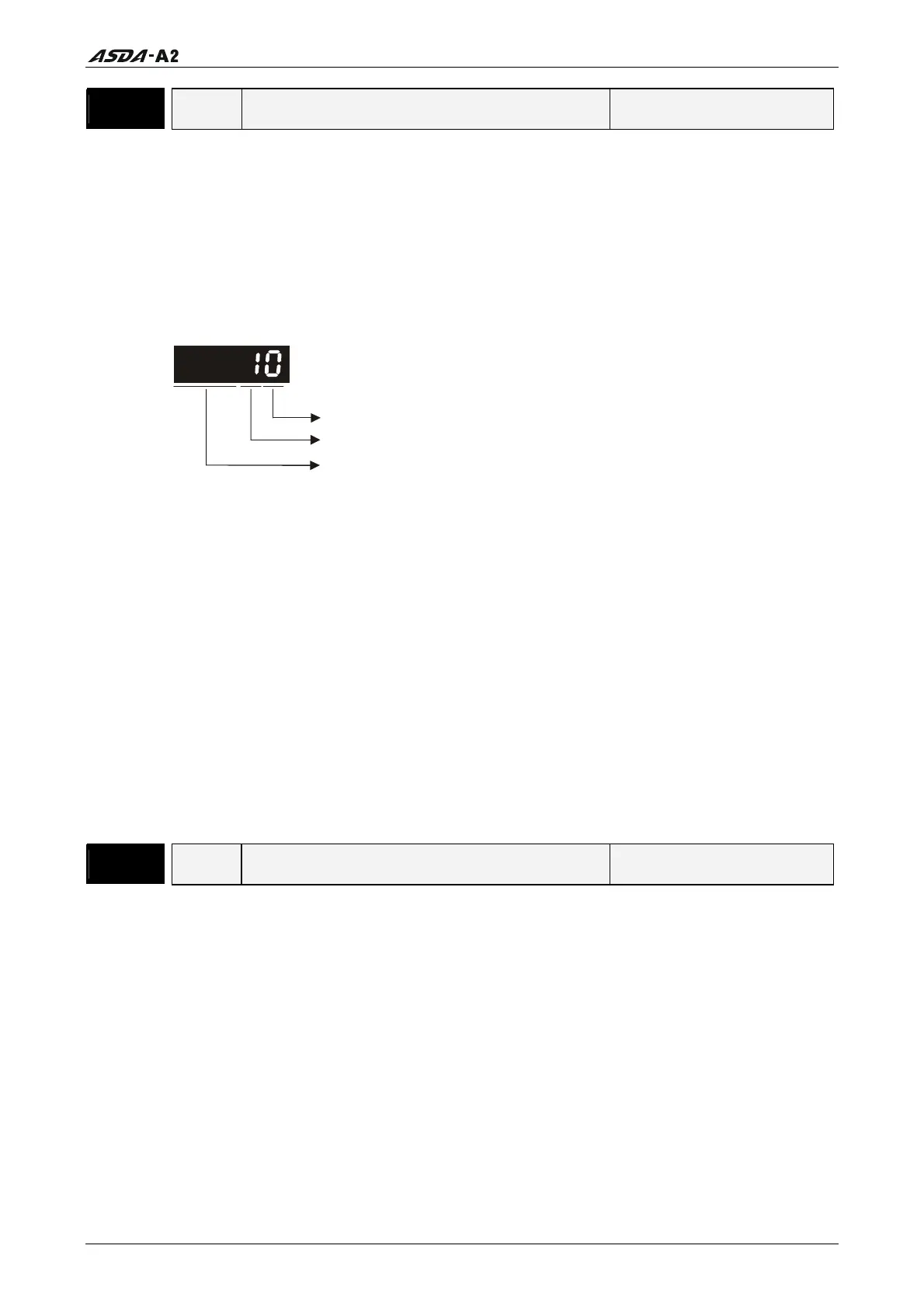

Settings:
not used
B
This parameter is used to determine the polarity of analog monitor outputs and
position pulse outputs. The analog monitor outputs can be configured with
different polarity individually, but the position pulse outputs have to be each with
the same polarity.
A: Analog monitor outputs polarity
0: MON1(+), MON2(+)
1: MON1(+), MON2(-)
2: MON1(-), MON2(+)
3: MON1(-), MON2(-)
B: Position pulse outputs polarity
0: Forward output
1: Reverse output
P1 - 04
MON1 Analog Monitor Output Proportion 1 (CH1)
Address: 0108H, 0109H
Default: 100 Related Section:
Applicable Control Mode: ALL Section 6.4.4
Unit: % (full scale)
Range: 0 ~ 100
Data Size: 16-bit
Display Format: Decimal
Revision January 2011 6-55
