Chapter 8 Servo Parameters
Revision January 2011 8-43

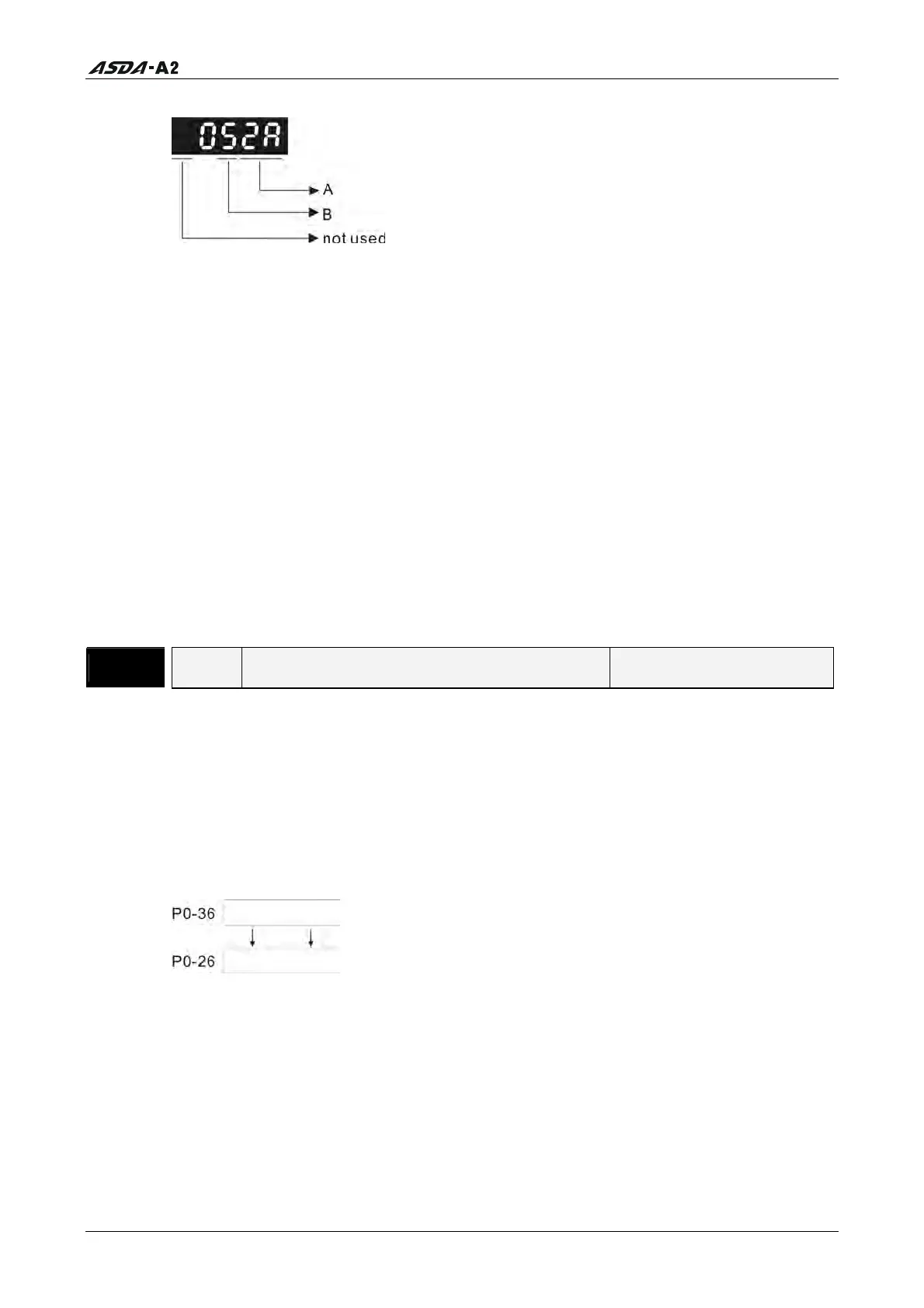

A: Parameter group code in hexadecimal format
B: Parameter number in hexadecimal format
For example:
If the desired read and write parameter number is P2-06, please set P0-35 to 0206. If
the desired read and write parameter number is P5-42, please set P0-35 to 052A, and
vise versa.
When the users want to read and write the value of the parameter P1-44 (32-bit
parameter) via P0-25, please set P0-35 to 0x012C012C through communication setting
or the keypad. The the value of the parameter P1-44 will be displayed by P0-25.
When the users want to read and write the values of the parameters P2-02 (Position
Feed Forward Gain, 16-bit parameter) and P2-04 (Proportional Speed Loop Gain, 16-bit
parameter) via P0-25, please set P0-35 to 0x02040202 through communication setting
or the keypad. The the values of the parameters P2-02 and P2-04 will be displayed by
P0-25.
P0 - 36 MAP2A Block Data Read / Write Register 2 (for P0-26)
Address: 0048H, 0049H
Default: 0x0 Related Section:
Applicable Control Mode: ALL Section 4.3.5
Unit: N/A
Range: determined by the communication address of the designated parameter
Data Size: 32-bit
Display Format: Hexadecimal
Settings:
Refer to P0-35 for explanation.
