Delta Electronics ASDA-A2 Series

Chapter 3 Connections and Wiring
3-6 Revision January 2011

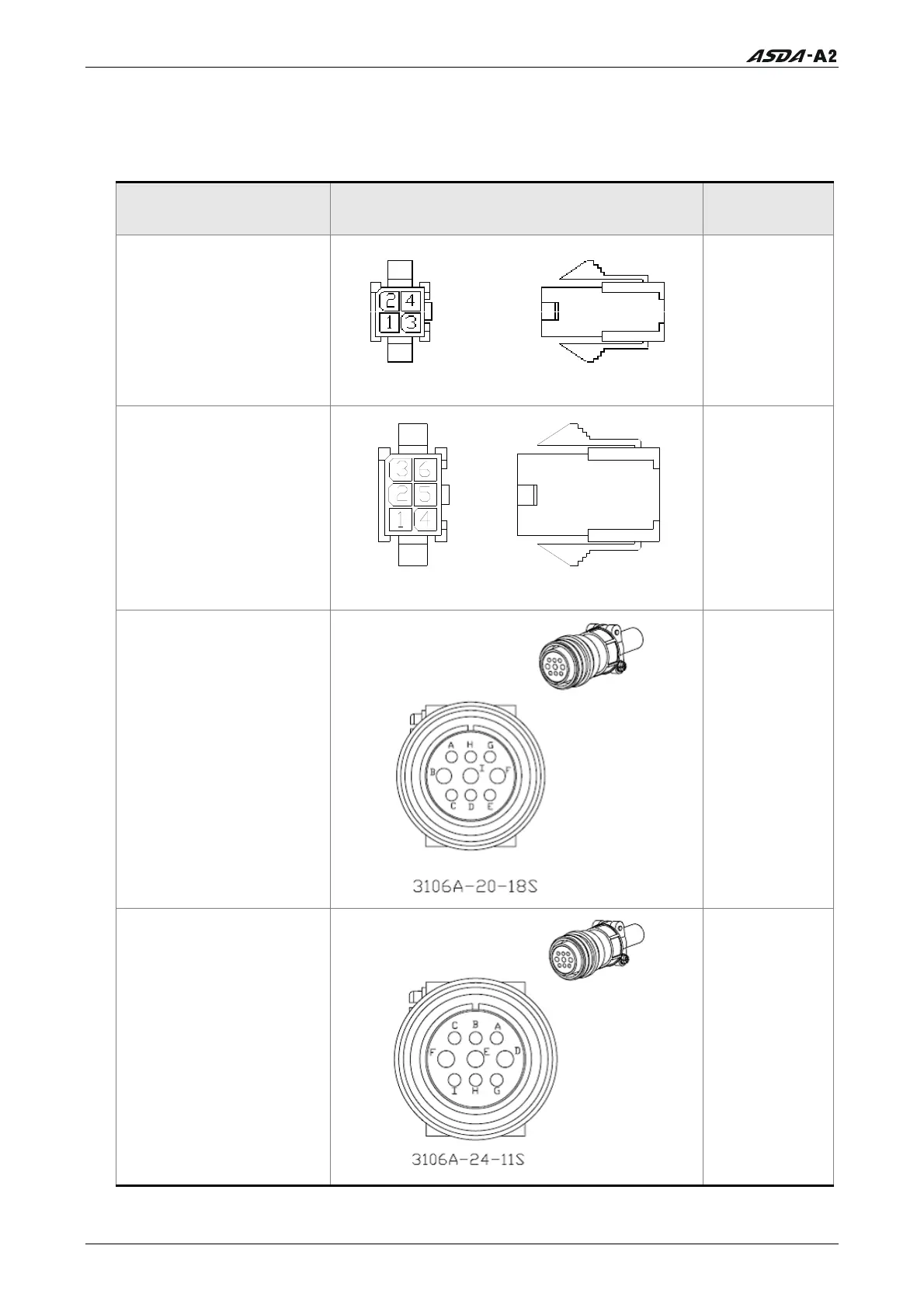

3.1.4 Motor Power Cable Connector Specifications
The boxes () in the model names are for optional configurations. (Please refer to section
1.2 for model explanation.)
Motor Model Name U, V, W / Electromagnetic Brake Connector
Terminal
Identification
ECMA-C10401S (100W)
ECMA-C10602S (200W)
ECMA-C10604S (400W)
ECMA-C108047 (400W)
ECMA-C10807S (750W)
HOUSING: JOWLE (C4201H00-2*2PA)
A
ECMA-C10401S (100W)
ECMA-C10602S (200W)
ECMA-C10604S (400W)
ECMA-C108047 (400W)
ECMA-C10807S (750W)
* : with brake
HOUSING：JOWLE (C4201H00-2*3PA)
B
ECMA-G11303S (300W)
ECMA-E11305S (500W)
ECMA-G11306S (600W)
ECMA-G11309S (900W)
ECMA-C11010S (1000W)
ECMA-E11310S (1000W)
ECMA-E11315S (1500W)
ECMA-C11020S (2000W)
ECMA-E11320S (2000W)
C
ECMA-E11820S (2000W)
ECMA-E11830S (3000W)
ECMA-F11830S (3000W)
ECMA-F11845S (4500W)
ECMA-F118553 (5500W)
D
