Chapter 3 Connections and Wiring
Revision January 2011 3-7

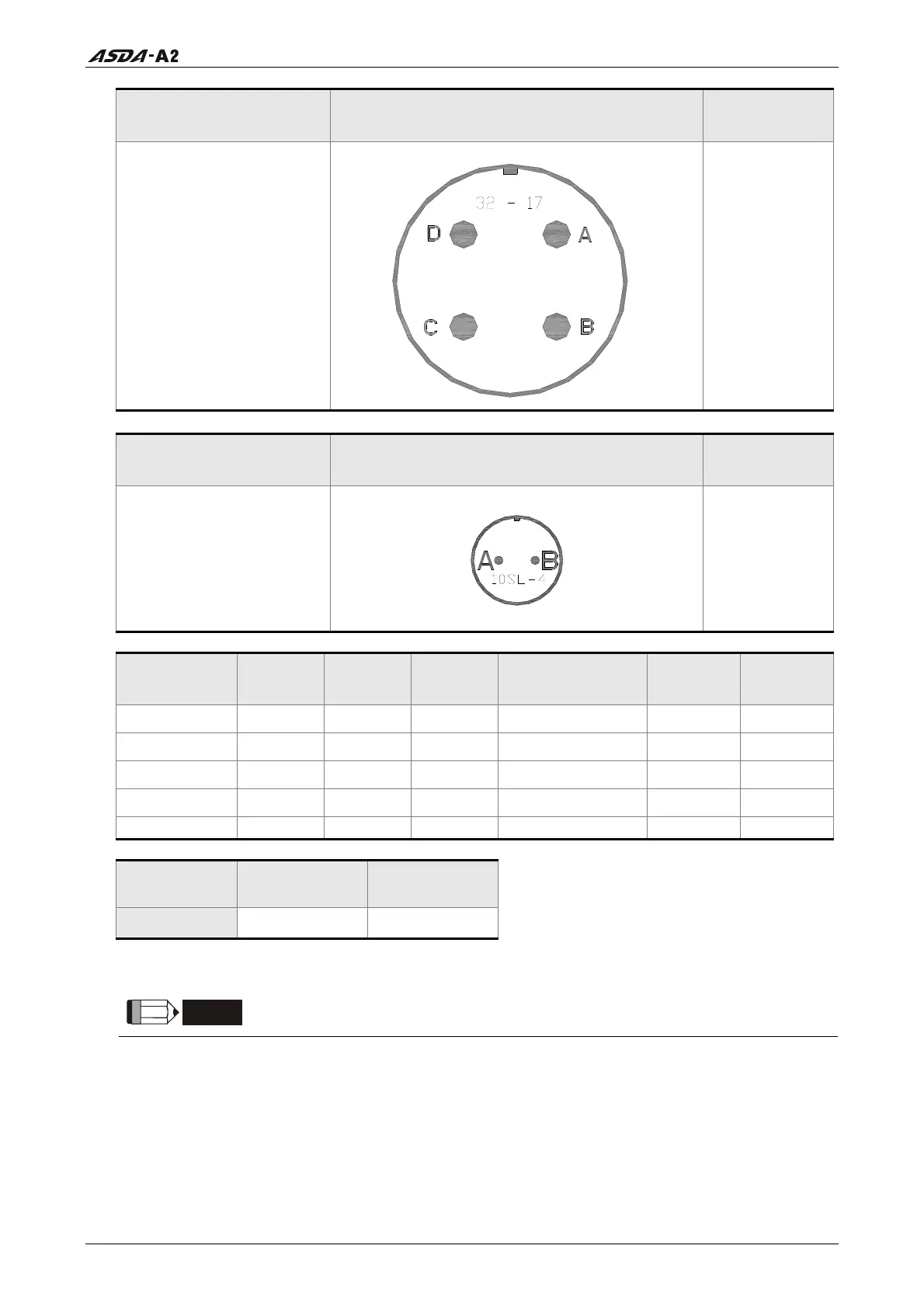

Motor Model Name U, V, W / Electromagnetic Brake Connector
Terminal
Identification
ECMA-F11855ï‚£3 (5500W)
ECMA-F11875ï‚£3 (7500W)
E
Motor Model Name U, V, W / Electromagnetic Brake Connector
Terminal
Identification
ECMA-F21855ï‚£3(5500W)
ECMA-F21875ï‚£3(7500W)
F
Terminal
Identification
U
(Red)
V
(White)
W
(Black)
CASE GROUND
(Green)
BRAKE1
(Yellow)
BRAKE2
(Blue)
A 1 2 3 4 - -
B 1 2 4 5 3 6
C F I B E G H
D D E F G A B
E A B C D - -
Terminal
Identification
BRAKE1 BRAKE2
F A B
NOTE
1) The coil of brake has no polarity. The names of terminal identification are BRAKE1 (Yellow)
and BRAKE2 (Blue).
2) The power supply for brake is DC24V. Never use it for VDD, the +24V source voltage.
